Details:

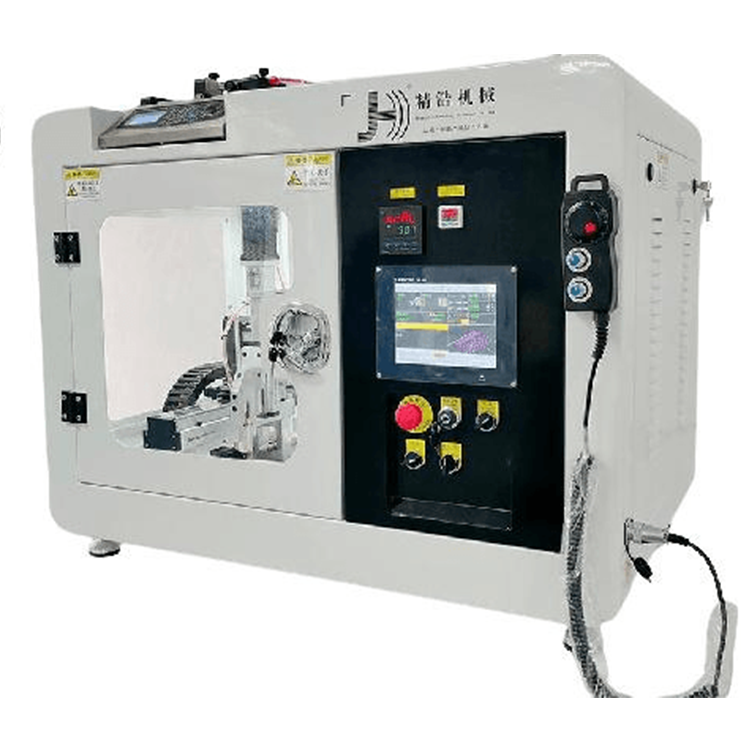

An ultrasonic spray equipment is a small to medium-sized ultrasonic spray device, typically equipped with a 60KH2 ultrasonic nozzle. Depending on the spray requirements, nozzles are available in types such as converging, diverging, and spiral. The entire system is controlled in real-time by a new generation motion system, utilizing G-code programming, with no limitations on the spray path. The working principle of the ultrasonic nozzle is to convert high-frequency sound waves into mechanical energy, which then transforms into liquid, creating standing waves. As the liquid leaves the atomizing surface of the nozzle, it is broken down into a fine mist composed of uniformly sized micrometer droplets. Unlike pressure nozzles, ultrasonic nozzles do not use high pressure to force the liquid through small holes to produce a mist. The liquid is injected into the center of the nozzle through an opening with a relatively large orifice, without pressure, and is atomized due to the ultrasonic vibration within the nozzle. Each ultrasonic nozzle operates at a specific resonance frequency, which determines the median size of the droplets. For example, 60 nozzles can produce an intermediate droplet size of 20 micrometers (when spraying water). The higher the frequency, the smaller the intermediate droplet size.

The company assembles talents in mechanical design and specialized professionals in ultrasonic application technology design, while closely tracking and introducing new technologies. Under the stringent management of the ISO9001 quality system, we adhere to the philosophy of "serving industry and creating value."Our philosophy of "industrialized decentralized processes offering more possibilities" is to strive to perfection in every product. The reliable quality of "Jinghao" products has been widely recognized by users, and our professional and attentive service is even more so.It has earned the trust of users. The company's developed and produced series of circulating ultrasonic products have officially obtained the EU CE certificate, providing strong support for the sales and market expansion of the company's ultrasonic products both domestically and internationally.Enhanced safety quality and recognition, further boosting the company's overall competitiveness in the ultrasonic industry and international markets.
