I. Product Details

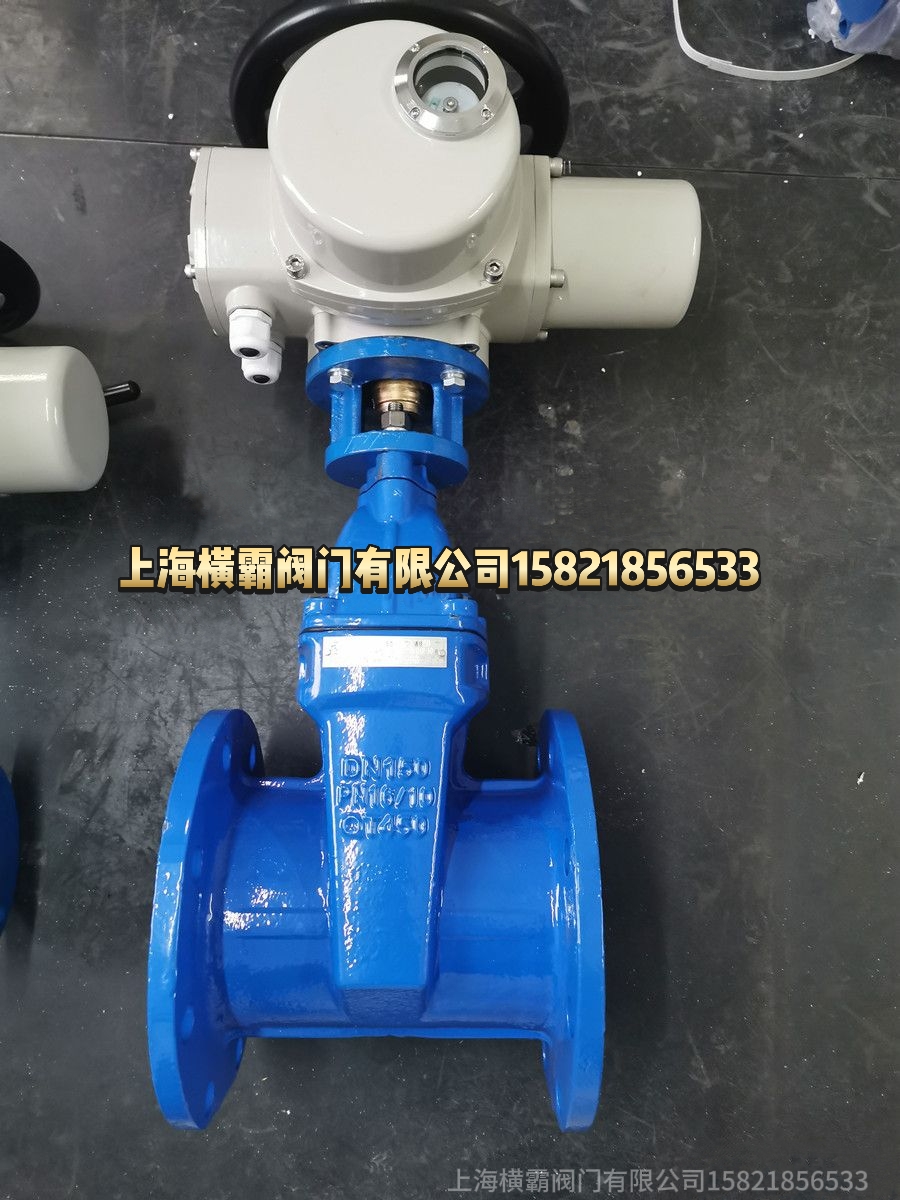

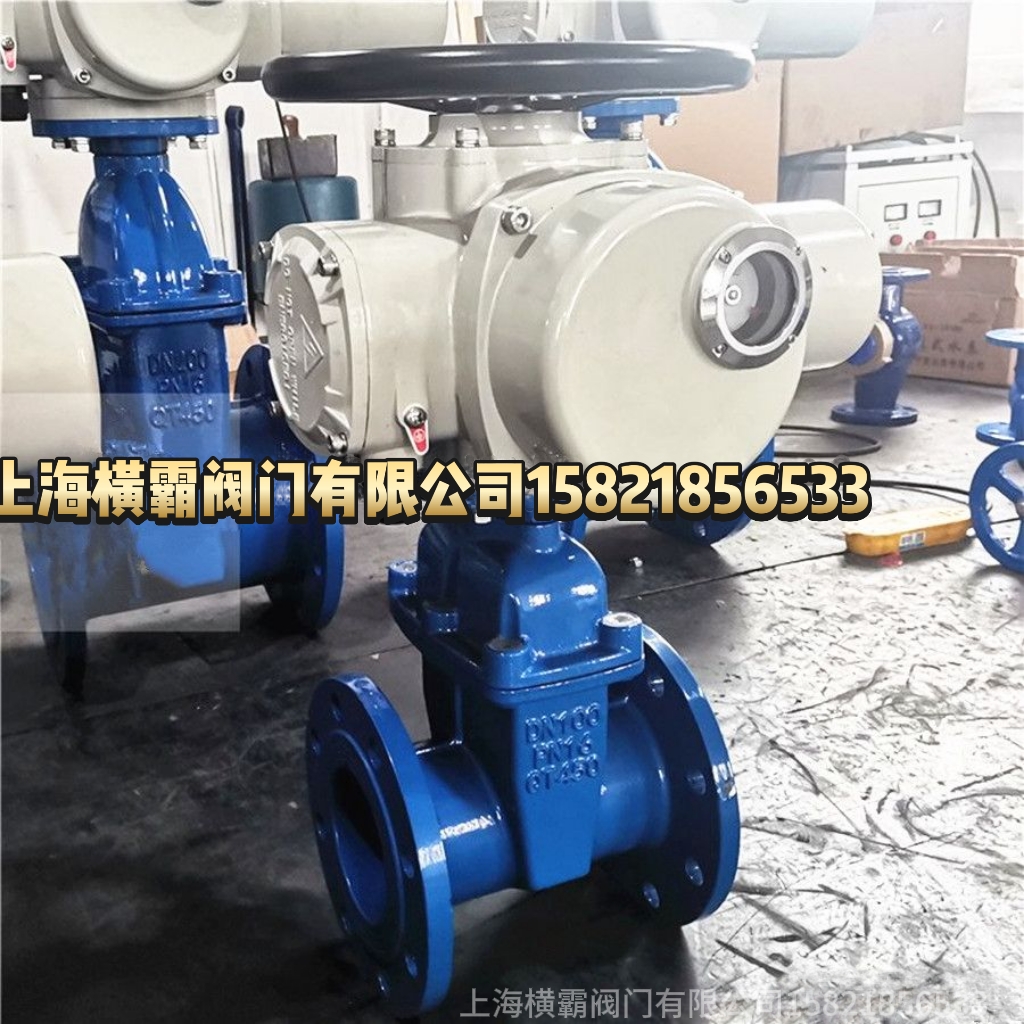

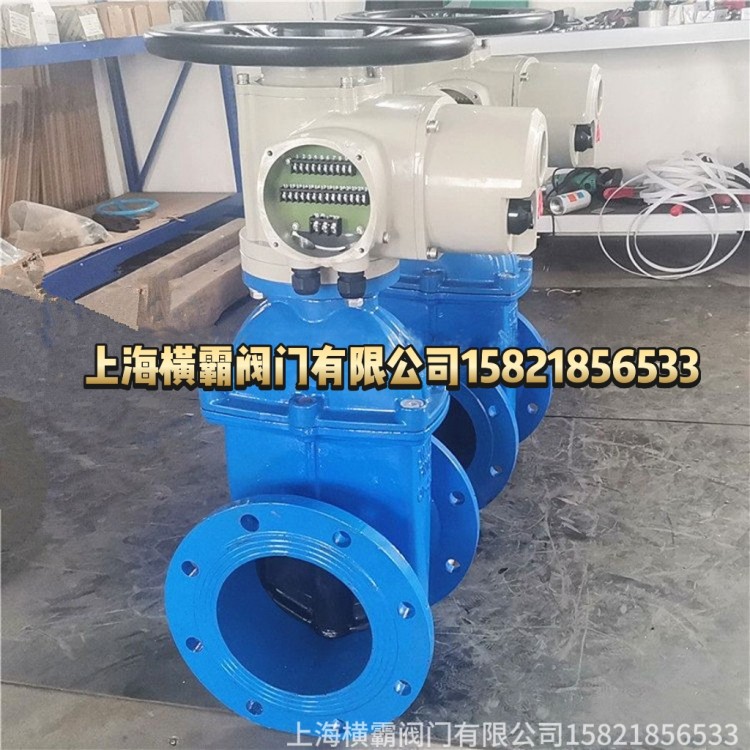

Electromagnetic gate valves, which are operated by an electric actuator to control the opening and closing of the valve. The structure is divided into two parts: the upper part is the electric actuator, and the lower part is the gate valve. The speed of the valve's opening and closing action can be flexibly adjusted, offering the advantages of simple structure and easy maintenance.
In terms of operating principle, electric gate valves typically connect the electric actuator to the valve, forming a complete electric valve after installation and debugging. It operates using electricity, driving the valve through the electric actuator to achieve opening, closing, or adjustment of the valve, ultimately controlling the on/off or adjustment of the pipeline medium.
This series of electric gate valves covers a wide range of specifications and parameters. The valve port diameter ranges from DN50 to DN1800, accommodating different pipe sizes; the medium pressure is between PN0.6 and 1.6MPa, meeting various pressure requirements for different operating conditions; the valve body is made of spheroidal cast iron, gray cast iron, etc., ensuring the quality and performance of the valve.
RRHX Electric Elastic Seat Sluice Valve (Clear Stem), RVHX Electric Enclosed Stem Elastic Seat Sluice Valve, Electric Soft Sealing Sluice Valve(like Z945X Electric Submerged Ball Valve with Soft Sealing, Z941X Electric Ball Valve with Soft Sealing [Exposed Stem]), these electric ball valves can be equipped with various electric actuators for remote and automatic control, featuring sensitivity, reliability, and easy installation. They are widely used in water supply, wastewater, construction, petroleum, chemical, food, and energy fluid pipeline systems as regulating and shutoff devices.
II. Product Features
III. Main Components Material
| Serial Number | Part Name | Material |
|---|---|---|
| 1 | Valve body | Gray Cast Iron, Ductile Cast Iron, Cast Steel |
| 2 | Gate valve | QT Ductile Iron Pipe with EPDM or Nitrile Rubber Coating |
| 3 | Valve Stem | 45 Steel, 40Cr Stainless Steel |
| 4 | Valve cover | Gray Cast Iron, Ductile Cast Iron, Cast Steel |
| 5 | Bracket | Gray cast iron, ductile iron, cast steel |
| 6 | Electric Actuator | DZW series multi-revolution electric valve actuators |
Section 4: Main Connection Dimensions
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| H (Fully Open) | 732 | 773 | 820 | 870 | 915 | 1003 | 1110 | 1263 | 1630 | 1550 | 1610 | 1900 | 1938 | 2120 |
V. Detailed Specifications
| Category | Details |
|---|---|
| Model | Z945X - 10/16Q/C/P etc. |
| Connection Type | Flanges, welding, etc. |
| Material | Cast steel, stainless steel, carbon steel, etc. |
| Nominal Bore Size | DN15~DN1800mm |
| Applicable Medium | Water, steam, oil products, various highly corrosive chemicals, weak acidic and alkaline media, ammonia gas, nitrogen gas, oxygen gas, hydrogen gas, liquefied gas, air, coal gas, dust-laden gases |
| Sealed Type | Rigid sealing |
| Standard | National Standard, American Standard, German Standard, etc. |
| Appearance | Medium to large sizes |
| Flow Direction | Bidirectional |
| Drive Method | Electric, manual, etc. |
| Parts and accessories | Bolts, washers, etc. |
| Application | Control the opening, closing, and adjustment of pipeline media |
| Pressure Environment | PN1.0~32.0MPa |
| Operating Temperature | -25~+600℃ |
| Type | Direct connection |
| Control Type | Switch-type, Adjust-type, Explosion-proof, Integrated |
| Type of Protection | Outdoor type, general explosion-proof, mine explosion-proof type, etc. |
| Ingress Protection (IP) rating | IP65 |
| Power Voltage | Standard AC380V 50Hz |
| Control and feedback signals | 4-20mA DC Analog Signal |
