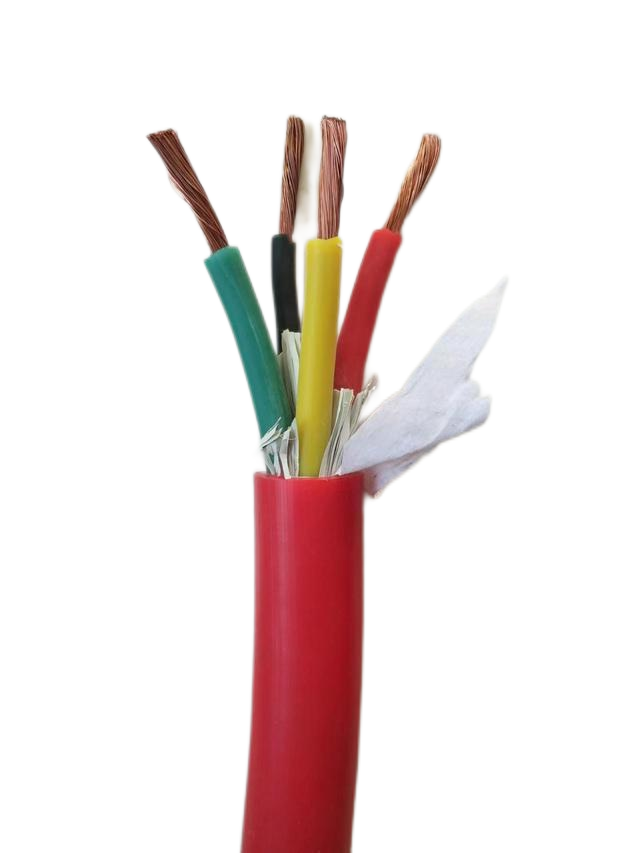

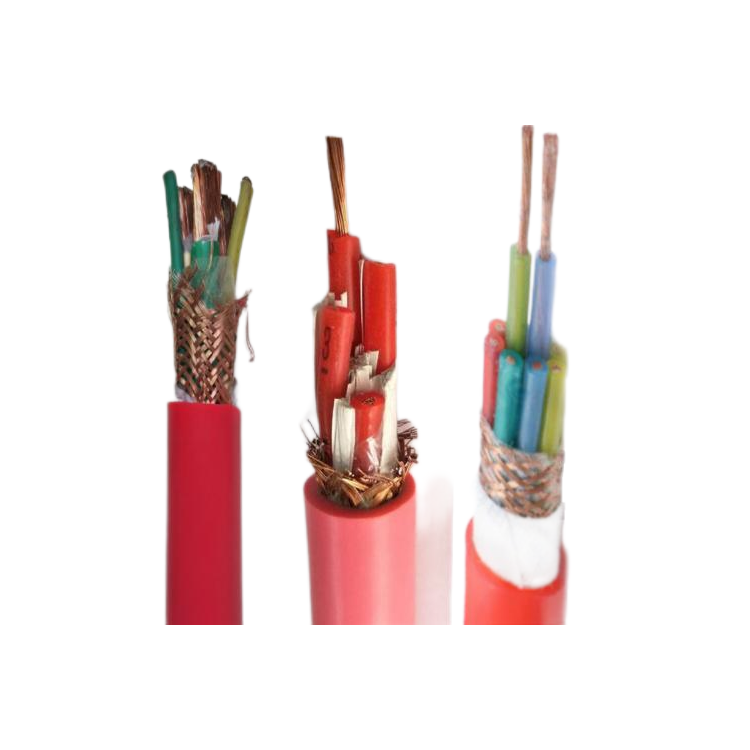

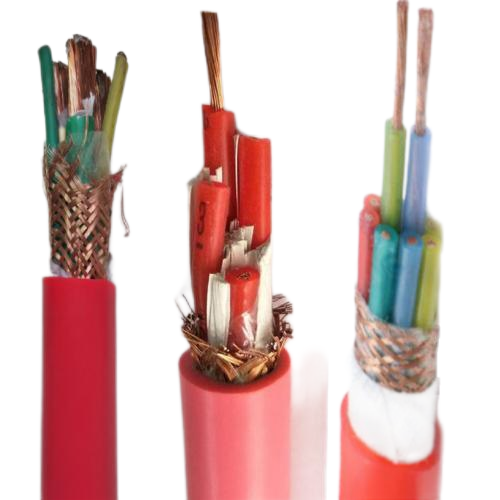

Anhui Tianming Cable Co., Ltd. -- Computer Cables - IA-JFP3VRP3 Intrinsically Safe Cable for High-Temperature Applications. Our intrinsically safe cable products are suitable for signal transmission lines in distributed systems and automated detection and control systems in hazardous environments such as chemical, petrochemical, coal mining, power, and gas engineering projects, as well as other scenarios with high explosion-proof safety requirements. This product is a low-capacitance, low-inductance cable with superior explosion-proof safety performance compared to standard cables. The shielding materials include round copper wire, copper strip, aluminum strip/plastic composite strip. The shielding provides good insulation performance; if a potential difference occurs between the shielding pairs during use, it will not affect the signal transmission quality.
Two, Features of Use:
Rated Voltage: U0/U300/500KV; High Working Temperature of Different Materials: Polyethylene insulation not exceeding 70°C, Cross-linked Polyethylene insulation 90°C, Low-smoke, halogen-free flame-retardant polyolefins 70°C; Low-smoke, halogen-free flame-retardant cross-linked polyolefins at 90°C and 125°C, Polytetrafluoroethylene (F46) insulation not exceeding 200°C; Imported Soluble Polytetrafluoroethylene (PFA) not exceeding 260°C; Very Low Environmental Temperature of Different Materials: Poly sheath: Fixed installation -40°C, Non-fixed installation -15°C; Fluoroplastic and silicone rubber sheath: Fixed installation -60°C, Non-fixed installation -25°C. Installation temperature of high-temperature-resistant cables should not be lower than -25°C. The minimum bending radius for high-temperature-resistant cables: Non-armored cables at least 6 times the cable outer diameter, copper tape shielded or steel tape armored cables at least 12 times the cable outer diameter.
Product complies with GB12666-90 standard.
Four, Product Model:
ZR-JYJVP1R 22、IA-JYPVR、IA-JYPVP、IA-JYVP、IA-JYVPR、IA-JYVRP、IA-JYPVPR、IA-JYPVRP、IA-JYPV22、IA-JYPVP22、IA-JYPVR 22、IA-JYVRP22、IA-JYVP22、IA-JYVPR 22、IA-JVPVR、IA-JVPVP、IA-JVVP、IA-JVVPR、IA-JVVRP、IA-JVPVPR、IA-JVPVRP、IA-JVPV22、IA-JVPVP22、IA-JVPVR 22、IA-JVVRP22、IA-JYVP22、IA-JYVPR 22、IA-JYP2VR、IA-JYP2VP2、IA-JYVP2、IA-JYVP2R、IA-JYVRP2、IA-JYP2VP2R、IA-JYP2VRP2、IA-JYP2V22、IA-JYP2VP2/22、IA-JYP2VR 22、IA-JYVRP2/22、IA-JYVP2/22
