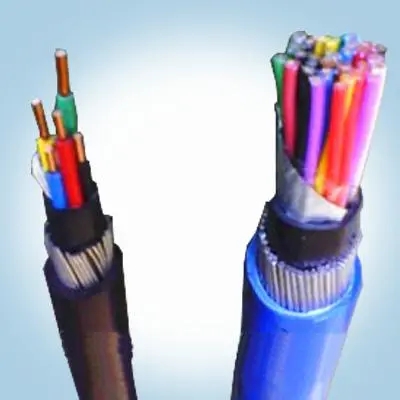

Anhui Tianming Cable Co., Ltd. --- Computer Cable - Computer Cable ZRC-DJYJP3VP3-22-19x3x1.5 sq. mm, suitable for computer cables rated at 500V and below, ideal for electronic computers and automated instruments with high requirements for anti-interference.

Two, Technical Specifications of Computer Cables:

Product Rated Voltage (U0/U): 300/500V

Long-term operating temperature: 70℃

Installation temperature shall not be below: Fixed installation -40℃, Non-fixed installation -15℃

Bend Radius: Unarmored should be less than 6 times the cable outer diameter, armored cables should be no less than 12 times the cable outer diameter.

At 20°C, after a stable charging test with a DC voltage of 500V for 1 minute, the insulation resistance should be no less than 2500MΩ·Km.

Each pair of twisted屏蔽 should not be disconnected from each other, nor should they be disconnected from the overall shield.

The cores of the cable and between the shields should withstand a 50Hz, AC 2000V voltage test for 5 minutes without puncturing.

Three, Product Execution Standard: Refer to JB/T 13486-2018

Four, Basic Models and Names Model Description:

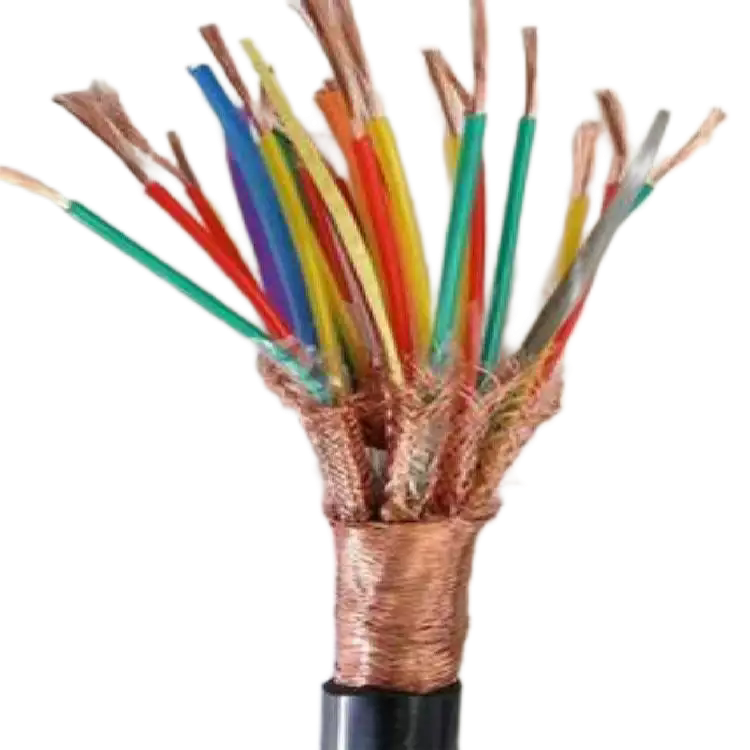

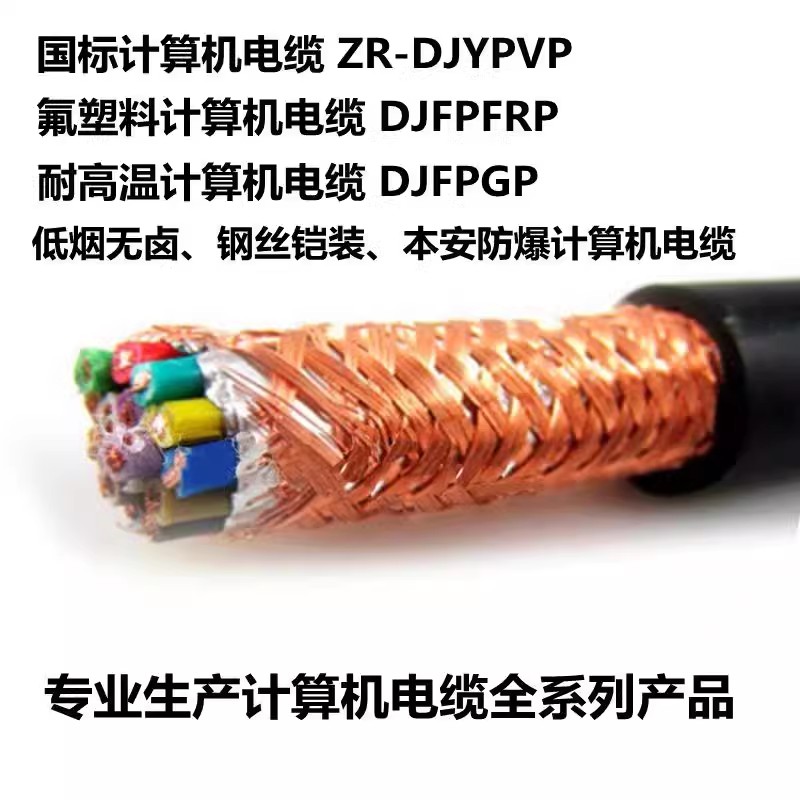

DJYPVP: Insulated PE jacketed twisted pair copper wire braided shield and overall shielded computer cable

DJYPV: Insulated Twisted Copper Wire Braided Shielded Computer Cable with Polyethylene Sheath

DJYPVPR: Polyethylene insulated twisted copper wire braid shielded and overall shielded sheathed soft computer cable

DJYPVR: Polyethylene insulated twisted copper wire braid sheathed soft computer cable

DJYVP: Polyethylene insulated, twisted copper wire braided overall shielded, computer control cable with jacket

DJYVPR: Insulated PE jacketed twisted copper wire braided overall shielded flexible computer cable
