(1) Welding Machine Cable
Product Name:
Welding Machine Cable
Product Standards:
This product is in compliance withGB5013.6-1997Rated Voltage450/750VStandard manufactured for cables with rubber insulation and below.
Application Scope:
This product is suitable for secondary side groundingFor welding machines with alternating voltage not exceeding 200V and pulsating direct current peak voltage of 400V, use secondary side wiring and connections for the welding clamp.
Application Features:
245IEC 81（YH）、245IEC 82（YHFThe long-term allowable operating temperature for the conductor of the cable type should not exceed65℃
Cable Model:
Model | Name | Laying Conditions and Requirements |
245 IEC 81 （YH） | Rubber-sheathed welding machine cable | Flexible cable for secondary side wiring of welding machines and connecting welding clamps |
245 IEC 82（YHF） | Chloroprene or other equivalent synthetic elastomer rubber sleeves for electric welding machine cables | Flexible cable used for connecting the secondary side of welding machines and the welding clamp |
Production Range
Model | Number of cores | Nominal Section Area |
YH、YHF | 1 | 10 |
1 | 16 | |
1 | 25 | |
1 | 35 | |
1 | 50 | |
1 | 70 | |
1 | 95 | |
1 | 120 | |
1 | 150 | |
1 | 185 |

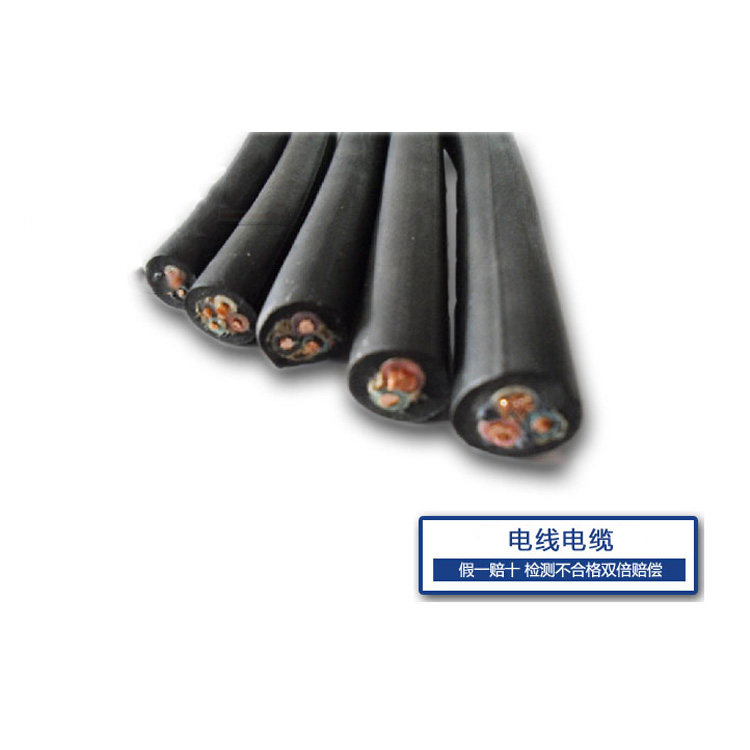

Item 2: Rubber Sheathed Soft Cable
Product Name:
Rubber sheathed flexible cable
Product Standards:
This product is as perGB5013.6-1997Rated Voltage450/750VStandard manufacturing for cables with rubber insulation and below.JB8725-1998Rated Voltage450/750VInsulating rubber flexible wires and cables and below.
Application Scope:
This product is suitable forHousehold appliances, electric tools, and various portable electrical equipment with rated voltages of 450/750V and below.
Application Features:
245IEC 81（YH）、245IEC 82（YHFThe long-term allowable operating temperature for the conductor of the cable type should not exceed65℃
Rubber Insulated Cable Model Comparison Table
Name | GB5013-1997 | GB5013-85 |
Standard strength rubber insulated soft wire | 245IEC 53（YZ） | YZ |
Standard chloroprene or other equivalent synthetic elastomer rubber-sheathed soft wire | 245IEC 57（YZW） | YZW |
Heavy-duty chloroprene or other equivalent synthetic elastomer rubber insulated soft cables | 245IEC 66（YCW） | YCW |
Rubber-insulated soft wires and cables
Model | Name |
YZ、YZW | Medium-sized rubber sheathed flexible cable |
YC、YCW | Heavy-duty rubber sheathed flexible cable |
Production Range
GB5013-1997
Model | Rated Voltage | Nominal Section | Core Count |
YZ YZW | 300/500 | 0.75~2.5 | 2~5 |
YCW | 450/750 | 1.5~240 | 1~5 |
JB8735-1998
Model | Rated Voltage | Nominal Section | Number of cores |
YZ YZW | 300/500 | 0.75~6 | 2~5 |
YCW | 450/750 | 1.5~240 | 1~5 |
(3) General Rubber Insulated Wire
Product Name:
Rated Voltage300/500VRubber-insulated fixed laying electrical wire
Product Standards
This product is in accordance withJB1601-93Rated Voltage300/500VStandard manufacturing of rubber-insulated fixed laying wires.
Application Scope:
This product is suitable for alternating rated voltageU0/UPlease provide the Chinese content to be translated.300/500VFixed copper or aluminum-core rubber-insulated wires for electrical equipment and lighting fixtures.
Application Features:
The long-term allowable operating temperature for the wire conductor should not exceed65℃。
Model and Name:
Model | Name | Primary Application |
BXF | Copper-core rubber-insulated chloroprene or equivalent synthetic rubber compound sheathed wire | Suitable for indoor surface mounting and outdoor, especially in cold regions |
BLXF | Aluminum-core rubber-insulated chloroprene or equivalent synthetic rubber compound sheathed wire | |
BX | Copper-core rubber-insulated cotton yarn or equivalent fiber braided wire | For fixed installation, suitable for surface or concealed wiring |
BLX | Aluminum-core rubber-insulated cotton yarn or equivalent fiber braided wire | |
BXR | Copper-core rubber-insulated cotton yarn or equivalent fiber-wrapped wire | Indoor installation; use for softer requirements |
Model | Rated Voltage | Core Count | Nominal Section |
BXF | 300/500 | 1 | 1.5~240 |
BLXF | 300/500 | 1 | 2.5~240 |
BX | 300/500 | 1 | 1.5~240 |
BLX | 300/500 | 1 | 2.5~240 |
BXR | 300/500 | 1 | 0.75~240 |
(Miner's Rubber Sheathed Flexible Cable)
Product Name:
Mobile flame-retardant rubber magnetic soft cable for coal mine use
Application Scope:
This product is supplied for mobile electrical equipment in coal mines and for matching coal mining machinery.
Product Standards:
Model | Standard of Execution |
MY、MYQ、MYP、MC、MCP、MZ | MT 818 - 1999 |
Model and Name
Model | Name |
MY | Mobile rubber sheathed flexible cable for coal mine use |
MYQ | Mobile lightweight rubber sheathed soft cable for coal mines |
MYP | Mobile sheathed flexible cable for coal mine use |
MC | Coal mining machine rubber sheathed flexible cable |
MCP | Coal mining machine sheathed rubber sleeve flexible cable |
MZ | Coal mine electric drill rubber sheathed flexible cable |
Utilize features
Model | MYQ、MZ | MY、MYP、MC、MCP |
Rated Voltage U0/U | 0.3/0.5KV | 0.38/0.66KV |
Cable long-term allowable operating temperature | 65℃ | |
Minimum bend radius of cable | 6D | |
Production Range
Model | Core Count | Rated Voltage | Nominal Section | ||
Power wire core | Ground wire core | Control wire | |||
MY | 1 | 0.38/0.66 | 50~150 | — | — |
3+1 | 3*4~3*70 | 1*4~1*25 | — | ||
MYP | 3+1 | 0.38/0.66 | 3*4~3*70 | 1*4~1*25 | — |
MYQ | 2、3、4、5、7、12 | 0.3/0.5 | 1.0~2.58 | — | — |
MC | 3+1+3 | 0.38/0.66 | 3*16~3*50 | 1*4~1*10 | 3*2.5~3*4 |
MCP | 3+1+3 | 0.38/0.66 | 3*16~3*50 | 1*4~1*10 | 3*2.5~3*4 |
MZ | 3+1、3+1+1 | 0.3/0.5 | 2.5~4 | 2.5~4 | 2.5~4 |
(Five) Waterproof rubber-sheathed flexible cables
Application Range:
This product is suitable for alternating500VFor transmission of electrical power on diving motors and below.
Usage Features:
The long-term allowable operating temperature for the wire conductor should not exceed65℃。
Model and Name:
Model | Name |
JHS | Waterproof rubber sheathed flexible cable |
Production Range
Model | Core Count | Nominal Section |
JHS | 1，3 | 2.5~185 |
