(One)
Product Name

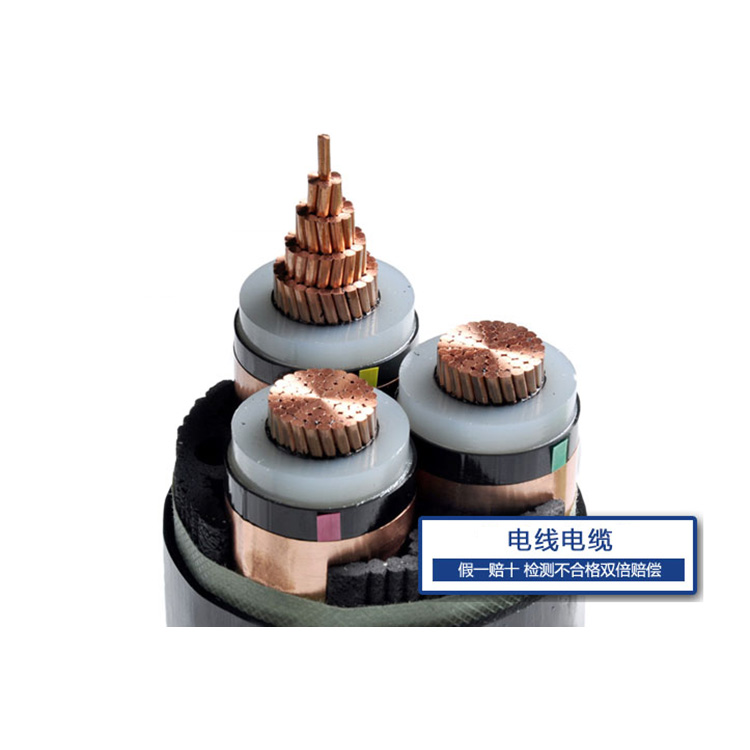

6~35KVCross-linked polyethylene insulated power cable
Product Standards
This product is manufactured in accordance with the GB/T12706 standard "Copper-core and Aluminum-core Power Cables with Plastic Insulation for Rated Voltage Up to and Including 35KV," and can also be produced according to customer requirements using international standards recommended by the IEC, British standards, German standards, and American standards.
Application Scope
This product is suitable for distribution and transmission lines with rated voltage of 3.6/6KV to 26/35KV, used for delivering electrical energy.
Utilize Features
Line Frequency Rated Voltage U0/U: 3.6/6 kV to 26/35 kV.
The allowable long-term high operating temperature for the cable conductor is 90°C.
During a short circuit (duration not exceeding 5 seconds), the high temperature of the cable conductor does not exceed 250°C.
The environmental temperature during cable laying should not be below 0°C.
Cable bend radius: Not less than 15 times the cable outer diameter for a three-core cable.
Single-core cable shall not be less than 20 times the diameter of the cable.
Cable model
Model | Name | Application Scope |
YJV | Copper-core cross-linked polyethylene insulated PVC sheathed power cable | Indoor spaces, tunnels, and cable trenches cannot withstand mechanical external forces. Single-core cables are not permitted to be laid in magnetic pipelines. |
YJLV | Aluminum-core Cross-linked Polyethylene Insulated PVC Sheathed Power Cable | |
YJY | Copper-core Cross-linked Polyethylene Insulated Polyethylene Sheathed Power Cable | |
YJLY | Aluminum-core Cross-linked Polyethylene Insulated and Polyethylene Sheathed Power Cable | |
YJV22 | Copper-core cross-linked polyethylene insulated steel tape armored polyvinyl chloride sheathed power cable | Indoor, tunnel, cable trench, or buried installations, where it can withstand certain mechanical external forces but not significant tensile forces.
|
YJLV22 | Aluminum-core cross-linked polyethylene insulated steel tape armored polyvinyl chloride sheathed power cable | |
YJV23 | Copper-core Cross-linked Polyethylene Insulated Steel Tape Armored Polyethylene Sheathed Power Cable | |
YJLV23 | Aluminum-core Cross-linked Polyethylene Insulated Steel Tape Armored Polyethylene Sheathed Power Cable | |
YJV32 YJV42 | Copper-core cross-linked polyethylene insulated steel wire armored PVC sheathed power cable | Indoor, tunnel, cable trench, shaft, or underground installations, capable of withstanding mechanical external forces and certain tensile forces. |
YJLV32 YJLV42 | Aluminum-core Cross-linked Polyethylene Insulated Steel Wire Armored PVC Sheathed Power Cable | |
YJV33 YJV43 | Copper-core cross-linked polyethylene insulated steel sheathed polyethylene jacket power cable | |
YJLV33 YJLV43 | Aluminum-core cross-linked polyethylene insulated steel-armored polyethylene sheathed power cable |
Production Range
Model | Core Count | Rated Voltage | ||||||
3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 18/30 | 21/35 | 26/35 | ||
Conductor Nominal Cross Section | ||||||||
YJV YJLV YJY YJLY | 1 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 |
3 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | |
YJV22 YJLV22 YJV23 YJLV23 | 1 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 |
3 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | |
YJV32 YJLV32 YJV33 YJLV33 | 1 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 |
3 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | |
YJV42 YJLV42 YJV43 YJLV43 | 1 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 | 25-1000 |
3 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | 25-500 | |
(II)
Product Name
110~220KVHigh-voltage cross-linked cable
1. Cross-linked polyethylene insulated corrugated aluminum sheath water-resistant sheath PVC jacket power cable
Model | YJLW02、YJLLW02 |
Specs | 240mm2~3000mm2 |
Voltage | 110~220KV |
Usage | Suitable for humid environments or areas with low groundwater levels, it can be directly buried underground, installed in tunnels, or placed within pipelines. |
2. Cross-linked polyethylene insulated皱纹aluminum sheath waterproofing layer polyethylene sheath power cable
Model | YJLW03、YJLLW03 |
Specs | 240mm2~3000mm2 |
Voltage | 110~220KV |
Usage | Ideal for areas with high groundwater levels, suitable for direct burial underground, within tunnels, or within pipelines. The cable can withstand significant tensile and pressure forces. |
3. Cross-linked polyethylene insulated lead sheathed polyvinyl chloride jacket power cable
Model | YJQ02、YJLQ02 |
Specs | 240mm2~3000mm2 |
Voltage | 110~220KV |
Purpose | Suitable for areas with low groundwater levels, it can be directly buried underground, installed in tunnels, or placed within pipelines. The cable cannot withstand tension or pressure. |
4. Cross-linked polyethylene insulated lead sheathed polyethylene jacket power cable
Model | YJQ03、YJLQ03 |
Specs | 240mm2~3000mm2 |
Voltage | 110~220KV |
Usage | Suited for areas with low groundwater levels, it can be directly buried underground, used in tunnels, or within pipelines. The cable cannot withstand tension or pressure. |
Utilize Features
The cable conductor is designed for a long-term working temperature of 90°C, with an emergency overload working temperature of 130°C.NoteDuring a short circuit (time ≤ 5 seconds), the conductor reaches a high temperature of 250°C.
Note: There is no unified overload duration regulation for power departments in our country; the U.S. standard stipulates that when the load exceeds the rated load by 10%, the duration should not exceed 15 minutes.
The ambient temperature during cable installation should not be below -20°C, and the cable should be preheated during installation.
Cable minimum bend diameter:
Cable Type Bent Diameter | Metal sleeve cable |
After installation | 30D0 |
Installation process | 40D0 |
Note: D in the table0Actual outer diameter for cables.
Axial Allowable Tension Force During Cable Installation (not considering radial side pressure at turns)
T=K*Core Number * Section Area (kg)
Coefficient K value: 7 for copper cores, 4 for aluminum cores.
Permitted lateral pressure P during cable bending
Single-core cables require a P≤500 kg/m.
P=T/R(T represents the axial traction force, R stands for the bending wheel radius)
From the above equation, it is apparent that since traction is generally determined by cable length and weight, to ensure P meets the specified requirements, the diameter of the turning wheel should be increased.
Cable laying is not restricted by落差.
Production Range
Model | Core Count | Cross-section |
YJLW02 YJLLW02 | 1 | 240-2400 |
YJLW03 YJLLW03 | ||
YJQ02 YJLQ02 | ||
YJQ03 YJLQ03 |
