Product Name

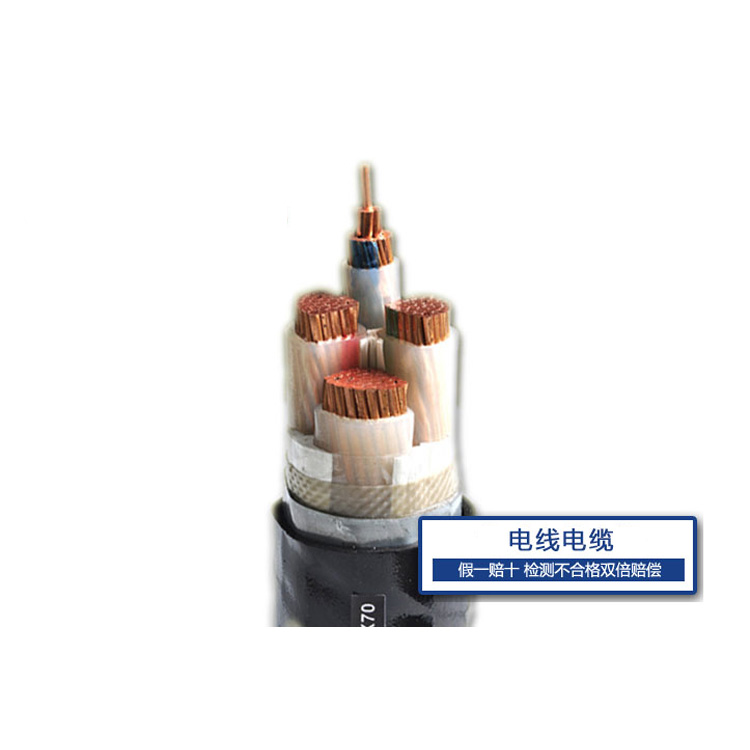

0.6/1KVPVC insulated power cables
Product Standards
This product is manufactured in accordance with GB/T12706 Standard for Copper-core and Aluminum-core Power Cables with Plastic Insulation at Rated Voltage 35KV and Below, and can also be produced according to customer requirements following the IEC Recommendations, British Standards, German Standards, and American Standards.
Application Scope
This product is suitable for fixed installations in distribution networks or industrial plants with rated voltage of 0.6/1KV or less.
Utilize Features
Industrial Frequency Rated Voltage U0/U: 0.6/1 kV.
The allowable long-term working high temperature for the cable conductor is 70°C.
The allowable high temperature for the cable conductor during a short circuit (with a long duration not exceeding 5 seconds):
Conductor cross-sectional area ≤ 300mm2-160℃；
Conductor cross-section > 300mm2-140℃。
The ambient temperature during cable laying should not be below 0°C.
The bend radius of the cable must not be less than 20 times the outer diameter of the cable.
Cable model
Model | Name | Application Scope |
VV | Copper-core PVC-insulated PVC-jacketed power cables | Indoor, tunnel, and cable trench locations cannot withstand mechanical external forces. Single-core cables are not permitted to be laid in magnetic pipelines. |
VLV | Aluminum-core PVC insulated PVC sheathed power cable | |
VY | Copper-core PVC-insulated Polyethylene sheathed power cable | |
VLY | Aluminum-core PVC insulated and polyethylene sheathed power cables | |
VV22 | Copper-core Polyvinyl Chloride (PVC) Insulated Steel Tape Armored PVC Sheathed Power Cable | Indoor, tunnel, cable trench, or buried installations, capable of withstanding certain mechanical external forces but not significant tensile forces. |
VLV22 | Aluminum-core PVC-insulated steel tape armored PVC sheathed power cable | |
VV23 | Copper-core PVC-insulated steel tape armored polyethylene sheathed power cable | |
VLV23 | Aluminum-core Polyvinyl Chloride Insulated Steel Tape Armored Polyethylene Sheathed Power Cable | |
VV32 | Copper-core PVC-insulated fine steel wire armored PVC sheathed power cable | Indoor, tunnel, cable trench, shaft, or underground installations, capable of withstanding mechanical forces and certain tensile forces. |
VLV32 | Aluminum-core Polyvinyl Chloride (PVC) insulated fine钢丝 armored with PVC sheath power cable | |
VV33 | Copper-core PVC-insulated fine steel wire armoured polyethylene sheathed power cable | |
VLV33 | Aluminum-core polyvinyl chloride insulated fine steel wire armoured polyethylene sheathed power cable |
Production Range
| Model | Number of cores | Conductor Nominal Cross-Section | |
| Copper conductor | Aluminum conductor | ||
| VV VY | — | 1 | 1.5~1000 |
| — | VLV VLY | 2.5~1000 | |
| VV22 VV23 | VLV22 VLV23 | 10~1000 | |
| VV VY | — | 2 | 1.5~500 |
| — | VLV VLY | 2.5~500 | |
| VV22 VV23 | — | 1.5~500 | |
| — | VLV22 VLV23 | 2.5~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
| VV VY | — | 3 | 1.5~500 |
| — | VLV VLY | 2.5~500 | |
| VV22 VV23 | — | 1.5~500 | |
| — | VLV22 VLV23 | 2.5~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
| VV VY | — | 4 | 1.5~500 |
| — | VLV VLY | 2.5~500 | |
| VV22 VV23 | — | 1.5~500 | |
| — | VLV22 VLV23 | 2.5~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
| VV VY | — | 3+1 | 2.5~500 |
| — | VLV VLY | 4.0~500 | |
| VV22 VV23 | — | 2.5~500 | |
| — | VLV22 VLV23 | 4.0~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
| VV VY | — | 5 | 1.5~500 |
| — | VLV VLY | 2.5~500 | |
| VV22 VV23 | — | 1.5~500 | |
| — | VLV22 VLV23 | 2.5~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
| VV VY | — | 4+1 | 2.5~500 |
| — | VLV VLY | 4.0~500 | |
| VV22 VV23 | — | 2.5~500 | |
| — | VLV22 VLV23 | 4.0~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
| VV VY | — | 3+2 | 2.5~500 |
| — | VLV VLY | 4.0~500 | |
| VV22 VV23 | — | 2.5~500 | |
| — | VLV22 VLV23 | 4.0~500 | |
| VV32 VV33 | VLV32 VLV33 | 10~500 | |
