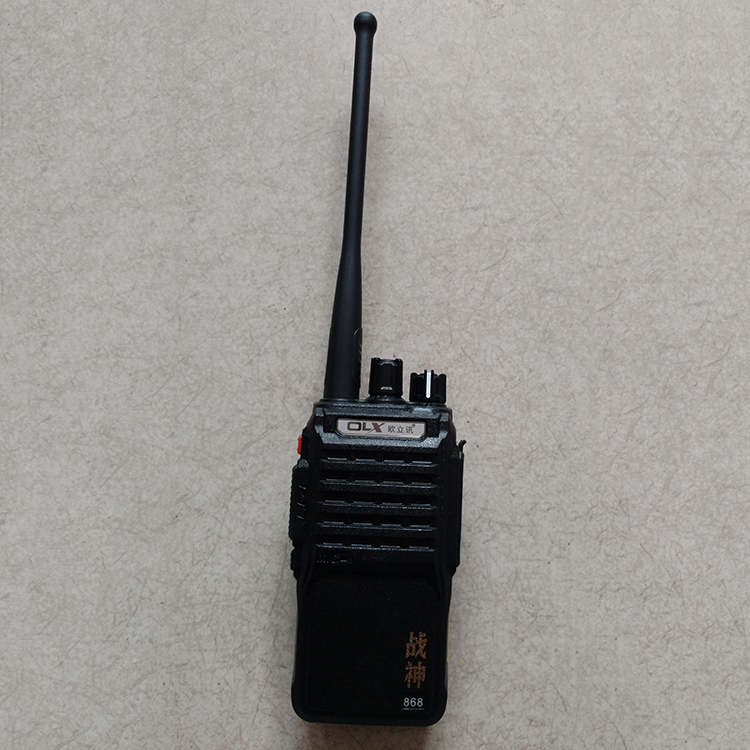

Overall Part
Frequency Range: 400.000MHz ~ 470.000MHz
16 Channels
Rated Voltage DC8.4V (Rechargeable Lithium Battery)
Antenna Configuration - Sensing Antenna
Antenna Impedance 50Ω
Work Mode: Single-channel operation at the same or different frequencies
Grounding Method Negative Pole
Volume: 132*68*40mm
Firing section
RF Output Power: 15-20W
Frequency Modulation
Frequency Deviation ≤ ±5 kHz
Residual Wave Radiation <-60dB
Pre-emphasis Characteristic: 6dB per octave
Emission Current ≤ 1500mA
Receiving Partial
Sensitivity ≤ 0.16uV (12dB SINAD)
Noise Suppression Sensitivity < 0.2 uV
Interference Rejection 50dB
Audio Power ≥ 300mW
Current Input ≤ 100mA
Silent Wait 20mA
