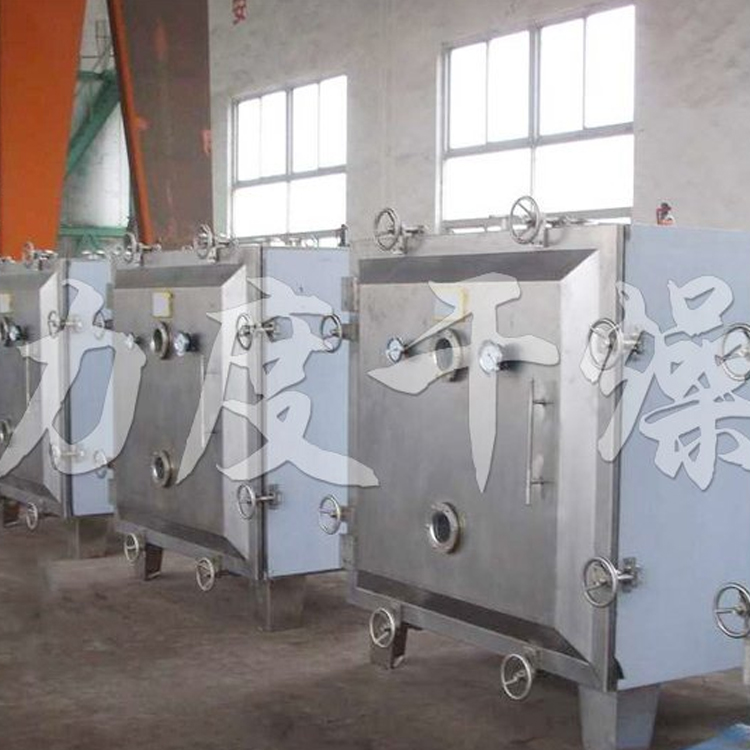

Working Principle
Vacuum drying refers to the process of drying materials under vacuum conditions while heating. If a vacuum pump is used to extract moisture, it accelerates the process.
Enhanced drying speed.
Note: If a condenser is used, the solvent in the material can be recovered through the condenser. If the solvent is water, a condenser is not necessary, thereby saving on energy investment.
Performance Features
The boiling point of the material solution is reduced under vacuum, which increases the driving force for heat transfer in the evaporator. Consequently, for a given amount of heat transfer, the heat transfer area of the evaporator can be saved.
The heat source for the evaporation process can be low-pressure steam or waste heat steam.
◎ Evaporator heat loss is minimal.
Can be disinfected before drying, ensuring no impurities enter during the drying process, in compliance with GMP standards.
◎Static vacuum dryer; thus, the shape of the dried material will not be damaged.
Suitable Material
Low-temperature drying suitable for thermosensitive materials that are prone to decomposition, aggregation, and deterioration at high temperatures; widely used in industries such as chemicals, food, and electronics.
Structure Diagram
Technical Specifications
| Specs Name | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 |
| Internal dimensions of the drying chamber | Ф600×976 | Ф800×1247 | Ф1000×1527 | Ф1400×2054 | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
| External dimensions of the drying cabinet | 1135×810×1024 | 1700×1045×1335 | 1693×1190×150 | 2386×1675×1920 | 1513×1924×1720 | 1513×1924×2060 | 1513×1924×2500 |
| Rack Layer Count | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
| Inter-story distance | 82 | 82 | 102 | 102 | 122 | 122 | 122 |
| Baking tray size | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 |
| Number of baking trays | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
| Internal pressure in the baking rack tube | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| Holding Rack Temperature | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
| Inside box vacuum degree with no load | -0.09～0.096 | ||||||
| At -0.1 MPa, heating temperature 110oAt C, the vaporization rate of water | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| When using a condenser, vacuum pump model, power | 2X-15A 2KW | 2X-30A 3KW | 2X-30A 3KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-90A 2KW |
| Without a condenser, vacuum pump model, power | SK-0.8 2.2KW | SK-2.7 4KW | SK-3 5.5KW | SK-6 11KW | SK-3 5.5KW | SK-6 11KW | SK-6 11KW |
| Dry cabinet weight | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
Note: Water ring vacuum pump is used in conjunction with mechanical booster to enhance the vacuum degree.
Order Instructions
When placing an order, please select an appropriate vacuum dryer based on factors such as the initial moisture content, final moisture content, temperature, vacuum degree, drying quantity, and drying time of the dry material. Within the same model of vacuum dryer, there are four heating methods: steam, hot water, conductive oil, and electric heating. For example, to increase the drying quantity, you can appropriately increase the number of oven shelves. Please promptly inform our factory.
Our factory can provide and install accessories for the vacuum drying system mentioned in the instruction manual. Please specify at the time of ordering.
We can provide design, manufacturing, and installation services for special requirements in vacuum drying systems.
Our equipment offers three guarantees of quality to users. All accessories are provided on a long-term basis, please rest assured.
