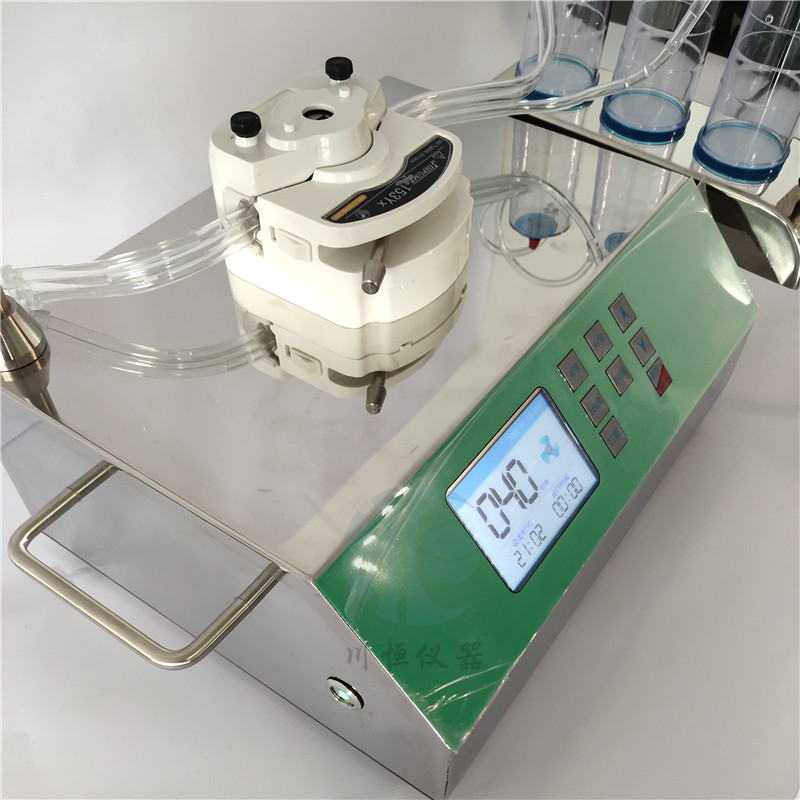

Intelligent Full-Enclosed Bacterial Collector ZW-808A

The Bacterial Collector is a配套 accessory for a disposable, fully enclosed bacterial collection culture chamber. It features an integrated stainless steel housing design made of L304 food-grade stainless steel, meeting the high cleanliness requirements for sterile and microbiological rooms. It extends the lifespan of the instrument and reduces costs associated with maintenance and replacement due to rusting issues commonly found in traditional bacterial collectors. The housing design eliminates dead corners to prevent corrosion from chemicals. By utilizing the directional peristaltic pump principle of the bacterial collector, microorganisms in the test sample are retained in the microporous filter membrane (0.22µm*47mm or 0.45µm*47mm) within the filter. The antibacterial components are removed by rinsing the filter membrane, and then the required culture medium is directly introduced into the fully enclosed filtration bacterial collection culture chamber through the sampling pipeline. It is then placed in the incubator for sterile cultivation.

Application Scope:

1. Pharmaceutical Industry: Sterility testing and microbiological limit testing for purified water, injection water, large-volume parenterals, small-volume parenterals, powders, biological products, blood products, ophthalmic preparations, and maintenance solutions, etc.

2. Equipment Industry: Sterility testing and microbiological limit testing for purified water, injection water, syringes, infusion sets, blood transfusion sets, intravenous catheters, etc.

3. Food and Beverage Industry

Key Features:

1. Pump Head: Off-center tensioning fixation, easy and quick operation.

2. The transmission system of the intelligent bacterium collector uses a low-speed, high-torque motor for direct drive, thereby reducing the input power and the surface temperature of the device, with noise below 50 dB.

3. The蠕动泵 features a safety protection device that automatically stops operation when the switch is turned on too quickly, preventing operational errors from causing harm to individuals.

4. The whole unit features an integrated ultra-small design with L304 stainless steel, minimizing the space required on the operation deck.

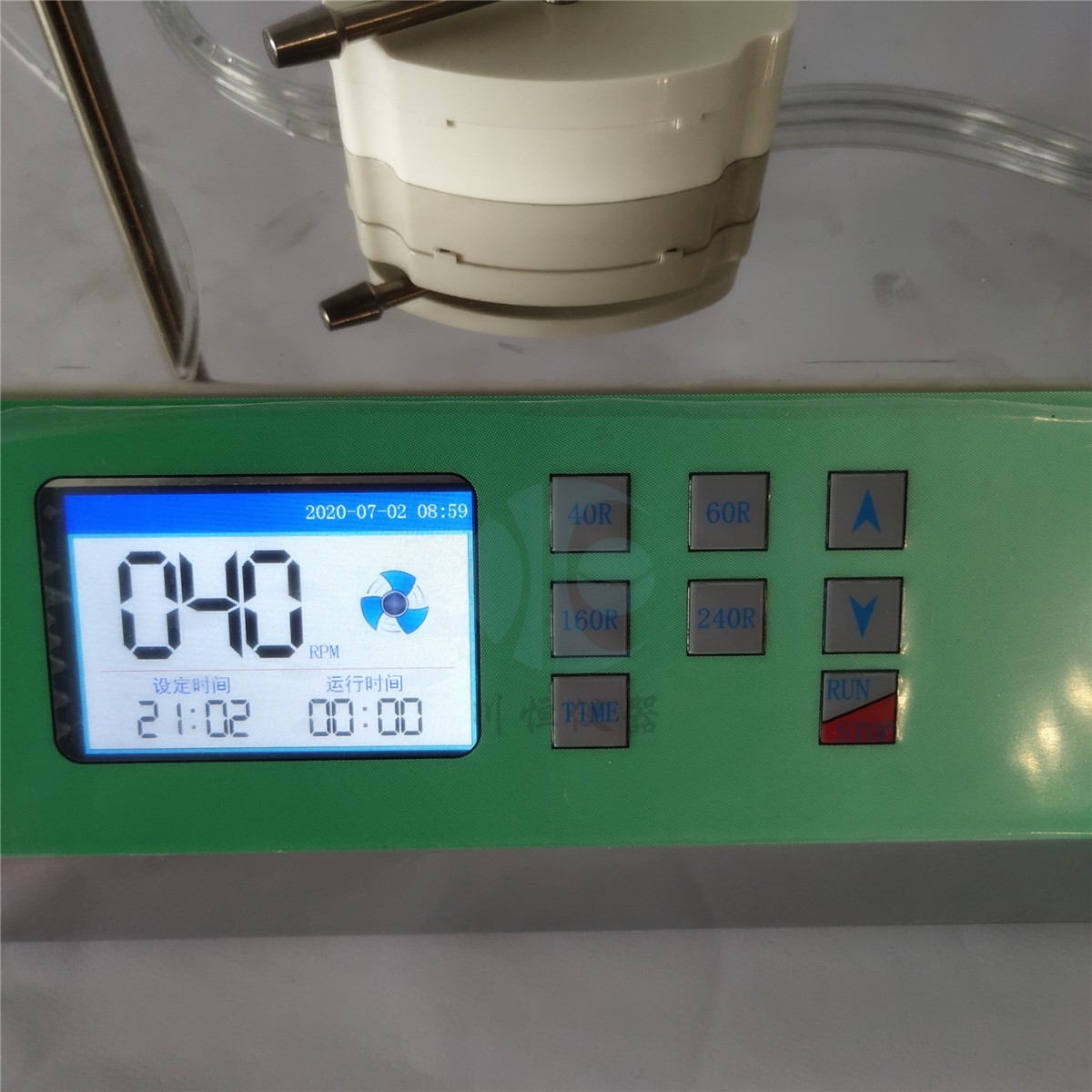

5. Speed control employs a stepless rotation speed regulation method, operation is simple and direct, and features a pause memory function.

6. The foot switch is connected with an imported aviation waterproof terminal, controlling electrical appliances at low voltage, eliminating the risk of electric shock.

7. The housing surface is mirror polished for easy disinfection and cleaning.

8. Drainage trays are available in split and on-machine rotating styles.

9. The机身installation port has been sealed with waterproofing, preventing liquid from seeping into the machine.

10.可根据customer requirements, add a product return feature, allowing for the disassembly and reassembly of return racks, to meet the needs of collecting expensive items and product sterilization.

Intelligent Full-Sealed Bacterial Collection Instrument ZW-808A

Technical Specifications:

Model: ZW-808

Power Supply: AC 220V (±10%), 50Hz (±2%)

Power: 60W

Speed: 0～300 ± 5 rpm

What are the applications of the intelligent bacterial collection instrument?

The Intelligent Bacterial Collector can be applied in the following fields and scenarios:
1. Medical Field: The intelligent bacterium collector can be used for hospital infection control and prevention. For instance, it detects bacterial and pathogen contamination in operating rooms, wards, equipment, and personnel, allowing for timely measures to be taken for disinfection and cleaning.
2. Food Hygiene Monitoring: Intelligent coliform counters can be used for monitoring bacteria and pathogenic bacteria in food processing plants, catering venues, and other environments. By testing the bacterial levels in food and environmental samples, ensure the safety and hygiene of the food.
3. Environmental Monitoring: The intelligent bacterial collector can be applied in the field of environmental monitoring, used for detecting bacteria and pathogens in air, water bodies, and soil. By collecting and analyzing environmental samples, it provides scientific evidence to assess the sanitation status of the environment.
4. Environmental Pollution Investigation and Emergency Response: The intelligent microbial sampler can be used for environmental pollution investigation and emergency response. For instance, after natural disasters, it can be utilized to detect bacterial contamination in the air and water sources in disaster areas, allowing for timely measures to prevent and treat the pollution.
5. Laboratory Research: The Intelligent Bacterial Collector can be used for bacterial culture and identification in laboratories. Its automated and intelligent functions enhance laboratory efficiency and accuracy, while reducing human errors.
In summary, the application scope of the intelligent bacterial sampler covers various fields such as food hygiene, environmental monitoring, environmental pollution investigation, and emergency response, effectively enhancing the levels of sanitation and safety management.
