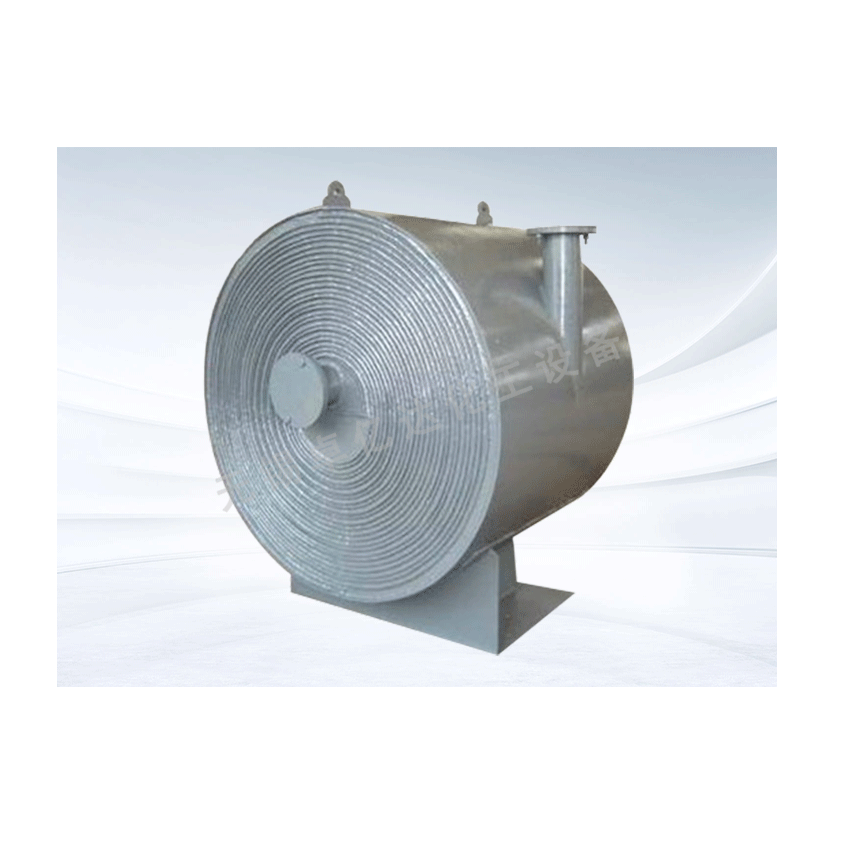

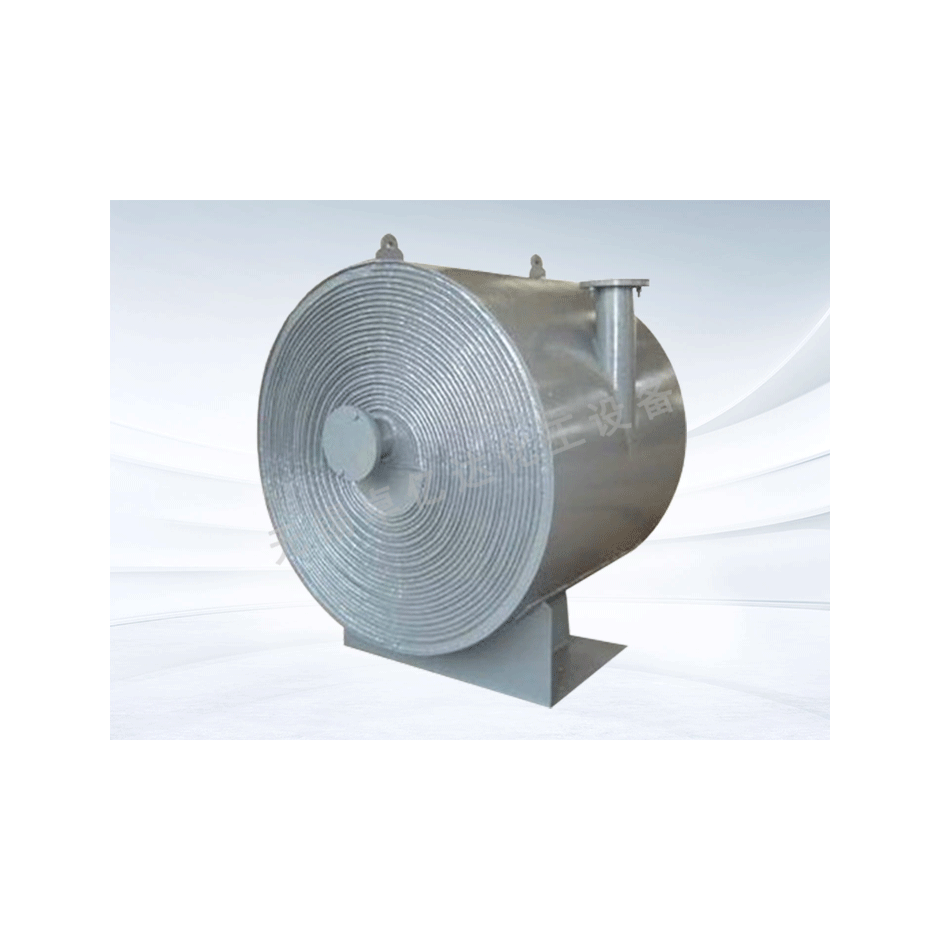

Type I Non-Removable Horizontal Spiral Plate

Overview

The non-detachable horizontal spiral plate heat exchanger is designed according to the standard JB/TQ724-89 for non-detachable spiral plate heat exchangers, with specified basic parameters and dimensions. It boasts advantages such as simple manufacturing, low cost, compact size, and good heat transfer performance. However, it also has its drawbacks, such as the inability to be mechanically cleaned and difficulty in maintenance when damaged. The selector should choose the specific equipment based on the actual situation of the project.

       The I-type non-detachable horizontal spiral plate heat exchanger features a sealed end face with welding, thus offering high-sealing properties.

Technical Specifications

Stainless acid-resistant steel PN0.6, 1.6MPa non-detachable (Type I) spiral plate heat exchanger

Carbon steel Pg6, 16 kg/cm² non-detachable (Type I) helical plate heat exchanger
