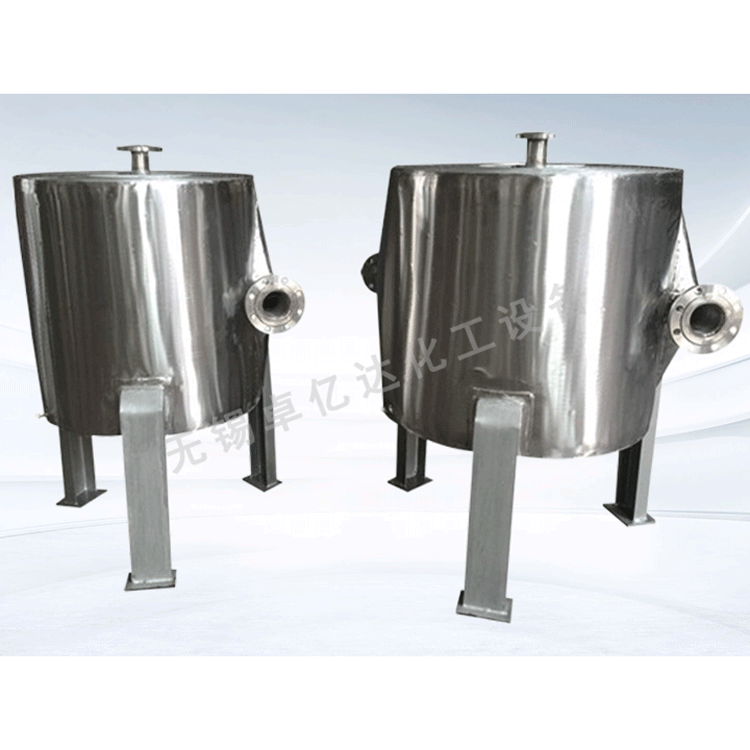

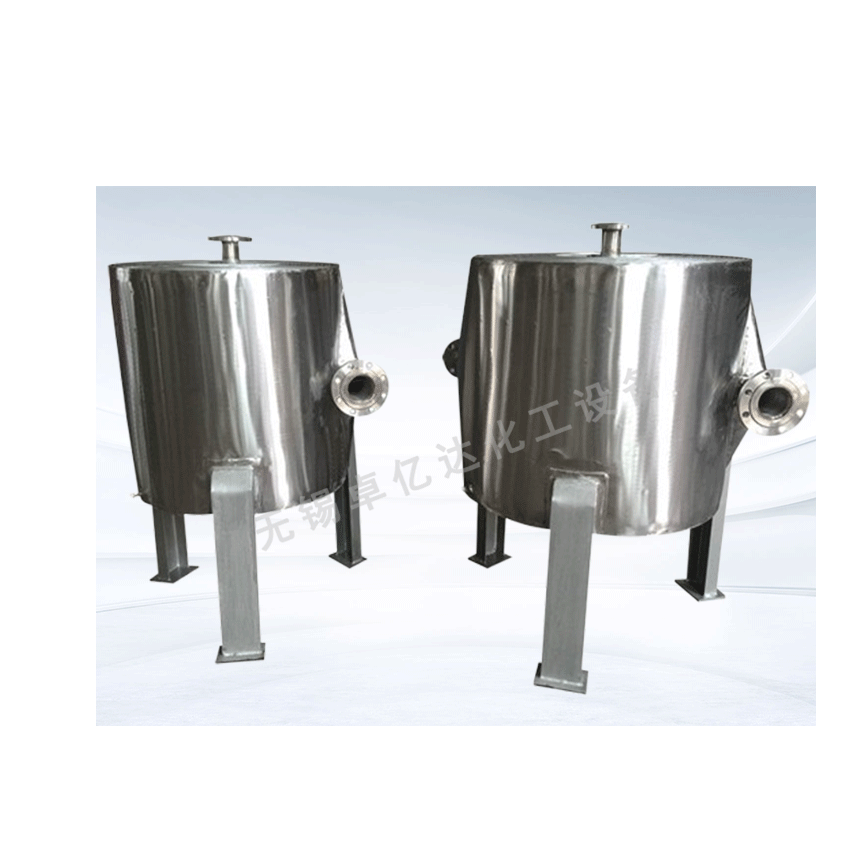

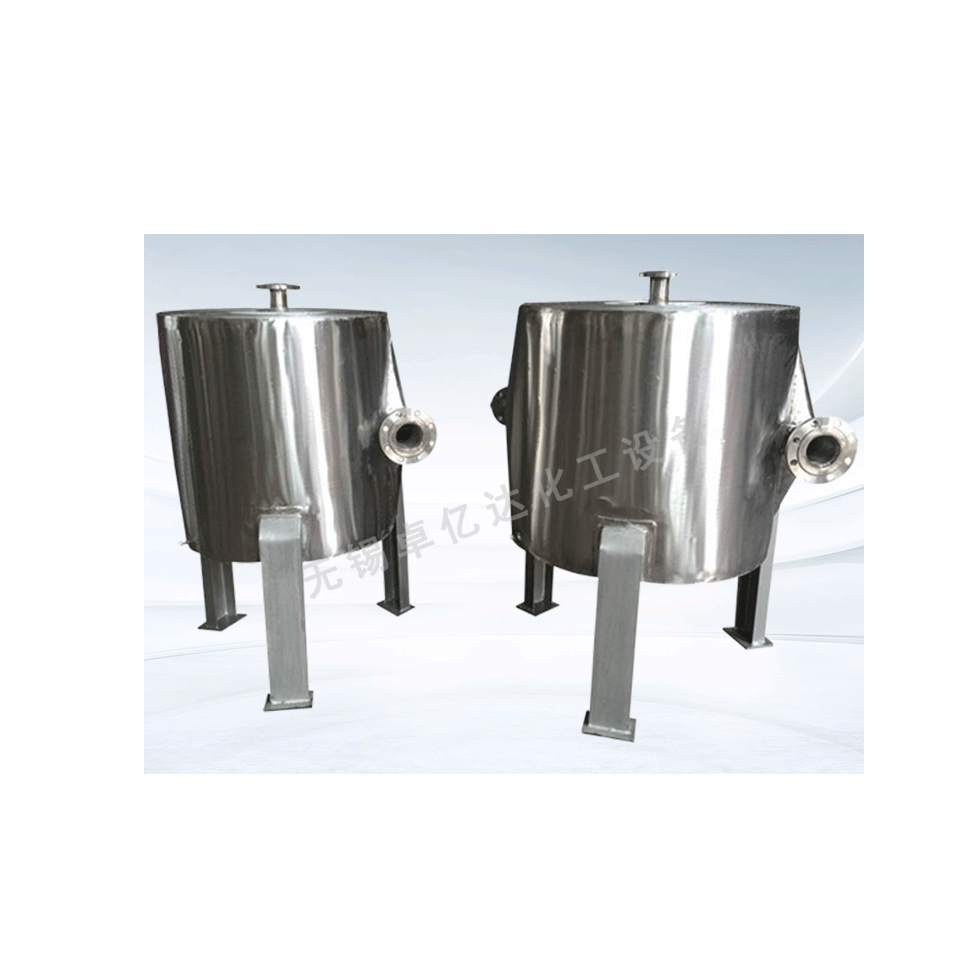

Type I Non-Dismantled Spiral Plate

Overview

The non-disassemblable spiral plate heat exchanger is designed according to the form of the non-disassemblable spiral plate heat exchanger specified in the machinery department standard JB/TQ724-89, with basic parameters and dimensions. It has advantages such as simple manufacturing, low cost, small size, and good heat transfer performance. However, it also has its shortcomings, such as inability to be mechanically cleaned and difficulty in repair when damaged. The selector should choose the specific equipment according to the actual situation of the project.

       The I-type non-detachable spiral plate heat exchanger features sealed ends in its spiral channels through welding, thus offering high sealing integrity.

Technical Specifications

Stainless acid-resistant steel PN0.6, 1.6MPa non-detachable (Type I) spiral plate heat exchanger

Carbon steel Pg6, 16 kg/cm² non-detachable (Type I) spiral plate heat exchanger
