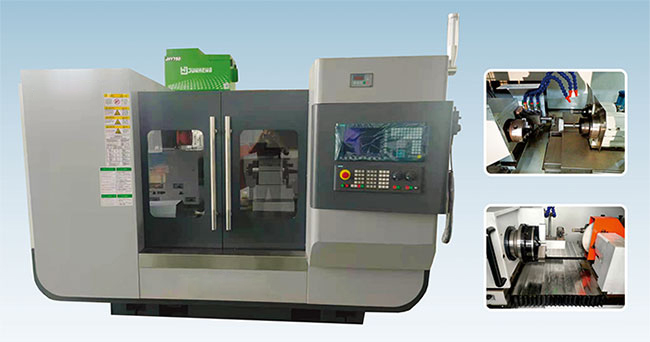

★ This machine tool is a three-axis (X feed, Z1 grinding wheel, Z2 grinding wheel shaft) two-axis CNC compound grinder, primarily used for grinding the inner circular holes, inner tapered holes, step holes, inner ends, outer circles, and outer ends of workpieces. The grinding cycles are all automatically completed (including automatic feeding, retracting, rough grinding, fine grinding; automatic wheel adjustment, automatic compensation, etc.).
★ The machine tool employs a structure with workpiece feeding and a sliding table (grinding wheel stand) that moves left and right. Both the sliding table and the grinding wheel stand are equipped with rolling linear guides, all driven by servo motors via ball screw movement. The rotating speeds of the workpiece spindle and the grinding wheel spindle are controlled by a variable-frequency inverter to achieve stepless speed adjustment. The workpiece clamping is a hydraulic power chuck, and other matching fixtures can be configured according to the specific characteristics of the user's workpiece.
★ The machine tool features a fully enclosed protective housing, with a front-mounted rotating operating box and a rear-mounted backpack-style electrical cabinet.
Item No. Name MKF21101 2. Grinding bore diameter range 10-100 mm 3. Grinding bore depth 120 mm 4. Grinding outer diameter range 15-150 mm 5. Grinding outer diameter length 100 mm 6. Workpiece motor power 1.5 kW 7. X-axis servo motor power 11 Nm 8. Z1, Z2 axis servo motor power 11 Nm 9. Grinding wheel 1 motor power 2.2 kW 10. Grinding wheel 2 motor power 7-22 kW 11. Grinding wheel 1 motor speed 2800 (r/min) Variable speed 12. Grinding wheel 2 motor speed 1000-42000 (r/min) Variable speed 13. Workpiece speed 0-600 (r/min) Variable speed 14. X, Z1, Z2 axis positioning accuracy 5 μm 15. X, Z1, Z2 axis repeat positioning accuracy 2 μm 16. X-axis travel 450 mm 17. Z1, Z2 axis travel 400 mm 18. X-axis movement speed 10 m/min 19. Z1, Z2 axis movement speed 10 m/min 20. Machine dimensions 2800×2400×2600 mm 21. Machine weight 4200 kg 22. Rated power (approx.) 22 kW 23. Machining accuracy 1. Inner bore, outer diameter roundness 2 μm 2. Inner bore, outer diameter cylindrical accuracy 3 μm 3. Inner bore, outer diameter concentricity 3 μm 4. Inner bore, outer diameter surface roughness Ra0.4 μm 5. Inner bore, outer diameter perpendicularity to end face 4 μm
