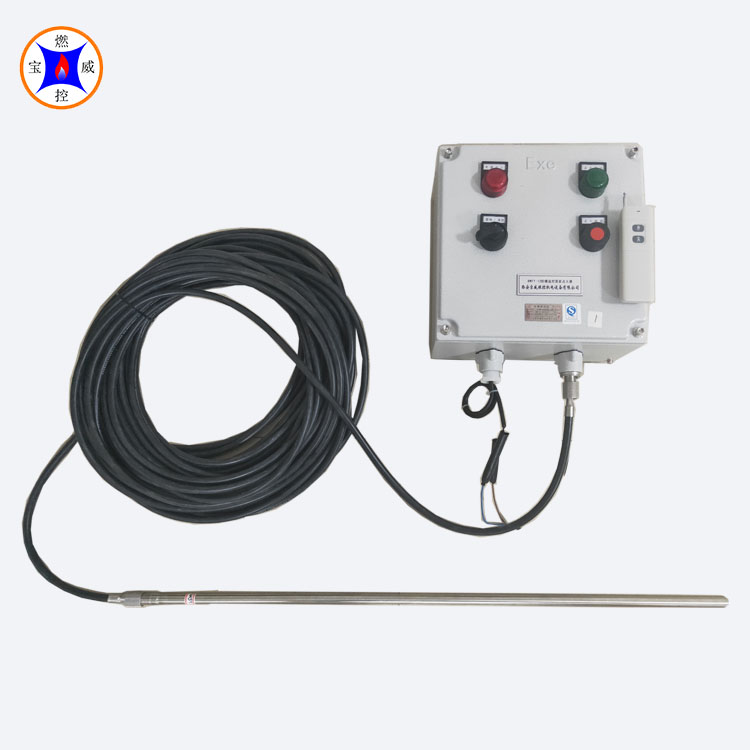

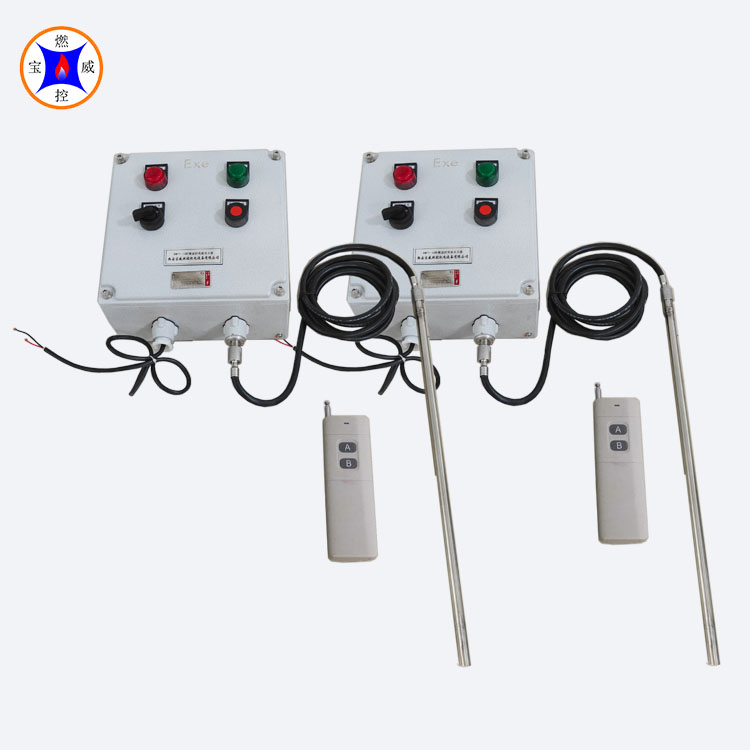

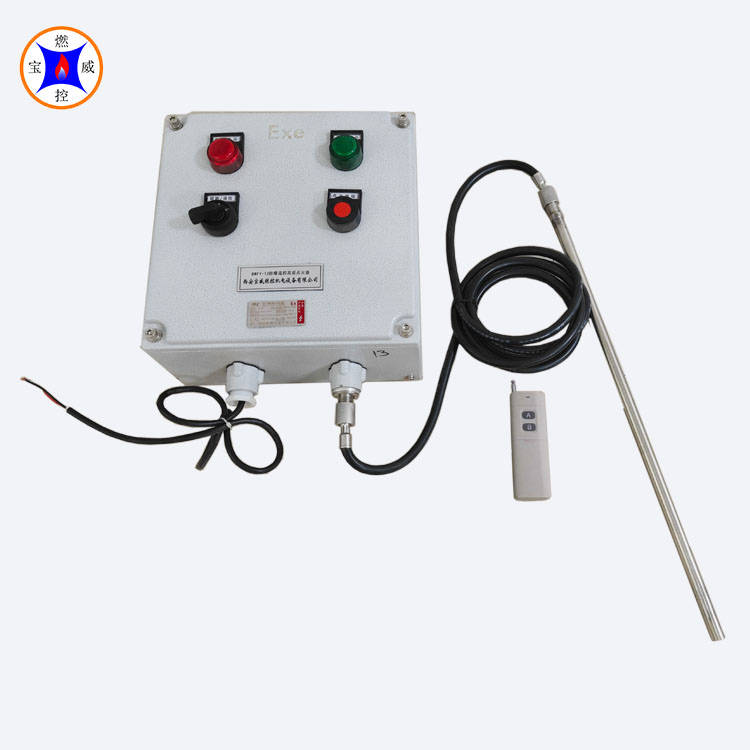

The BWFY-12 explosion-proof remote control high-energy igniter is equipped with a high-energy igniter, remote control transmitter, timer relay, button, indicator light, and other control components. It can achieve on-site ignition, remote ignition, and system operation status display, with simple, safe, and reliable operation. It is mainly used for automatic ignition of industrial burners, flare stacks, and fire exercise equipment for gas, oil, and fire protection. It boasts reliable ignition, long lifespan, and features such as high-temperature resistance at the ignition end, anti-coking, and self-cleaning capabilities. Therefore, it is widely used in industries such as petroleum, chemicals, metallurgy, ceramics, and environmental protection energy.

1. Power Voltage: 220V ± 10% 50/60 Hz
2. Suitable Fuel: Natural Gas, Light Oil, Heavy Oil
3. Instantaneous temperature resistance at ignition end: 1300℃
4. Ignition Frequency: 6-12 times/S
Spark Energy: 12J

6. Explosion-proof Grade: Exd IIBT6/Exd IICT6

7. Dimension: 300*300*150mm

Exterior Material: Cast aluminum or stainless steel available

9. Ignition Rod: Front-end material - 2520 high-temperature alloy, semiconductor high-temperature material; Available in three diameter sizes: Φ12 / 16 / 18, non-standard length customization available, standard installation thread M18*1.5 (can also be customized according to working conditions).

10. Ignition Cable: High-energy ignition cable, non-standard length customization, temperature resistance: -60~200°C, voltage resistance: 20KV
