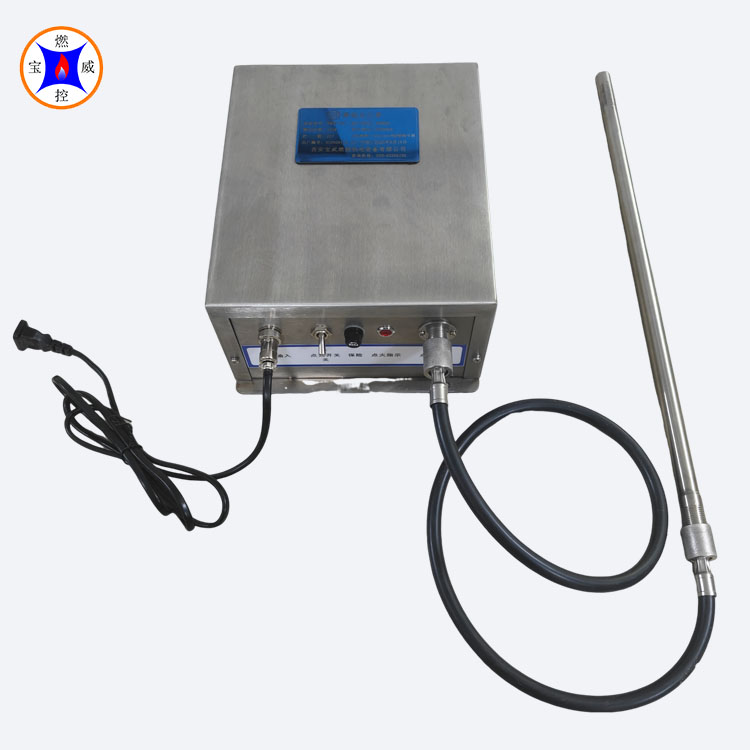

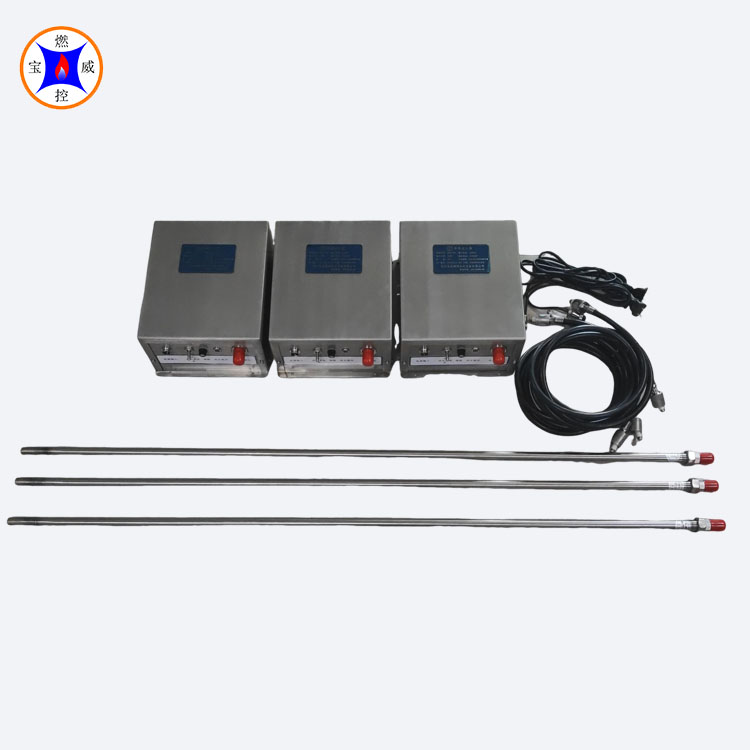

BWGD-20 High-Energy Igniter, primarily used for gas and oil industrial furnace burners, vent flame torch ignition, features reliable ignition, long service life, and more. The ignition end is resistant to high temperatures and coking, with self-cleaning capabilities.

1. Power Voltage: AC 220V ±10%, 50/60Hz

2. Applicable Fuel: Natural Gas, Light Oil, Heavy Oil

3. Instantaneous Temperature Resistance at Ignition End: 1300℃

4. Ignition Frequency: 6-15 times/second

Spark Energy: 20J

6. Material: Metal Enclosure

7. Dimensions: 280×195×110mm

8. Installation Dimension Drawing:

9. Ignition Rod: Front-end material - 2520 high-temperature alloy, semiconductor high-temperature material; Diameter in three sizes: Φ12 / 16 / 18, non-standard length available for customization; Standard installation thread M18*1.5 (can also be customized according to working conditions).

10. Ignition Cable: High-energy ignition cable with non-standard length customization, temperature resistance: -60~200℃, voltage resistance: 20KV
