▍Product Introduction/ Product introduction

Three-blade Roots Blower SR125

Airflow: 0.8 – 129 m³/min

Pressure: 0.1 - 0.9 kgf/cm²

Motor Power: 0.75 – over 250 kW

Standard Accessories:

Universal Base

Belt Cover

Fan Belt Wheel, Motor Pulley, V-Belt

Inhalation muffler (with air filter)

Safety valve

Pressure Gauge

Lubricant

Anchoring Bolt

Each model comes with a performance chart and standard specifications, making it easy to select the correct fan model.

The fan body, including the attachments, is standardized. We have a well-established mass production system that can meet your requirements at any time.

Due to its excellent spiral structure and the use of a silencer with a noiseless air filter matched to the fan, the fan operates at a significantly lower noise level than before.

The rotor is a precision product that has been CNC machined. It has achieved complete dynamic balance during the manufacturing process, with minimal error and virtually no vibration.

Compact design, minimal installation space required.

▍Product Features/ Product Features

Low noise. The air inlet and outlet of the fan are shaped in a spiral, allowing the intake and exhaust processes to sequentially cut in along the spiral line, thereby avoiding the pulsating noise and vibration that occur when the old-style fan's exhaust fan is in use. Sludge conveyance usedRoots BlowerEmployed a negative-resonance composite muffler to further reduce noise.

2. High thermal and volumetric efficiency for energy saving. The Roots blower rotor utilizes advanced compound curves, ensuring more rational meshing and increased volumetric efficiency.
4. Low vibration: Even though the rotor has been precision-machined and is in a balanced state, it is still balanced using high-precision dynamic balancing equipment. As a result, the fan operates with almost no vibration.
5. Utilizing high-precision, high-hardness synchronous gears, not only does it prolong the lifespan of the fan, but also effectively reduces noise.
6. This series of fans utilizes imported Japanese or German bearings and Korean or Taiwanese rubber belts, ensuring enhanced product reliability.
7. Exhaust air is clean, free of any oil or dust. The positive displacement blower features a rational sealing structure, preventing oil from entering the casing, thereby ensuring the air remains clean.

▍Application Scope/Scope of application

Primarily used for yiMedicines, chemicals.Coal, Glass Industry WasteWaste disposal and other industries. It is specifically designed for the characteristics of corrosive media and complex components in similar industries. Plays a crucial role in the ventilation and exhaust of special gases such as coal gas, natural gas, etc.

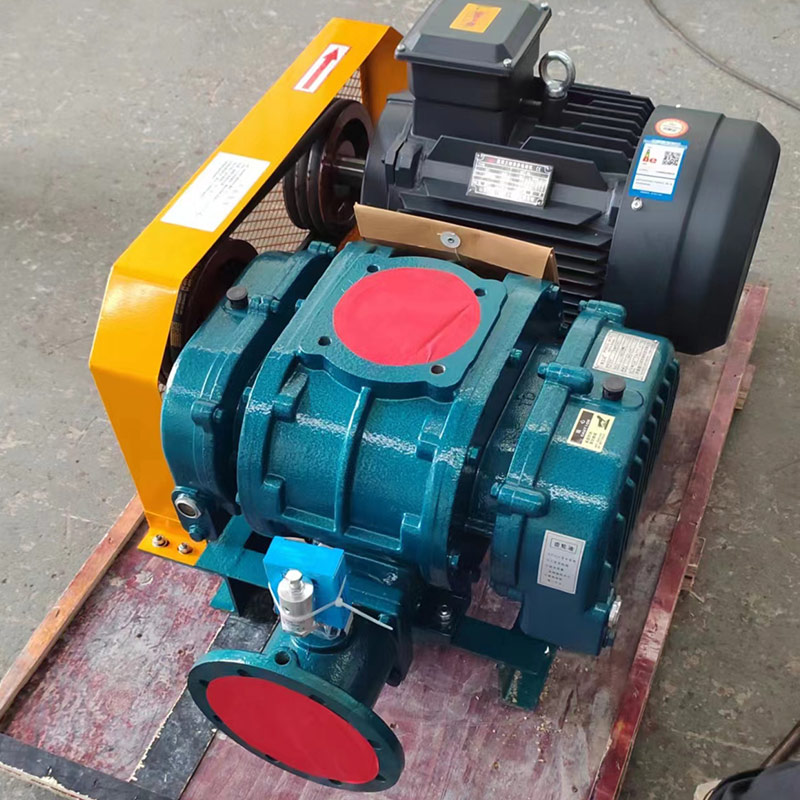

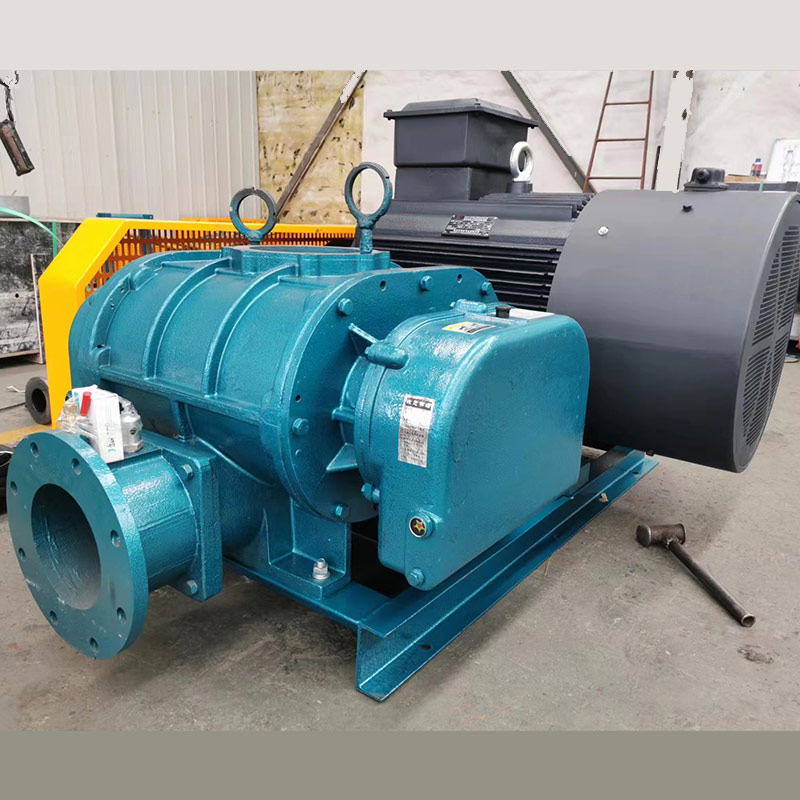

▍Product Real Shots/Product Photograph
