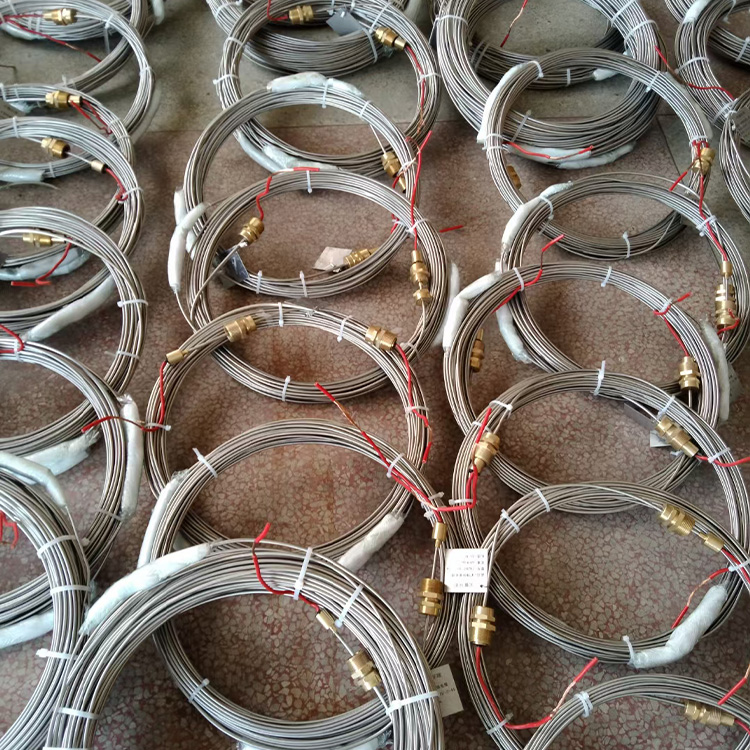

MI cable is a special heating cable composed of a发热 core, magnesium oxide insulation, and a metallic outer sheath. The metallic outer sheath is available in 321 stainless steel, 316L stainless steel, and 825 alloy. Due to its material properties, the MI cable boasts features such as high-temperature resistance, waterproofing, explosion-proof, non-aging, and high mechanical strength, ensuring safety and reliability.
The MI cable heats evenly, with the heat output per unit length varying due to the working voltage, wire core cross-section, and cable length. It is available in two types: single-core and double-core cables, and falls under the category of customized products.

MI Cable Structure Diagram
1. MI Cable Model Description


2. Key Technical Parameters of MI Cable Products
| Working Voltage | 220V/380V |
| Rated Power | 20/40/60/80/100 W/m |
| Ex-proof rating | Exe II C T4 Gb |
| Structural form | A、B、D、E、H、J |
3. MI Cable Structure Type
