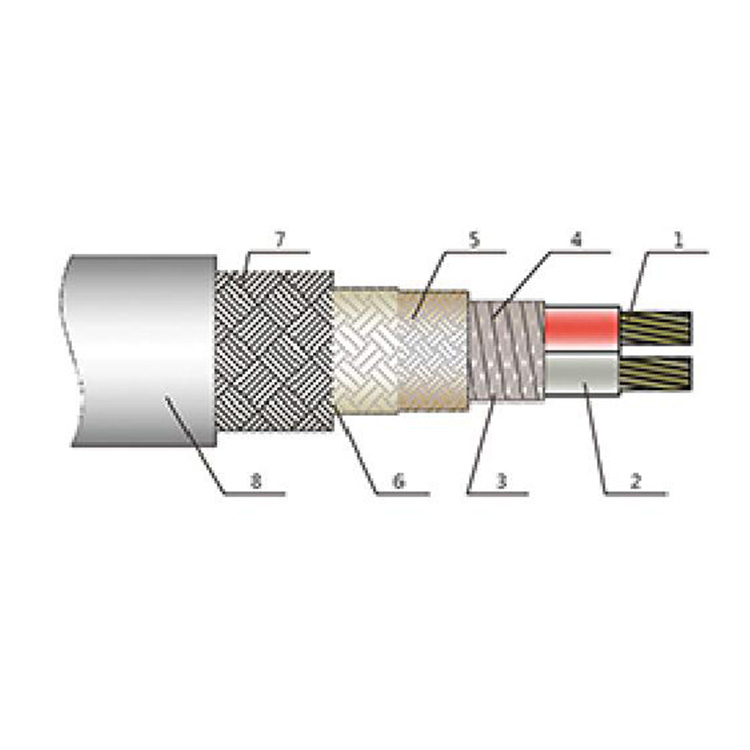

This product utilizes a general series-parallel electric heating cable circuit structure. The insulation layer is made of multilayer composite of inorganic materials with better temperature resistance and fireproofing properties. It is fire-resistant, flame-retardant, and can withstand high temperatures. The reinforcing layer is made of continuous copper or aluminum metal shells and reinforced sheath, offering waterproof, UV-resistant, and anti-aging protection. It can be directly used outdoors with a long service life, making it suitable for a wide range of applications requiring high safety levels, long lifespan, and high population density, as well as those with stringent temperature requirements, such as airport, high-speed rail stations, subway stations, sports venues, and building pipe heating, roof snow melting, and ice removal; submarine tunnel pipe heating; sulfur pipeline, asphalt pipeline heating, and thermal heating in the photothermal field.

Fire Retardant Parallel Cable Trace Model Description

RDP2-Q-J6-□

RDP: Parallel-type Electric Trace Heating

2: Single-phase 220V operating voltage

Q: Reinforced External Sheath (Copper Shell + PE Reinforcement Layer)

J6: Insulation Code, Polar-free Insulation Material, High Temperature Resistance up to 1000℃

□: Milliwatts per meter (mW/m)
