Rails and switch points are prone to being covered by snow and ice. When rails and switch points are frozen, accurate train rerouting is not possible, severely affecting the safety of railway operations; when covered with snow and ice, the friction between the rail and the wheel decreases, affecting train control and posing significant safety risks; manual snow and ice removal is inefficient, costly, and still cannot prevent railway accidents. Snow and ice removal and anti-freezing in the railway system are urgent issues to be addressed. The rail electric heating solution is a method to remove snow and melt ice from rails and switch points.
Design Principles for Rail Heat Trace Solutions:
· Choose high-power output electric heating cables.
· Choose an appropriate installation location to maximize efficiency.
· Ensure adequate heat transfer to the rail.

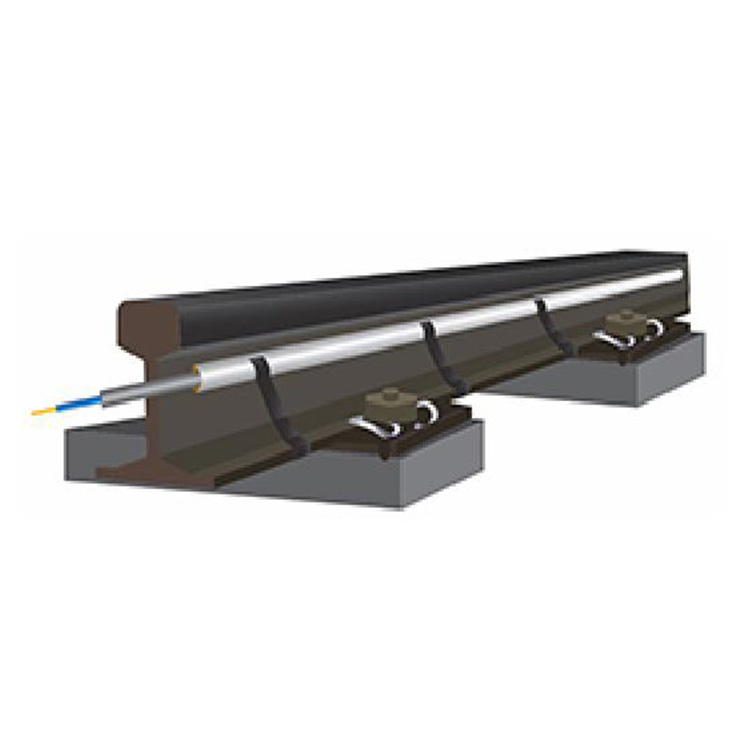

Wuxi Global Electric Equipment Co., Ltd. has designed technical solutions for constant power series, parallel, and skin-effect electric heating, based on existing products and technology. Integrated with installation accessories suitable for rails, and utilizing advanced control systems, we have launched the rail heating system. See the illustration below for details; the specific implementation can be designed and installed according to the on-site conditions.
Highlight the Intelligent Temperature Measurement Line
Railway Track Series Electric Heating Solution:
Output power: 1~200W/m, voltage: 1~1500V (as per design requirements)
Operating Temperature: 50℃; Operating Temperature: -40℃;
Size: 8*34mm; Bend Radius: 50mm
Weight: approx. 400g/m; Loop: 1000 meters
Low installation cost.
Low operating costs;
Low maintenance costs.
Parallel Track Electric Heat Trace Solution:
Voltage: 50~750V
Output power: 150W/m (single sheath) to 400W/m (double sheath)
Applicable for heated and保温 of rail switch tracks.
A single type of product can meet all application requirements.
Easy to cut and install, quick and convenient.
Low maintenance requirements.
Rails Skin Heating Solution:
Output power: 1~300 W/m
Single power circuit up to 15,000 meters.
Low operating costs.
Low maintenance costs.
Compared to other systems, the rail skin electric heating solution consumes less energy and achieves higher surface temperatures on the rail; it also has lower maintenance costs, and is recommended for priority adoption.
The above three solutions are all equipped with an intelligent system:
The intelligent centralized control system can monitor the operation of the heating belt in real-time.
Displays the temperature at every meter of the rail and accurately locates the fault point when the auxiliary heating system malfunctions, facilitating timely troubleshooting.
Track Heating Monitoring System Diagram
