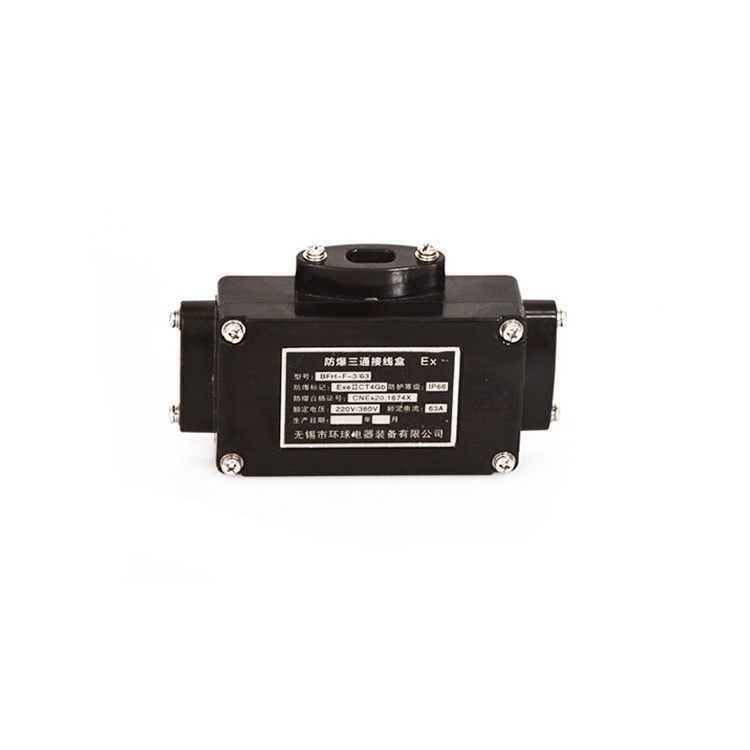

BFH-F-3/63

Performance Parameters

Rated Voltage: 220V / 380V

Allowable Current: 15A

Protection Grade: IP55

ExeⅡT 4GC防爆标志

Dimensions: Tee Fitting: 165×82×45

Three-way connector: 165×105×45

Insulation Resistance: ≥50 MQ

Applicable Electric Heat Tracing: Constant Power Parallel Type

Self-limiting electric heating tape

Please note frequency usage precautions.

Findings indicate a cracked junction box; usage should be halted immediately and a replacement should be made.

Tighten all fasteners during installation. Absolutely prohibit any direct contact between cores and resistive wires to ensure normal electrical spacing.

The seal ring size should match the model of the electric heating tape provided during installation.

Excess connection holes must be sealed with the included steel plates to ensure explosion-proof performance.
