Product Introduction

Electrolytic ion grounding rods are suitable for sites with high grounding requirements and challenging grounding engineering, as they facilitate faster dispersion of lightning surge and fault currents into the soil compared to traditional grounding methods. Therefore, they exhibit more pronounced grounding effectiveness under poor soil conditions. The moisture-retaining formula, ion release, deep grounding, and long-lasting resistance reduction of the electrolytic ion grounding rods address issues such as resistivity, corrosion resistance, and service life, giving the product a clear advantage in terms of grounding performance and adaptability, with a wide range of applications.

2. Product Specifications:

3. Installation Guide:

Step 1: Drilling with a diameter of 0.15 meters to 0.20 meters, depth of at least 3 meters.

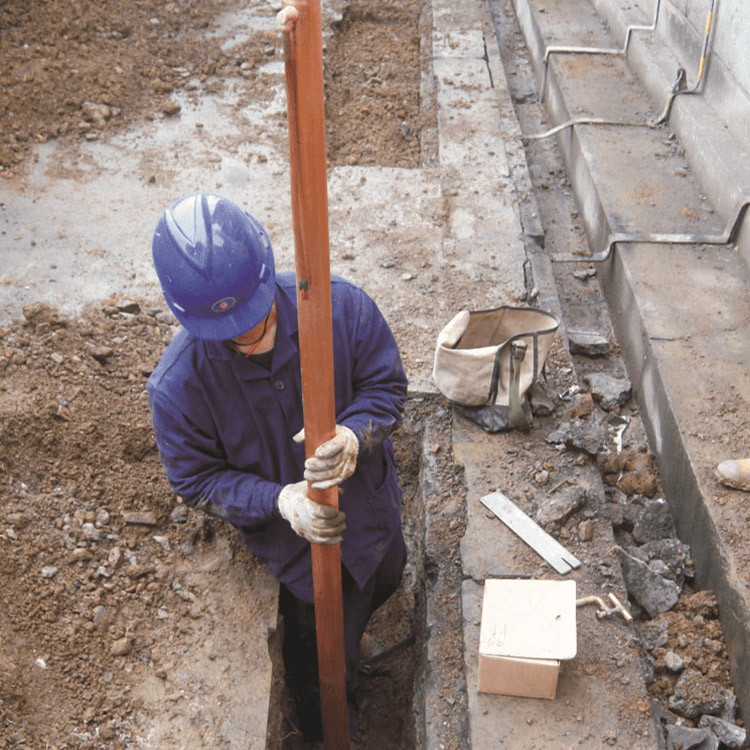

Step 2: Install by placing the grounding electrode into the hole.

Step 3: Connect the grounding copper wire attached to the grounding electrode with other grounding electrodes using HOTWeld fire-welding.

Step 4: Place backfill material, then sequentially add clean water and backfill material, stir, and then pour the electrolyte into the container. Mix it with the backfill material into a paste and pour it into the gaps around the grounding electrode.

Step 5: Fill in fine soil first, compact layer by layer.

4. Product Customization

Our company offers customized ion grounding rods in various materials, including pure copper ion grounding rods, electroplated copper ion grounding rods, and stainless steel ion grounding rods.
