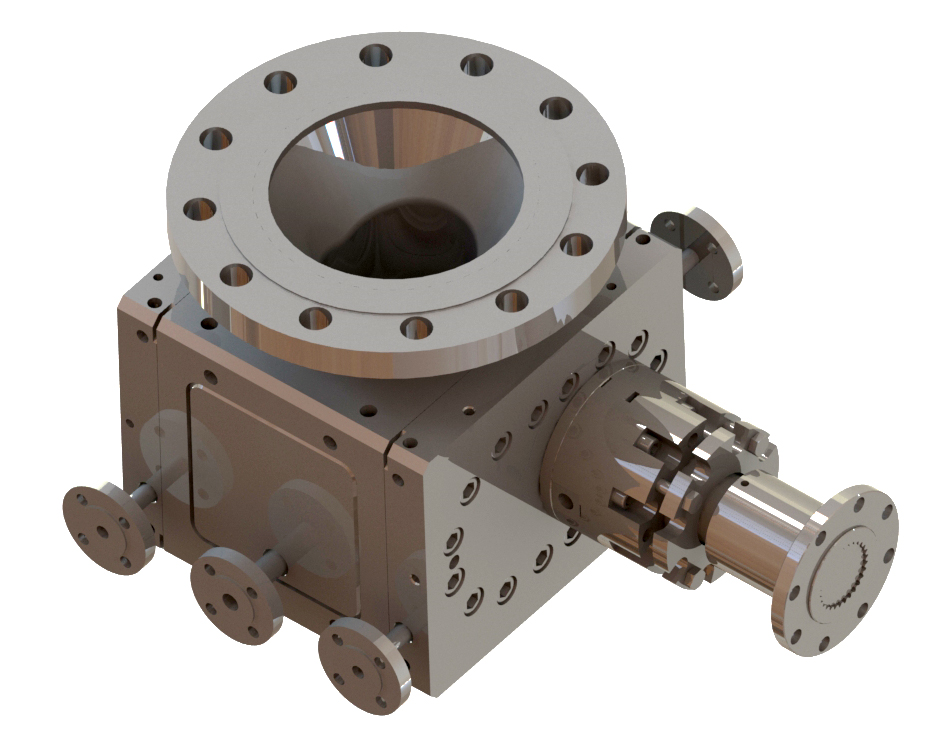

The melt pump at the bottom is primarily used for high-pressure conveying of high-temperature, high-viscosity media in vacuum reactors, featuring an oversized suction inlet design that can be directly connected to the bottom of the reactor.EvenUnder vacuum conditions, high-viscosity materials can be effectively吸入 into the melt pump, featuring high self-priming capability and high output pressure.
Structural materials
ShellBody: High-Temperature Tool Steel/Stainless Steel/Alloy Steel
Gear Nitriding steel, tool steel、Special steel and coated gear shafts
Slewing bearing: Tool Steel、Copper-aluminum alloys, nickel silver alloys, special materials, and coated bearings
Axial Seal Mechanical SealsSpiral Seal, Packing Seal、Double-end face mechanical seal with filling and spiral assembly sealing belt flushing liquid
Heating Method: Full jacketHeating Channel Heating Electric heating
Displacement specification: 5cc-12000cc
OperationParameters
MediumViscosity: 0.3mPa.s~40000Pa.s
JobTemperature: ≤350℃
Import Pressure: Vacuum(Vacuum)－4MPa
Export Pressure: 0~35MPa
Pressure difference： 25Mpa
HotMedia Pressure: ≤1.6MPa
*The parameters listed above are all values, and in some cases, they cannot be achieved simultaneously. If you have special requirements, we would be more than happy to provide you with a customized design.
Typical Applications
Feed material for polymerization reactions suitable for high vacuum, high temperature, and high viscosity substances.PET, PBT, PBAT, PA, PC, PP, PLA, PS, ABS, PE, etc.
RFSeries Model Table
Modelmodel | Displacementcc/r |
RF-05 | 5 |
RF-10 | 10 |
RF-20 | 20 |
RF-32 | 32 |
RF-50 | 50 |
RF-75 | 75 |
RF-100 | 100 |
RF-150 | 150 |
RF-200 | 200 |
RF-250 | 250 |
RF-350 | 350 |
RF-500 | 500 |
RF-800 | 800 |
RF-1000 | 1000 |
RF-1600 | 1600 |
RF-2500 | 2500 |
RF-4000 | 4000 |
RF-6000 | 6000 |
RF-12000 | 12000 |
Installation Method
During equipment installation, the inlet flange of the bottom pump is directly connected to the outlet of the reactor bottom. The gear pump is connected to the driving motor via a universal joint, which drives the gear pump to rotate. The bottom pump does not share a base with the motor and gear pump during installation, so the customer needs to fix the transmission motor themselves as required.
