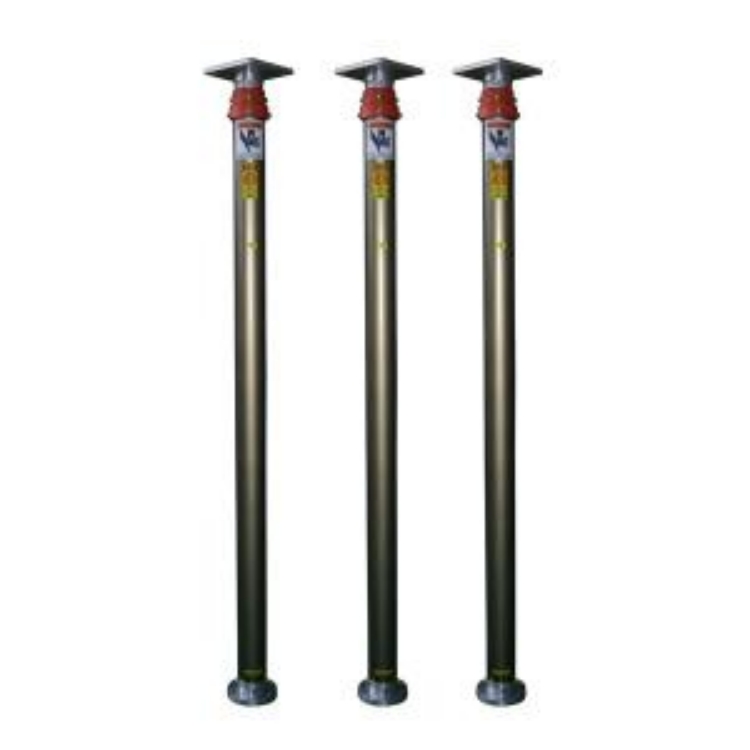

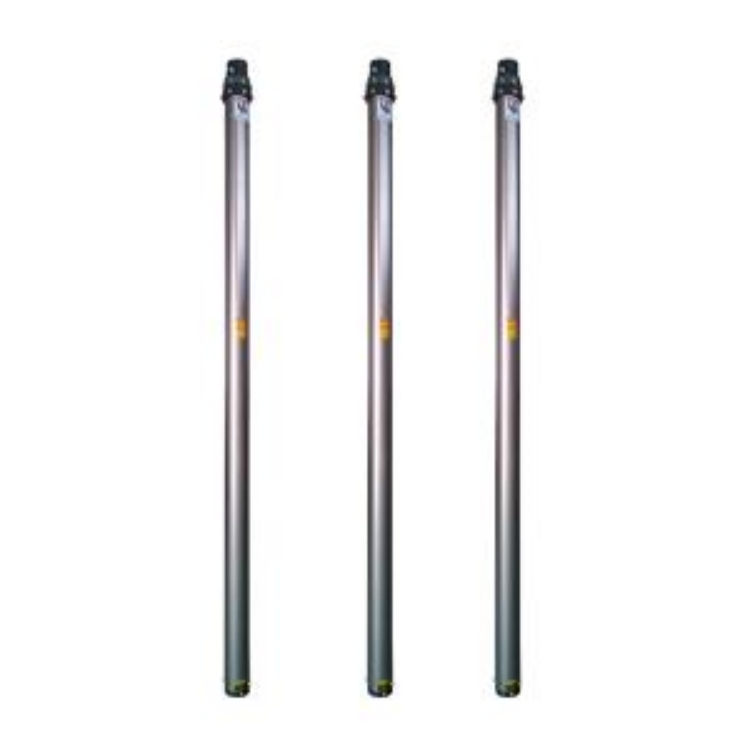

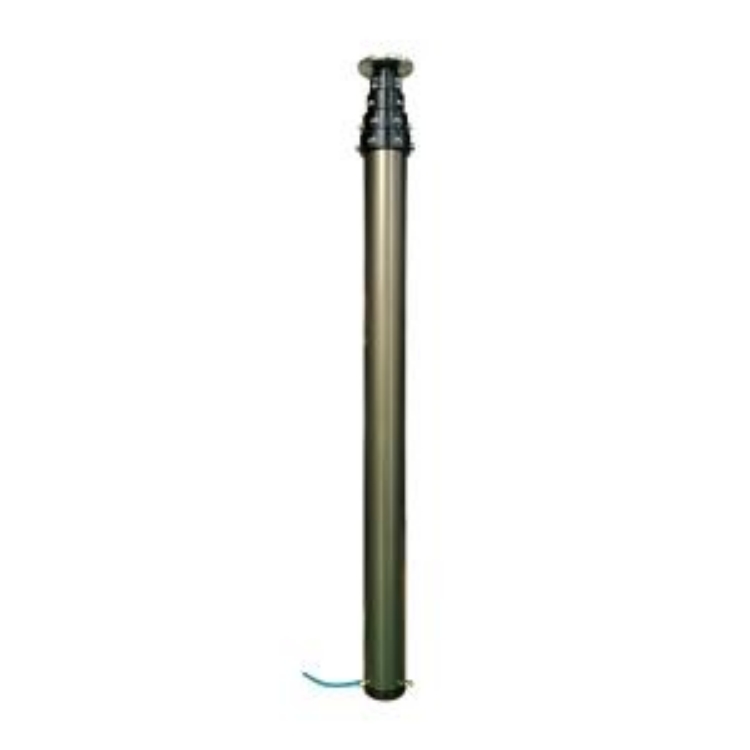

4Carriage-mounted portable pneumatic lifting rod
4-meter Vehicle-mounted Portable Air-powered Lift Arm
Square top and bottom flanges included
4-meter Vehicle-Mounted Portable Telescopic Lifter
Product Code: 81203040
2> Extended Height: 4 meters
3> Shrink Height: 1.8 meters
4> Head Load: 60kg
5> Number of Sections: 3
Outer diameter range of section 6: 57mm ~ 87mm
Material: Aluminum Alloy 6063/T5
Operating Temperature: -45~80°C0C
9> Included with circular top and bottom flanges
10> Weight of telescopic pole: 16 kg
Upper Flange Technical Parameters:
Top Flange Technical Parameters
Lower Flange Technical Specifications
Side Mount Bracket Technical Specifications
