Common Power (KW)

50

Standby Power (KW)

51

Power Factor

0.8

Frequency (Hz)

50

Output Voltage (V)

400V/230V

Waveform Distortion Rate

≤5％

Voltage fluctuation rate

≤±0.8％

Steady-state voltage regulation

≤±1％

Steady-state frequency adjustment rate

≤±0.5％

Power Supply Method

Communication, 3-phase 4-wire system

Start control DC power supply

12V DC Power Supply

Noise

≤78 dB approx.

Engineered dimensions (Length x Width x Height) (mm)

1790*900*1200

Unit Gross Weight (kg)

750KG

Engine

Model

TO520D/5

Number of cylinders

4

Output (kW)

50

Fuel specifications, grades

 0#、-10#/Diesel

Fuel Consumption (L/h)

(80% Load)

Lubricant Specifications, Grades

SAE 10W30OrCD）

Total Oil Volume (L)

8

Rated Speed (RPM)

1500

Coolant Capacity (L)

8

Generator

Brand

Dazai Power

Rated Power

50KW

Excitation method

Motor

Insulation Grade

H

Protection Class

IP23

Generator Set Control System (Built-in)

Master Controller

Group Wisdom

Manufacturer

Collective Wisdom

Main circuit breaker

Dazai Accessories

Display Content

LCD display can show three-phase voltage, three-phase current, frequency, power, oil pressure, water temperature, power factor, and cumulative operation time of power generation.

Standard operating conditions

Ambient temperature

≤40℃

Relative Humidity

≤60%

Altitude

≤ 1,500 meters

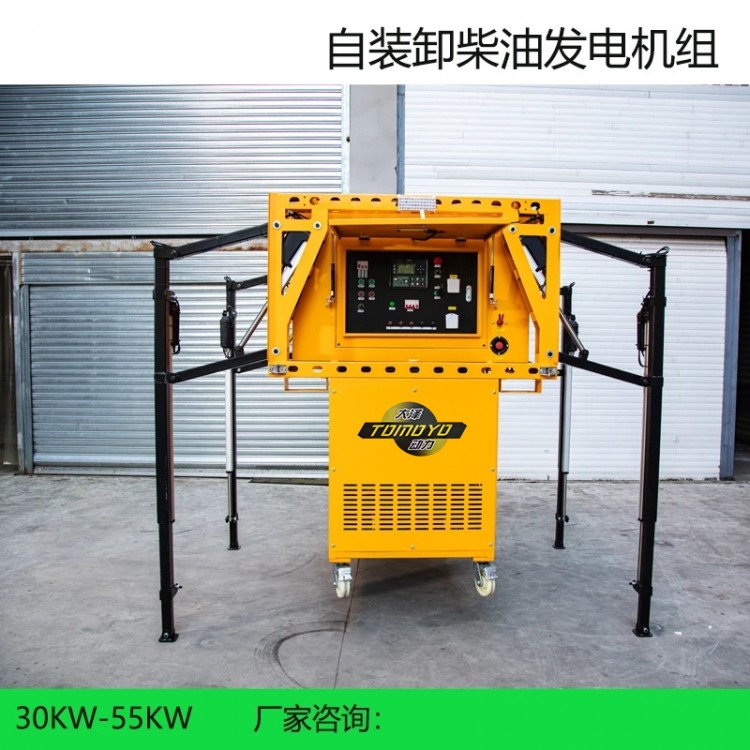

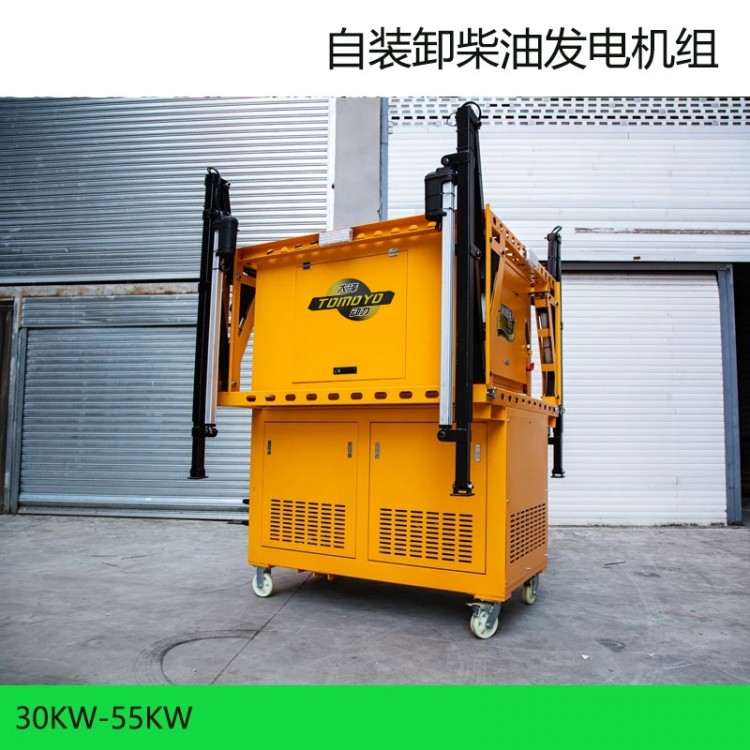

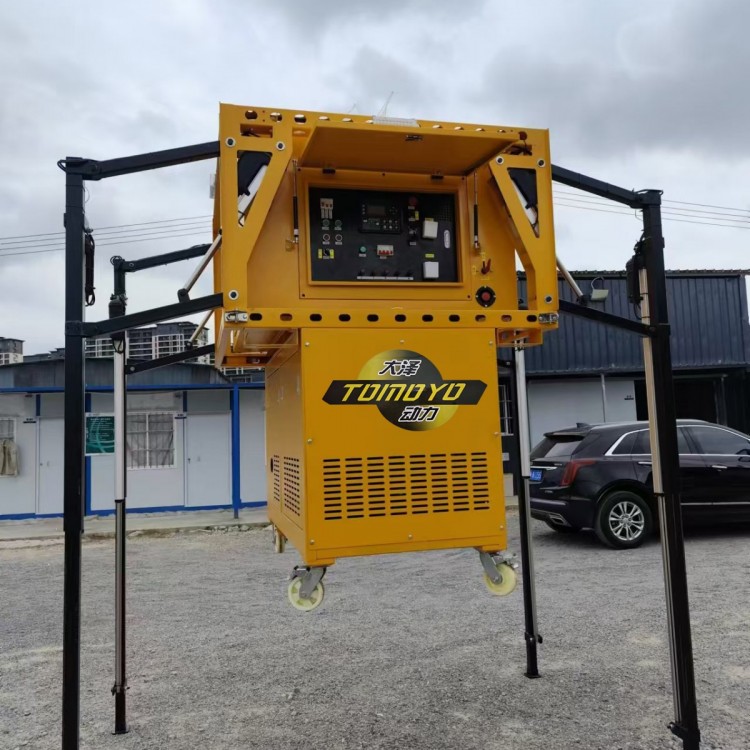

Automatic loading and unloading structure

Unfolded vehicle width

2480mm

Unfolded vehicle height

950mm

Closed width

1300mm

Closed Height

2600mm

Folding method

Electric, 4-1200N electric actuator

Erecting method

Electric, 4-5000N flashlight push rod

System Voltage

DC24V

Operation door light

Available

Warning Light

Four lamps

Wheel

Four wheels with swivel, two directional with brakes, two omnidirectional.

Direct Current Master Switch

Available

Battery Level Display

Available

Battery

2-60AH

Leg lifting protection device

Available

Individual leg height adjustment

Available

DC Contactor

3-100A
