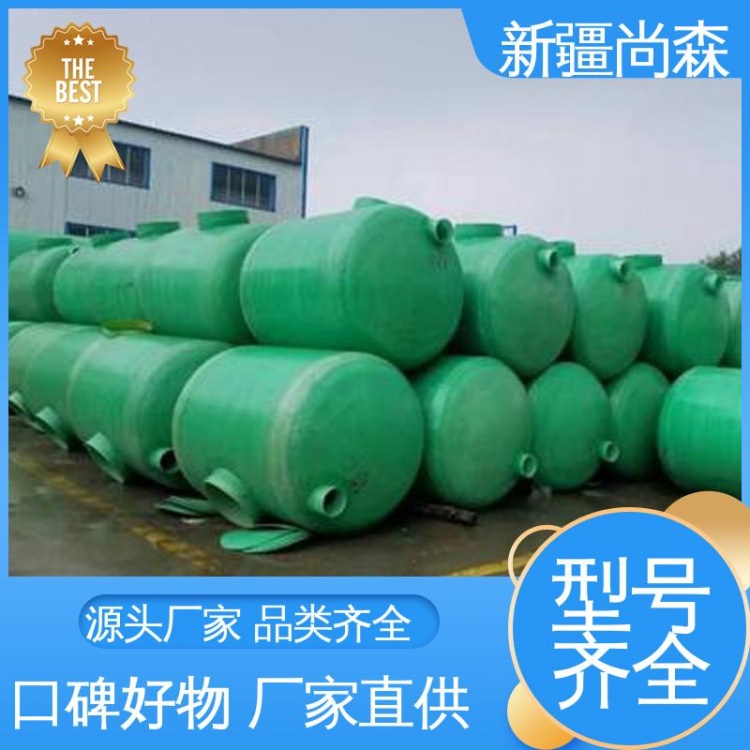

Glass-fiber Reinforced Plastic (GRP) septic tanks are equipment for treating domestic wastewater, primarily composed of synthetic resins and glass fiber reinforced materials. They offer advantages such as light weight, high strength, excellent flexibility, corrosion resistance, vibrant colors, and high luster. These tanks are widely used in industries including chemicals, petroleum, construction, textiles, aviation, marine, transportation, electricity, metallurgy, machinery, food, papermaking, and environmental protection. GRP septic tanks occupy less land area, approximately 40% of the space of traditional septic tanks, making them particularly suitable for modifying drainage systems and installing septic tanks in old urban areas.
Glass fiber reinforced plastic fire reservoirs are equipment for the fire protection field, featuring high strength, short construction time, and quick installation. These units can be freely combined to form fire reservoirs or water tanks of various capacities to meet the fire protection needs of different locations. For instance, the specifications of glass fiber reinforced plastic water tanks range from 10 cubic meters to 200 cubic meters, and can be freely combined to create larger capacity fire protection facilities as required. These facilities undergo strict water filling tests prior to backfilling to ensure the quality of the workmanship, and small vehicles can travel through them post-backfilling without any issues.
Our glass fiber firewater tanks come in sizes ranging from 10 cubic meters to 200 cubic meters, and can be customized to create larger capacity fire-fighting facilities as needed. These facilities undergo rigorous water filling tests before backfilling to ensure the quality of the construction. Additionally, small vehicles can travel back and forth post-backfilling without any issues.
Glass fiber reinforced plastic fire water tanks are made from lightweight, corrosion-resistant, and durable materials.
Lightweight and durable: Compared to traditional steel water tanks, fiberglass material is lighter and easier to install and adjust in position.
Corrosion-resistant durability: Resists the侵蚀 of various chemicals, extends the lifespan of water tanks, and eliminates the hassle of frequent replacements and maintenance.
High pressure resistance: The glass fiber material boasts excellent pressure resistance, capable of withstanding significant water pressure, ensuring that the water tank does not crack or leak during use.
Glass fiber reinforced plastic (GFRP) pipes are a type of piping made from glass fiber reinforced plastics (also known as FRP), featuring a variety of excellent performance characteristics and application areas.
Lightweight and High-Strength: Fiberglass piping features low density and light weight, while maintaining high strength, making it convenient for transportation and installation.
Corrosion-Resistant: FRP pipes offer excellent chemical resistance, capable of withstanding the erosion from acids, alkalis, salts, and various other corrosive media, making them suitable for a wide range of harsh environments.
Good thermal resistance: The glass fiber pipe has excellent heat and cold resistance, maintaining stable performance over a wide temperature range.
Excellent Abrasion Resistance: It also boasts good abrasion resistance, capable of withstanding wear and extending its service life.
Excellent Insulation Properties: Fiberglass pipe boasts superior insulation properties, contributing to reduced energy waste.
Non-toxic and free from secondary pollution: Glass fiber reinforced plastic pipes are non-toxic and free from secondary pollution, meeting environmental protection requirements.
High installation efficiency: Fewer glass fiber pipeline joints, easy and quick installation, enhancing construction efficiency.
One, Product Introduction
Integrated Rainwater Pumping Station, also known as Integrated Pumping Station, Integrated Pre-fabricated Pumping Station, Integrated Lift Pumping Station, and Integrated Sewage Pumping Station, is an underground system used for collecting rainwater and sewage, followed by preliminary mixing. The treated sewage is then pressurized and lifted through pipelines for delivery to a sewage treatment plant.
Integrated pump stations provide potential and pressure energy for water, solving problems such as drainage, irrigation, and water resource allocation under non-spontaneous flow conditions. As the mainstream technology, traditional concrete pump stations are used in drainage systems. Over time, traditional pump stations have also revealed some drawbacks that are difficult to overcome, such as easy corrosion of pool walls, sedimentation of impurities in the pump pit, and low integration difficulty, making effective management and monitoring challenging.
An integrated pumping station is a pre-fabricated, buried type pumping station, completely customized to meet customer specific requirements and manufactured in the factory. Our company, Pin Yue Environmental Protection, now offers a variety of material options for the cylinder: fiberglass integrated pumping stations, PPH integrated pumping stations, HMPP integrated pumping stations, and buried type box-pumping integrated fire pump stations, etc. They are internally equipped with pumps, gratings, pipelines, valves, instruments, control equipment, and maintenance facilities, significantly ensuring the cost-effectiveness and operational reliability of the system. With numerous successful operational cases, integrated pumping stations are widely used in urban flood prevention, rainwater and wastewater collection and treatment, and other fields.
2. Product Principle
The liquid level information from the pressure sensor or float ball feedback to the control system is then used to adjust the pump operation based on the set parameters. When the liquid level reaches the predetermined level for pump activation, the control system initiates the pump, pumping wastewater from the pump station to the municipal wastewater pipeline outlet. If the wastewater level falls below the set level, the system shuts down the pump. This continuous cycle ensures the smooth operation of the integrated pump station.
Three, the primary function of the integrated pumping station:
1. Collect urban rainwater, river water, and lake water to prevent waterlogging due to rising water levels, and then transport the water to waterworks, residential use, and agricultural irrigation for municipal drainage.
2. Collects wastewater directly discharged from municipal factories and residential areas, mixing it using grates and submersible pumps at the wastewater pumping stations to prevent blockages like sludge in the pipelines. Increase water level and pressure to transport it to the wastewater treatment plant.
The wastewater treatment plant's function is to receive wastewater from pumping stations, then undergo filtration and disinfection processes before being sent to the recycled water channel for industrial use and toilet flushing.
Four, integrated pumping station installation method
Based on different operating conditions, different installation methods are adopted to ensure the long service life and high efficiency of the integrated pump station to a great extent. Under normal circumstances, it is recommended to use:
1. Full-integrated sub-surface wet well pump station installation method; in addition, other methods can be adopted.
External Valve Wet Well Pump Station
3. Dry and wet separation pump station
4. Pump stations with installation methods including repair rooms
Customers may decide the specific installation method for the integrated pumping station based on the design or the specific on-site usage conditions.
Five, Main Application Environments
1. Collection and conveyance of wastewater from residential or rural communities
2. Wastewater collection and conveyance from urban sewage treatment plants
3. Collection and conveyance of rainwater from low-lying areas in urban districts
4. Construction and Renovation of Municipal Sewerage Networks
5. Renovation and Expansion of the Old Pump Station
6. Lake water cycle
Six, data required for pump station customization:
1. Pump Station Inflow Q (tons/day), with a significant variation coefficient when quite large
2. Quantity and head of required pumps, one for use and one for standby, or two for use and one for standby
3. Outdoor ground elevation H0 (meters), or relative elevation ±0.00 (meters) can also be used.
4. External connection pipe bottom elevation H1 (meters), external connection pipe diameter DN
5. External outlet pipe height H2 (meters), external outlet pipe diameter DN
6. Selected grille type, basket grille or crushing grille
7. Electric control cabinet type, outdoor weatherproof control cabinet or landscape management room
