Section 1: Product Introduction
Integrated Rainwater Pumping Station, also known as an Integrated Pumping Station, Integrated Pre-fabricated Pumping Station, Integrated Lift Pumping Station, and Integrated Sewage Pumping Station, is buried underground for collecting rainwater and sewage. It then undergoes mixing and other preliminary treatment before the treated sewage is pressurized and lifted for transportation through pipelines to the sewage treatment plant.
Integrated pump stations provide potential and pressure energy for water, addressing the issues of drainage, water supply, and water resource allocation under non-spontaneous flow conditions. As the mainstream solution today, traditional concrete pump stations are used in drainage systems. Over time, traditional pump stations have also revealed some drawbacks that are difficult to overcome, such as easy corrosion of pool walls, sedimentation of impurities in the pump pit, and low integration difficulty, making effective management and monitoring challenging.
An integrated pumping station is a pre-fabricated, underground-type pumping station that is fully customized to meet the specific requirements of the customer and is assembled at the factory. Our company, Pine Yue Environmental Protection, now offers a variety of material options for the cylinder: fiberglass reinforced plastic integrated pumping stations, PPH integrated pumping stations, HMPP integrated pumping stations, and underground box-pump integrated fire pumping stations, among others. They are internally equipped with pumps, grates, piping, valves, instruments, control equipment, and maintenance facilities, ensuring a high cost-effectiveness and operational reliability of the system. With numerous successful operation cases, integrated pumping stations are widely used in urban waterlogging prevention, rainwater and wastewater collection and treatment, and other fields.
2. Product Principle
The liquid level information from the pressure sensor or float ball feedback to the control system is then used to adjust the pump's on/off operation based on the set parameters. When the liquid level reaches the set level for pump activation, the control system initiates the pump, pumping wastewater from the pump station to the municipal wastewater pipeline outlet. If the wastewater pumping falls below the set level, the system shuts down the pump. This continuous cycle ensures the smooth operation of the integrated pump station.
Three, the primary function of the integrated pumping station:
1. Collect urban rainwater, river water, and lake water to prevent waterlogging due to rising water levels, and then transport the water to waterworks, residential use, and agricultural irrigation for municipal water accumulation.
2. Collects wastewater directly discharged from municipal factories and residential areas, mixing it using grates and submersible pumps at the wastewater pump station. This ensures the pipes are free of silt and blockages, and the water level is increased for pressurized transport to the wastewater treatment plant.
The wastewater treatment plant's role is to receive sewage transported from pumping stations, undergo processes such as filtration and disinfection, and then be sent to the reclaimed water channel for industrial use and toilet flushing.

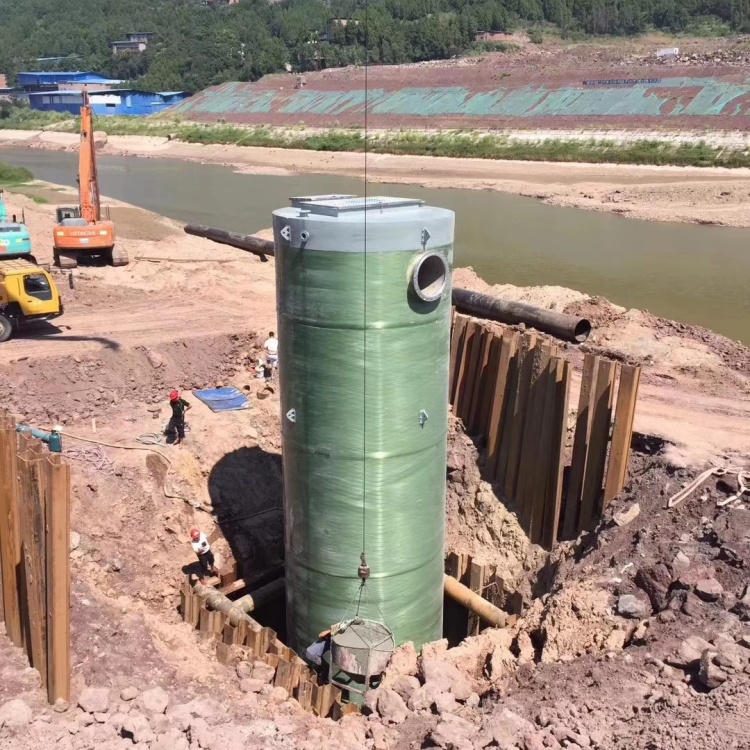

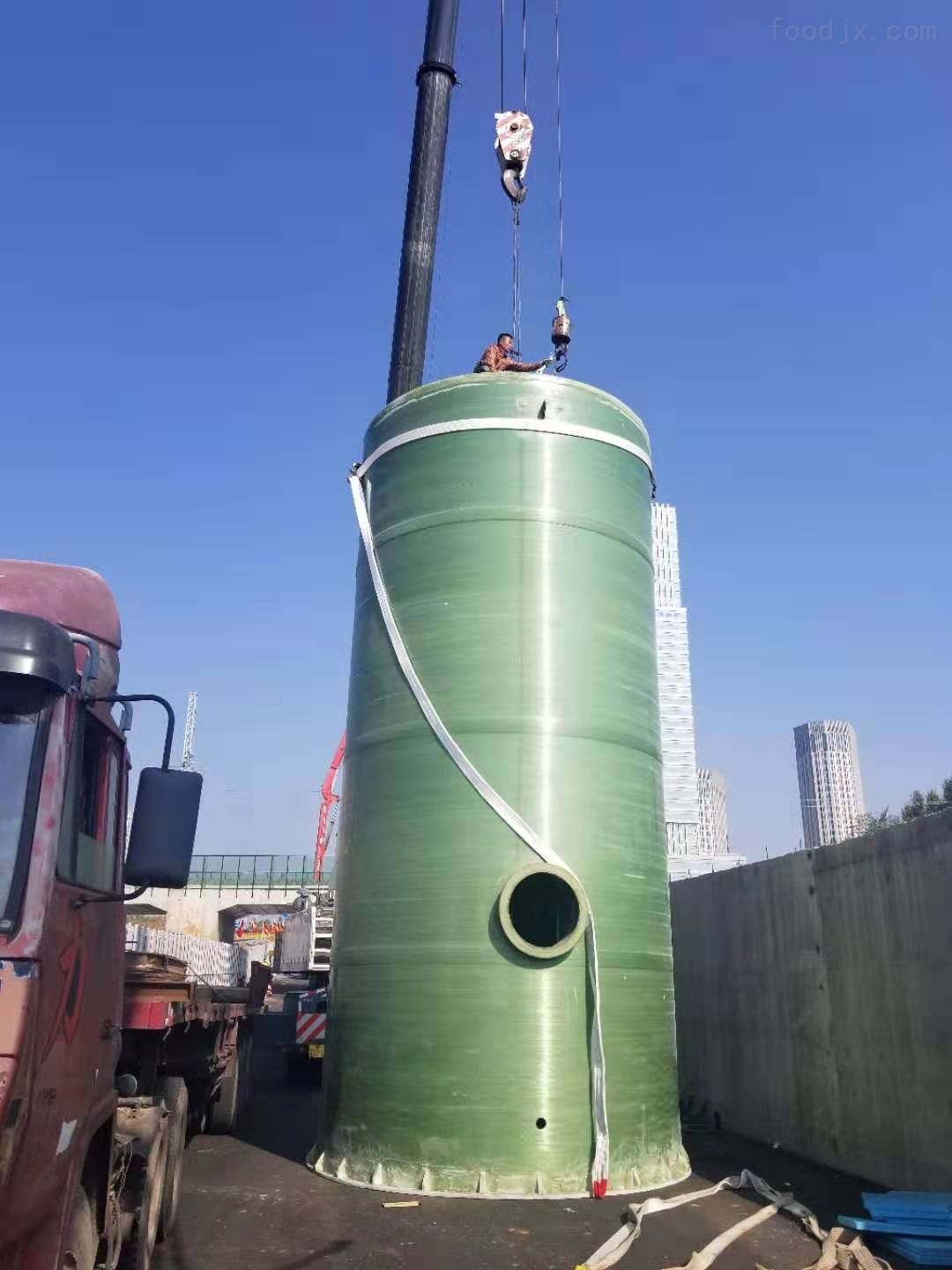

Four, integrated pump station installation method
According to varying operating conditions, different installation methods are adopted to greatly ensure the long service life and high efficiency of the integrated pump station. In general, it is recommended to use:
1. Full-integrated sub-surface wet well pump station installation method, in addition to which, the following can be adopted:
2. External Valve Sump Pump Station
3. Separate dry and wet pump stations
4. Pump stations with installation options including maintenance rooms
Customers may decide on the specific installation method of the integrated pumping station based on the design or the actual field usage.
Five, Main Application Environments
1. Collection and conveyance of wastewater from residential communities or rural areas
2. Collection and conveyance of wastewater from urban sewage treatment plants
3. Collection and conveyance of rainwater from low-lying areas in urban districts
4. Construction and Renovation of Municipal Sewage管网
5. Renovation and Expansion of the Old Pump Station
6. Lake Water Cycle
Six, data required for pump station customization:
1. Pump Station Inflow Q (tons/day), coefficient of variation when quite large
2. Quantity and head of required pumps, one for use and one for standby, or two for use and one for standby
3. Outdoor ground level elevation H0 (meters), or relative elevation ±0.00 (meters) may also be used.
4. Inlet pipe external extension bottom elevation H1 (meters), inlet pipe external extension diameter DN
5. Outlet pipe extension height H2 (meters), outlet pipe extension diameter DN
6. Selected grille type, basket grille or crushing grille
7. Type of electrical control box, outdoor rainproof control cabinet or landscape management room
