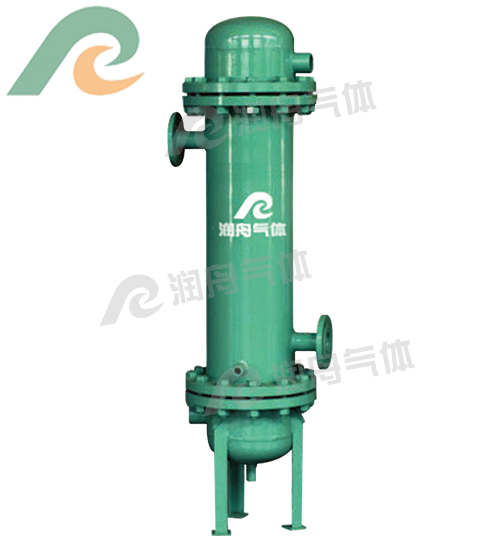

Product Overview
Utilizing advanced dual-metal finned tube technology from the aviation industry for the condenser, it significantly increases the heat transfer area within the same volume, enhancing cooling efficiency.The series has a wide operating condition range and is an ideal cooling tool for compressed air.
It adopts national aviation industry advanced bimetallic finned tubes as the condenser pipe, which in the same volume increased the heat dissipating surface greatly, and it is of high using cooling efficiency, wide range of fitting operating conditions,is an ideal cooling tool for compressing air.

Technical Specifications | Technique Data
Work Pressure: 0.6~0.8 Mpa (0.8~3.0 Mpa available upon request)
Working pressure: 0.6 to 0. 8 Mpa(it can provide 0.8 to 3.0 Mpa by requirements.)
Import Temperature: ≤120℃≤Discharge temperature at 120℃: ≤42℃Outlet temperature:≤42℃
Cooling Water Temperature: ≤32℃≤Water Pressure at 32℃: 0.2~0.4 Mpa Cooling Water Pressure: 0.2~0.4 Mpa
Pressure Drop: ≤0.02 Mpa
