Product Description Principle
A filter integrating spiral separation and coalescence-type secondary purification, directly intercepts oil and water in compressed air, and through cyclonic separation, inertial collision, and gravity sedimentation, ensures that over 98% of oil and water, and dust in the compressed air do not enter the next stage of the pipeline.
The filter, an intergration of spiral separator and secondary purification of agglom erate filter, intercept the oil water in compressed air directly; through the cyclone separator, inertial impaction, gravity setting, the oil water,
dust whose density >98% in compressed air will not enter the next level of the pipeline.

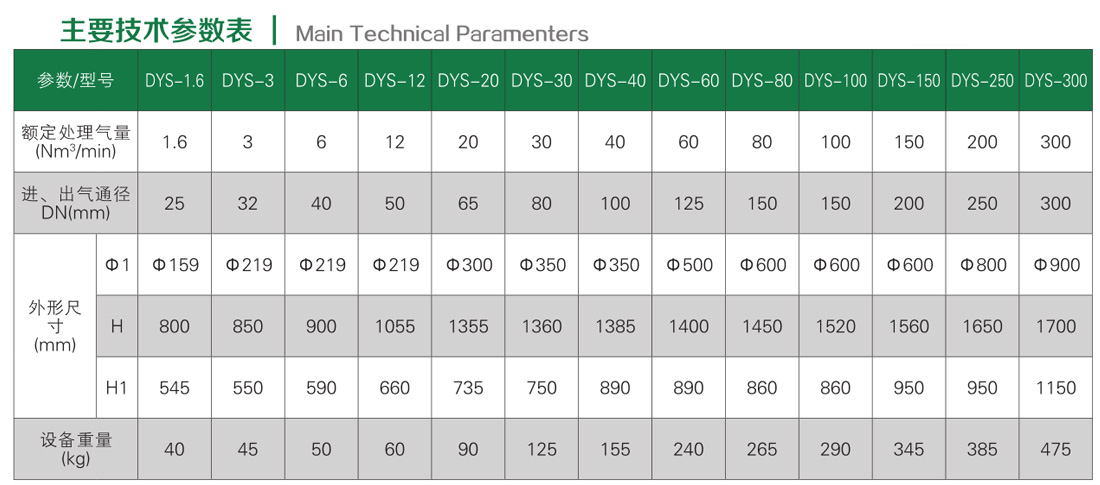

Technical Specifications | Technique Data
Work Pressure: 0.6~0.8 Mpa (0.8~3.0 Mpa available upon request)
Inlet Temperature: ≤50℃
Gas-liquid separation efficiency: >98%
Pressure Loss: ≤0.02 Mpa
Working pressure: 0.6 to 0.8 Mpa (it can provide 0.8 to 3.0 Mpa by requirements)
Intake temperature: ≤50℃
Separating efficiency of oil and water: >98%
Pressure loss: ≤0.02 Mpa
