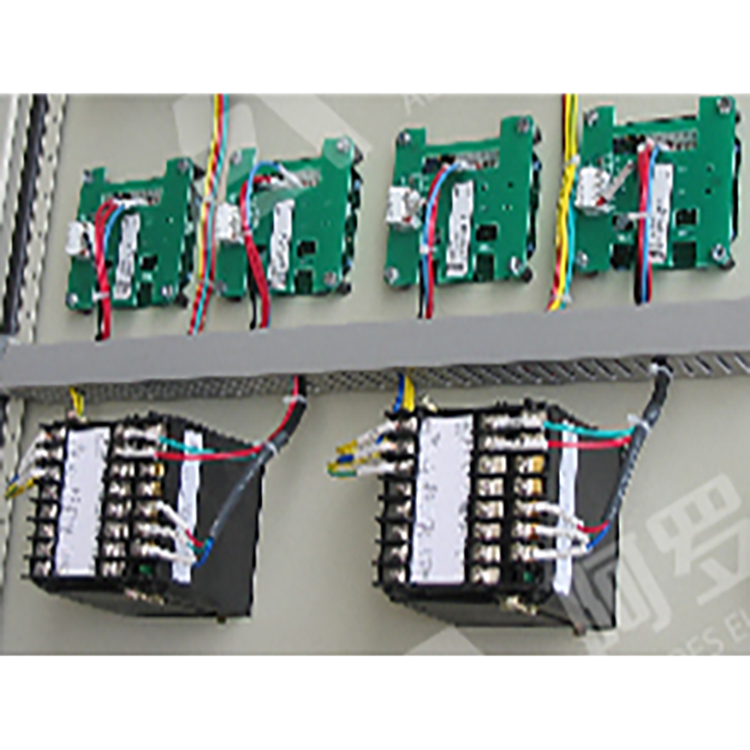

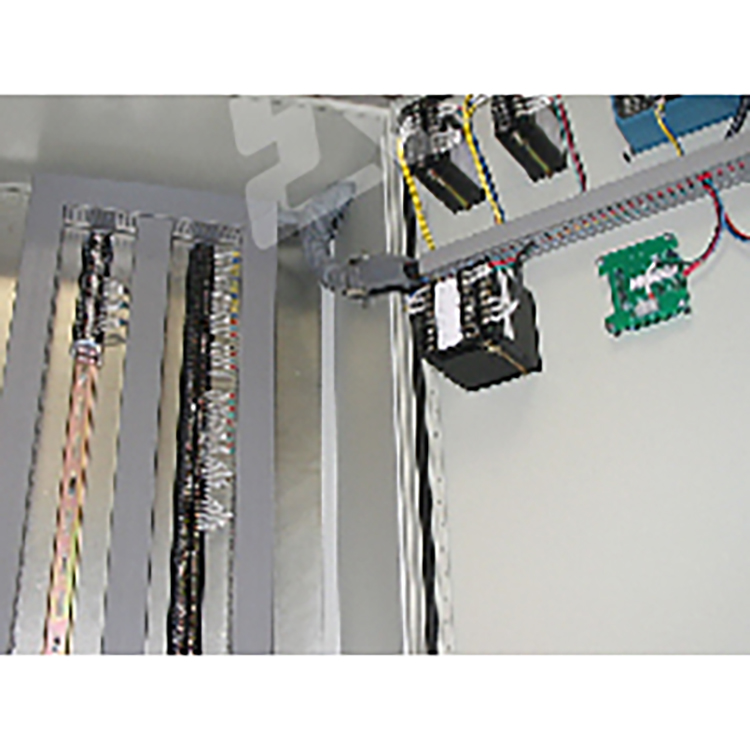

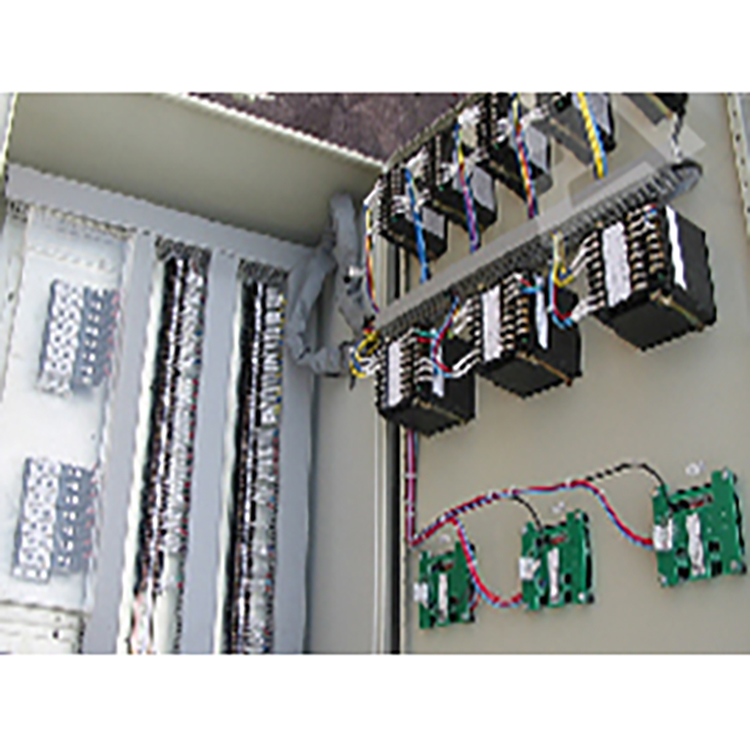

On-site Instrument Cabinet ZM807

Local Instrument Box Function Description: Protects the instruments, commonly installed on-site for operators' convenience in observing and recording instrument data. Capable of signal processing for instruments and signal transmitters, and remotely feeding back signals to the electrical control system. Equipped with various instruments, indicator devices, auxiliary control components, etc., it measures and analyzes objects, records and displays data, and supports bus communication.

       Aroshi Electric Control Cabinet General Technical Parameters:

       Manufacturing Standards:

       GB.7251.12-2013

       Quality System Standards:

       GB/T19001-2008 IDT ISO9001:2008

       Electrical Control Cabinet Specifications:

Rated Voltage

       380-420V/500-690V

Rated Current

       32A-6300A

3. Segmentation Capability

       ≥30KA

4. Cabinet Material

Cold-rolled steel plate, Stainless Steel 304

5. Cabinet exterior dimensions

Customized Non-standard Cabinet

       2000*300*600/800

       2000*600*600/800

       2000*800*600/800

       2000*1000*600/800

       2000*1200*600/800

6. Door Opening Method

Front-to-Back Order / Front-to-Back Double / Front-Double Back-Double / Front-Double Back-Single

7. Color

RAL 7032/RAL 7035/ZIMU Standard Colors

8. Protection Grade

       IP30/IP54/IP65

9. IK Resistance to External Mechanical Impact

Steel Body: IK 10

Steel plate glass front door control cabinet: IK 08

       Aroce Storage Cabinet Structure:

Standard cabinet units, customized non-standard cabinet units

       Common Component Brands:

ABB, Schneider, Siemens, Mitsubishi, OMR, LS, Delixi, People's Electrical, Changshu Electrical, Weite, IDEC.
