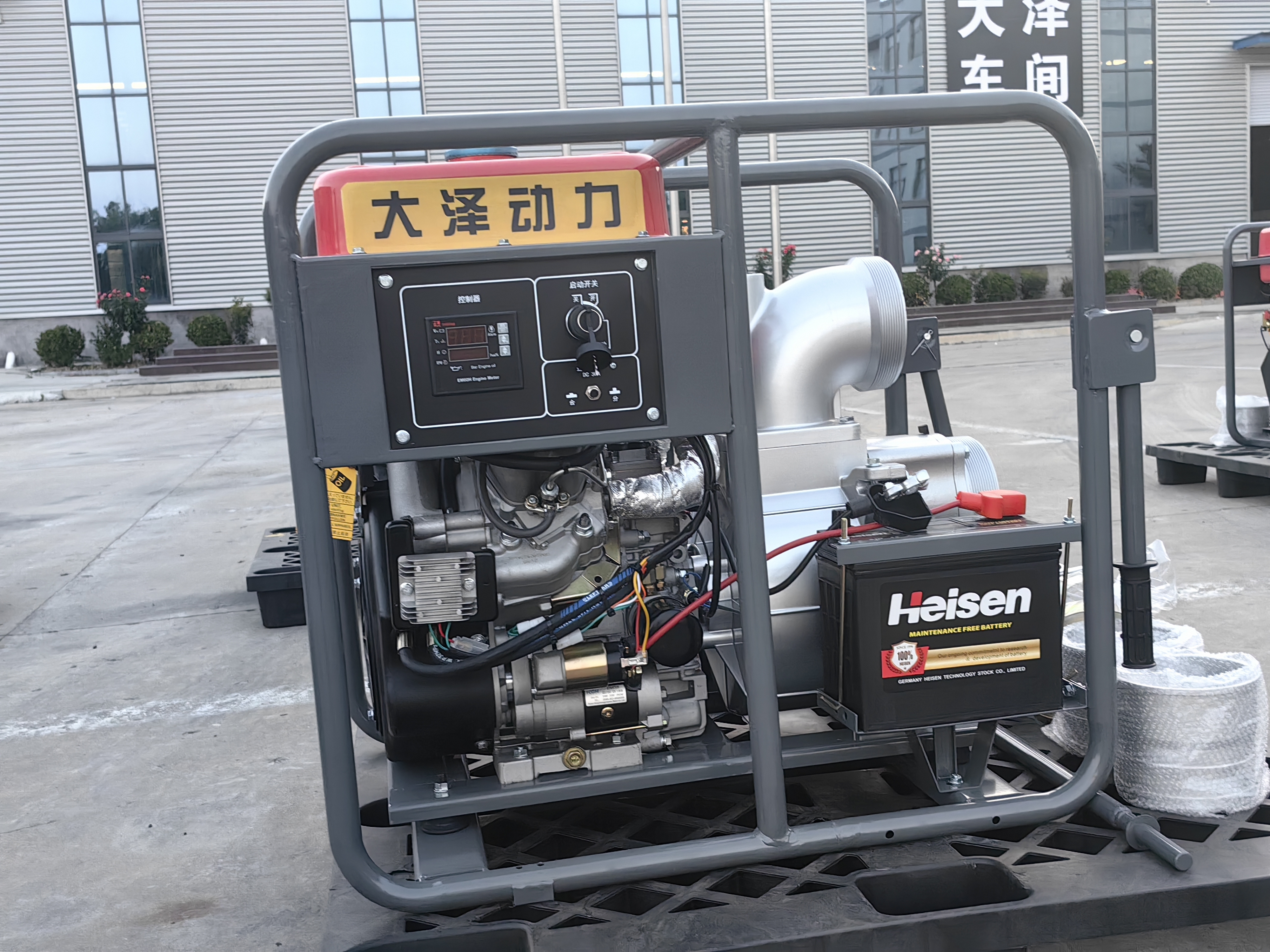

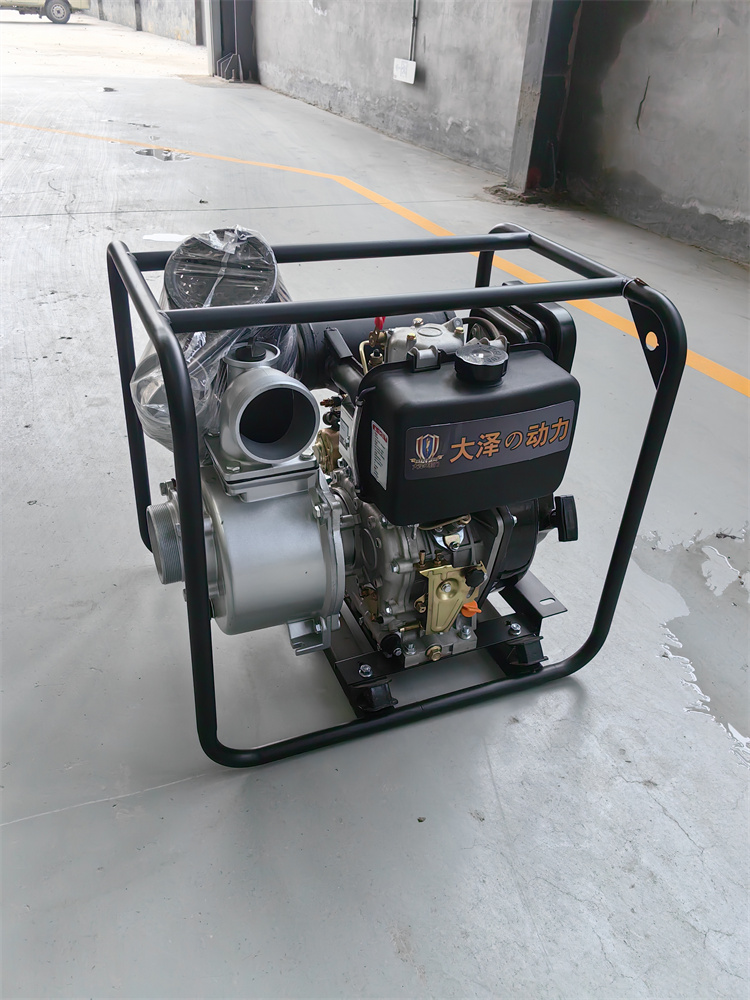

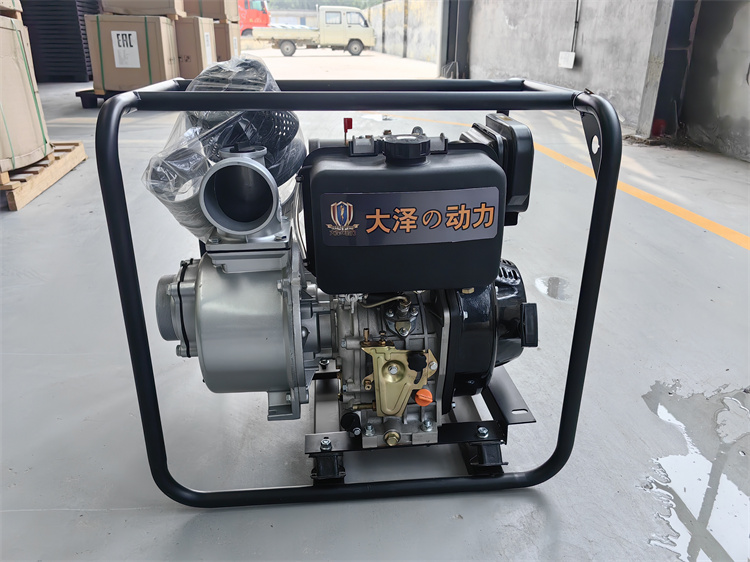

4-inch and 6-inch diesel engine driven pump

Product Model:  TO40EW

Inlet diameter:4Inch

Outflow port diameter:4Inch

Standard Flow Rate   ：  100m3/h

Traffic         ：  110m3/h

Head pump capacity         ：  25M

Suction Head         ：  8M

Rated Speed   ：  3600rpm

Fuel Consumption       ：   245g/kw.h

Power Model    ：  ET1V86F(AGrade)

Engine type Single-cylinder, four-stroke, diesel engine

Bore diameterXItinerary:88*75

Displacement           ：      500CC

Utilize fuel     ：  Diesel

Cooling Method     ：  Forced air cooling

Lubrication System     ：  Jet spray, forced lubrication

Engine oil capacity     ：  1.65L

Fuel Tank Capacity     ：  10L

Startup Method     ：  Manual start

Net    Heavily       ：  60pounds

外形尺寸: External Dimensions     ： Long64High62Wide51mm

-----------------------------------------

Model:  TO60EW

Inlet diameter:6N/A

Outlet Diameter:6Inch

Standard Flow Rate   ：  150m3/h

Traffic       ：  170m3/h

Flow Rate       ：  20M

Suction head       ：  8M

Rated Speed   ：  3000rpm

Fuel Consumption     ： 245g/kw.h

Power Model   ：  ET1V90F(AGrade)

Pump discharge outlet: Clamp type: Flange connection, bolt hole diameter

Engine Type: Single Cylinder, Four-Stroke, Diesel Engine

Rated Power    ： 7KW

Utilize fuel    ： Diesel

Cooling Method    ： Forced air cooling

Oil capacity    ：  1.65L

Fuel Tank Capacity    ：  20L

Startup Method    ：  Hand/Electric Start

Operation Time     :   10-15h

Net    Please provide the Chinese content to be translated.       ：  80pounds

Dimensions:  800*630760MM
