Wall saw Wall cutting machine Shear wall cutting machine guidance quotation

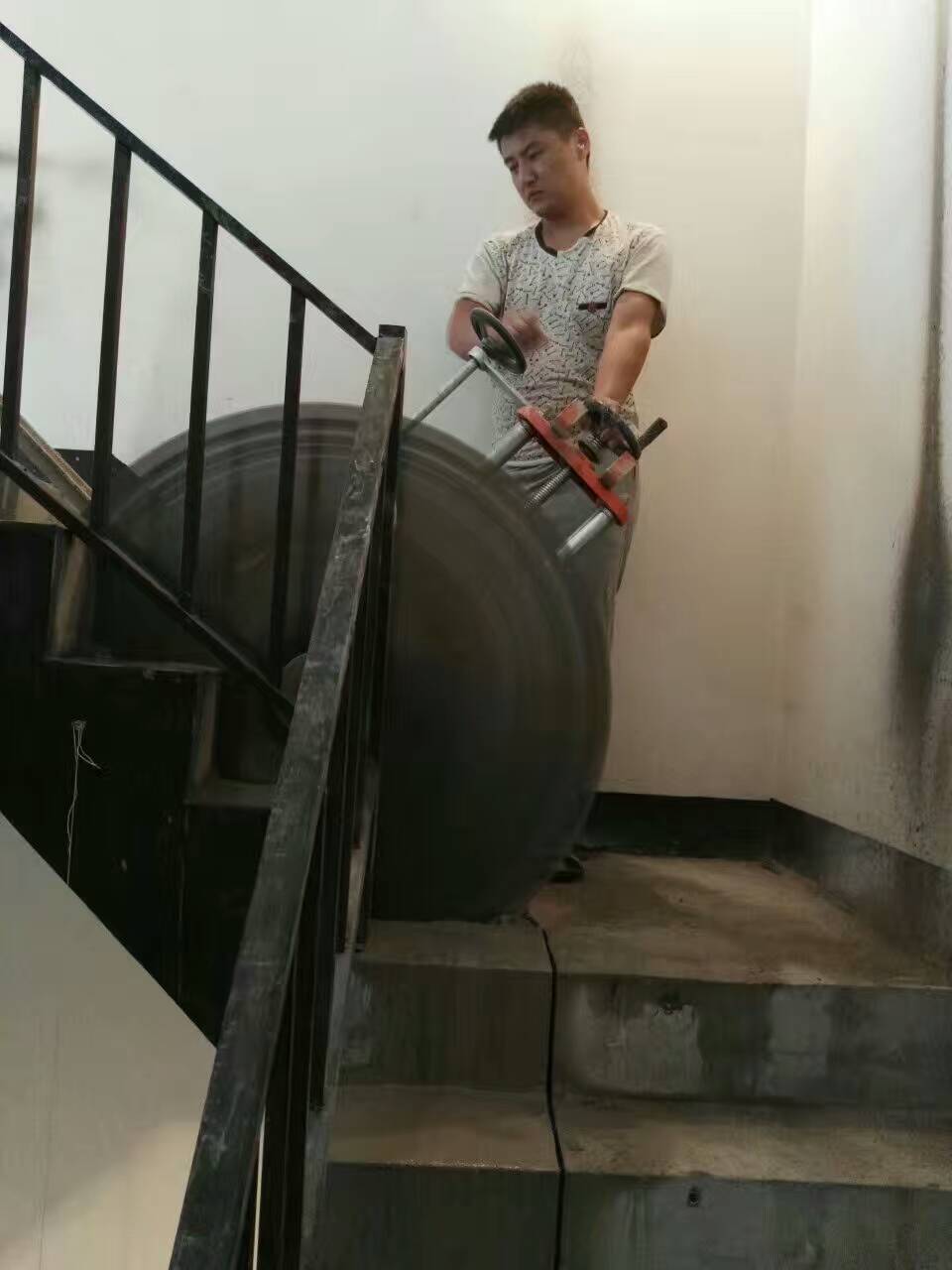

Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door openings, windows, and elevator shafts. They offer non-destructive structure, forming in one go, which not only avoids damaging the building structure from traditional hammering work but also saves time, materials, and labor in drilling circular holes, as well as significantly reduces the time and costs for adjustments.

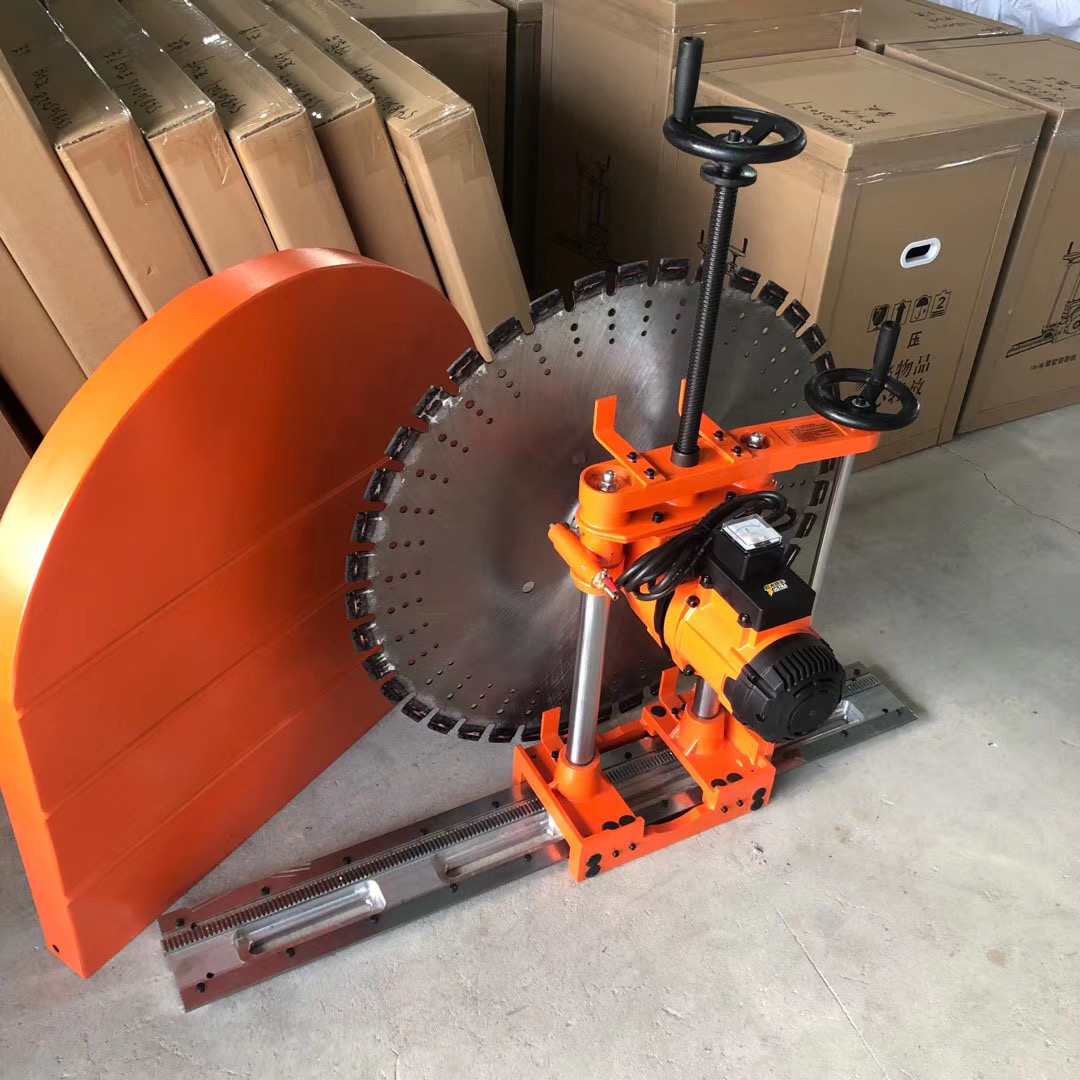

This machine is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, the machine has gears that won't slip off, and can only be moved by handwheels), install the blade, the guard, then turn on the water and electricity, and operate with both handwheels. The middle handwheel controls the up and down movement of the blade, and the right-hand handwheel controls the machine's movement along the track. Efficiency varies by individual, generally we24-inch walls, 10 minutes per meter.  Single cut (cut once, lift the knife, move to the next cutting spot, then cut again).

Voltage220V, Frequency: 50-60Hz

Power: Model 8006680W (equipped with 800 saw blades, cutting 320mm)
Model 10007500w (contains 1000 saw blades, cuts up to 420mm)
1200 Model7680w(1200 saw blades, cuts 520mm)

Mainframe Weight:35KG gross weight for a full set, 75KG total gross weight

Saw blade lifespan200-400m

Cutting Efficiency:2-3m/h
