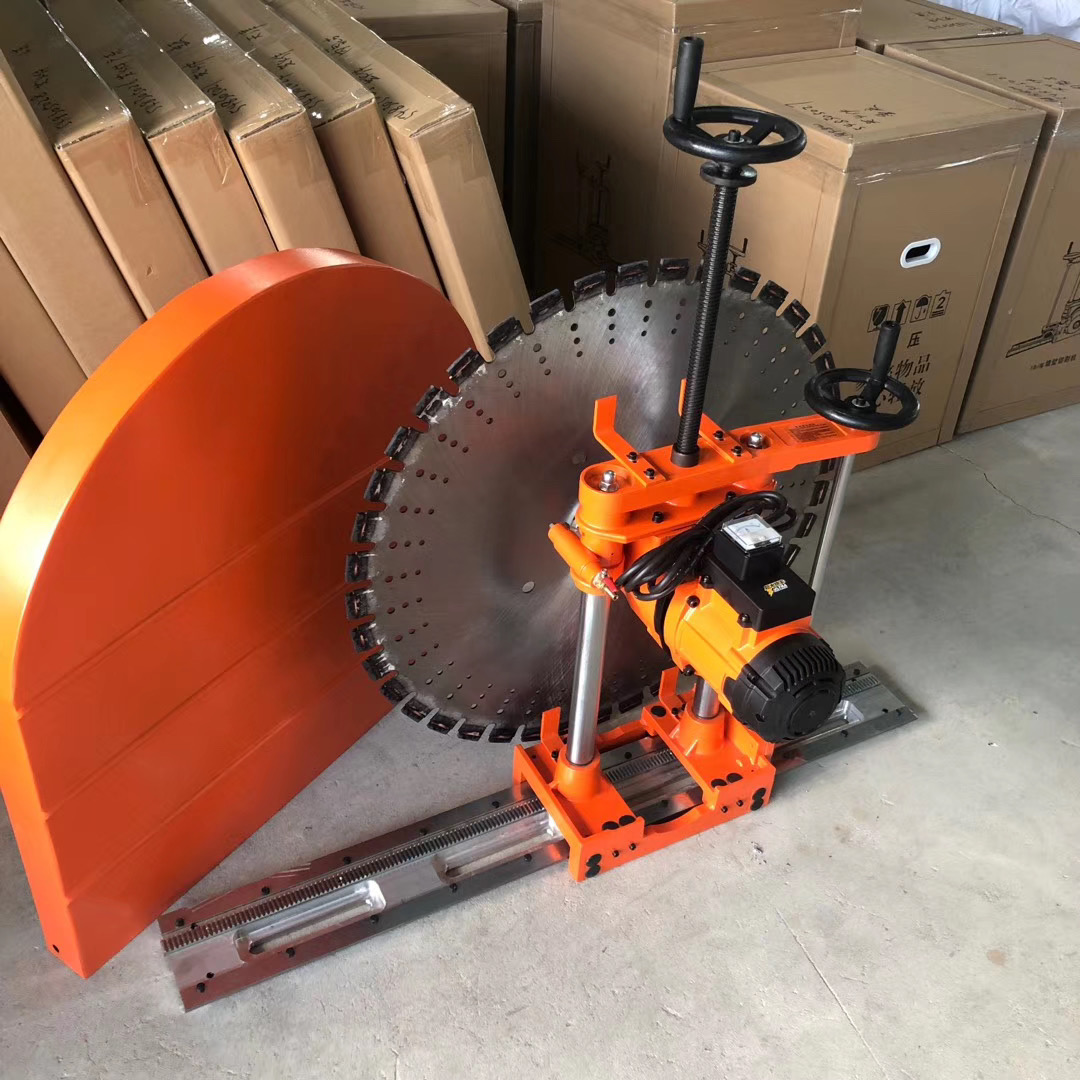

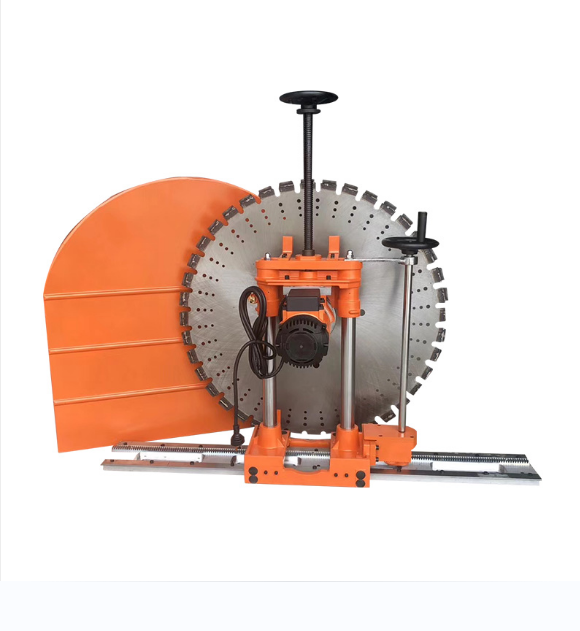

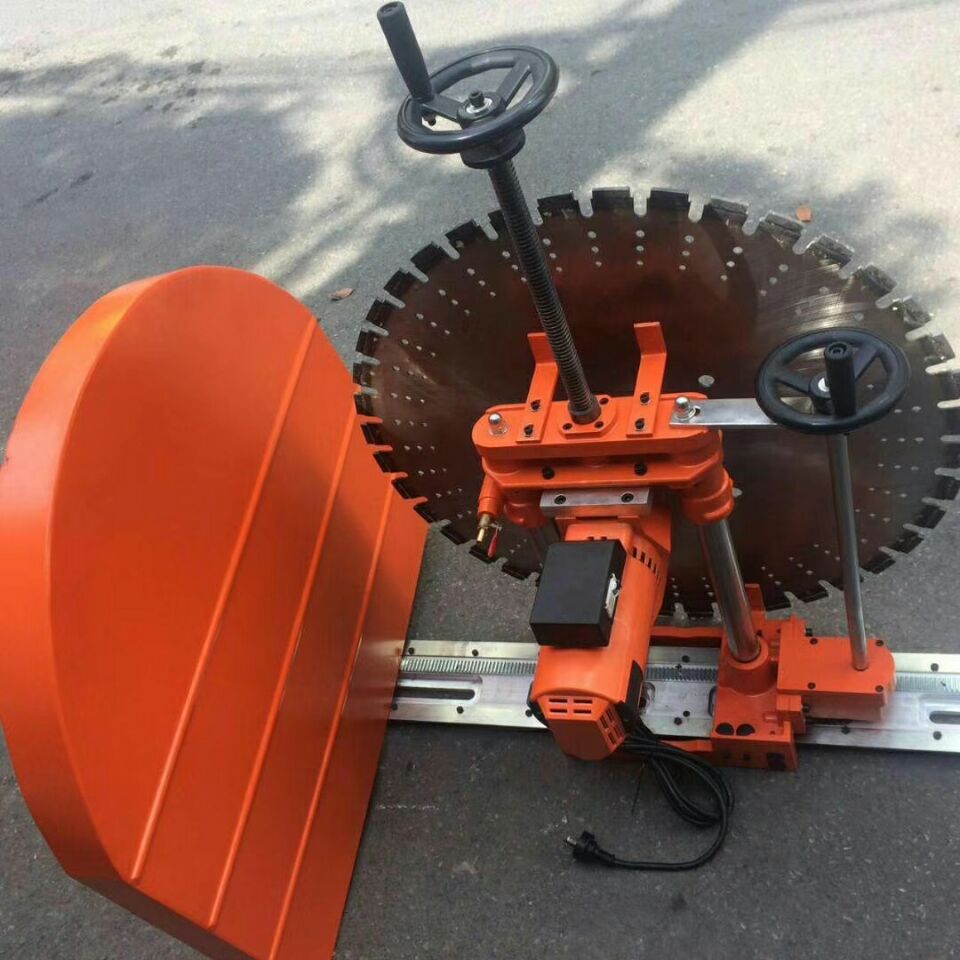

Wall Cutting Machine, Large Wall Slicer, Concrete Wall Cutting Machine

Wall cutting machine/Wall cutting machines are primarily used for building or old building renovations, reinforcement, design changes, etc., capable of cutting through large areas of walls for door openings, windows, elevator shafts, and other extensive wall cuts. Manual feed and cutting. The structure remains intact, forming in one go, which not only avoids the damage to building structures caused by traditional hammering work but also saves time, materials, and labor in drilling circular排孔 methods, as well as substantial time and cost for adjustments.The concrete reinforcing bar cutting machine is suitable for cutting or creating grooves in reinforced concrete walls, brick walls, or stone materials.

Concrete Reinforcement Cutting Wall Machine Repair and Inspection

Urgent: Do not plug in the power before inspecting the machine.

Please provide the Chinese content to be translated.MachineCumulative working time exceeds24HourClean and maintain the machinery. Ensure the lubrication and mobility of the lifting screw shaft of the main lifting rod on the hoist. (There should be no mud or debris; this is beneficial for operation, while the opposite will damage the machine.)

1Inspect saw blades

Utilize worn-out saw blades to reduce cutting efficiency and avoid motor overload; replace the saw blade arrow in a timely manner.

2Inspect the wheel

Inspect the base below16Wheel only, does not bind or jam or break.,The gap between the wheel and track must not exceed0.2mmOtherwise, you can loosen the pulley fixing nut and adjust the corresponding internal hex set screws on both sides of the machine base.

Voltage: 220V, Frequency: 50-60Hz
PowerModel 8006680W (equipped with 800 saw blades, cutting up to 320mm)
Model 10007500W (contains 1000 saw blades, cuts up to 420mm)
1200 Model7680W(1200 blades, cutting 520mm)
