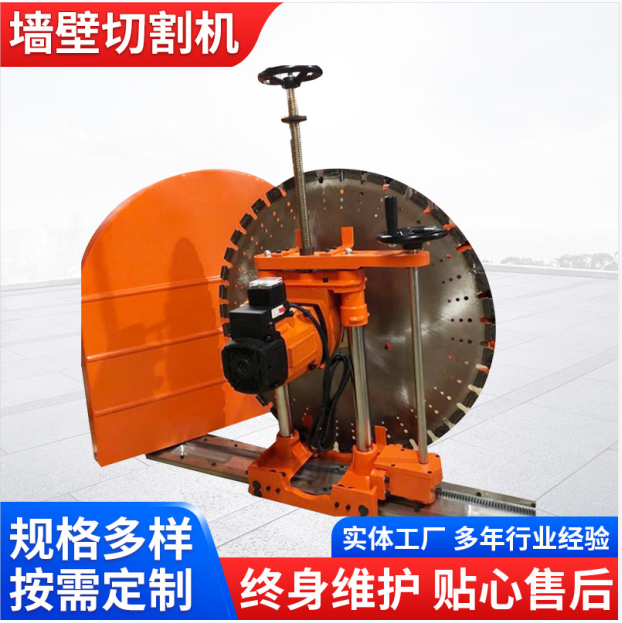

Concrete Wall Cutting Machine, Cement Masonry Saw, Wall Saw
Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door openings, windows, and elevator shafts. Manual feed and cutting. The structure remains intact, forming in one go, which not only avoids the damage to the building's structure caused by traditional hammering work but also saves time and resources on drilling circular holes, as well as reduces the amount of time and costs for adjustments.
Key Technical Parameters:
Saw Blade:800mm Cutting Depth: 32cm
Power Voltage:220V, Power: 6200W
Dimensions:100*100*80cm
Wall saws are primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas of walls such as door openings, windows, and elevator shafts. They are structurally non-destructive, forming in one go, which not only avoids the damage to building structures caused by traditional hammering methods but also saves time, materials, and labor in drilling circular exhaust holes, as well as reduces the time and cost for repairs.

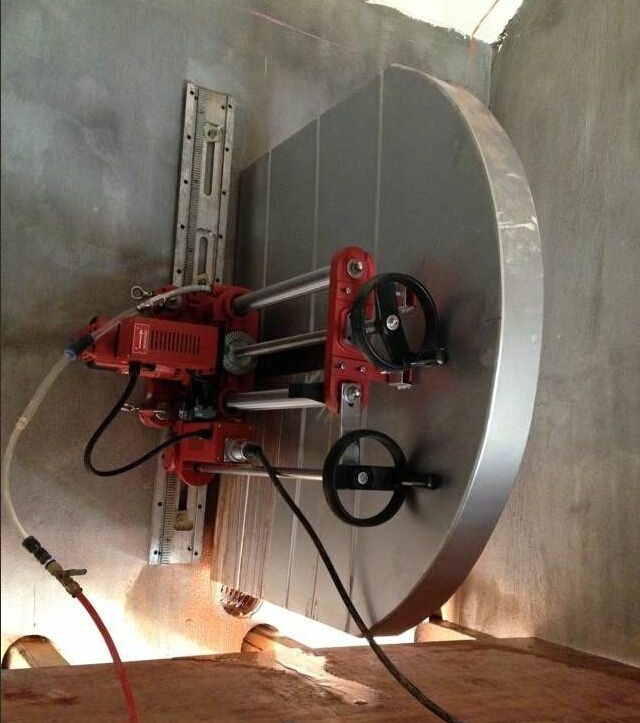

This machine is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, and the machine has gears that won't slip off; it can only be moved by handwheels), install the blade, the guard, and then operate with both handwheels. The middle handwheel controls the up and down movement of the blade, and the right-hand handwheel controls the machine's movement along the track. Efficiency varies by individual, generally we24" wall in 10 minutes per meter Single cut (cut once, lift the knife, move to the next cutting spot, then cut again).
Utilizing heavy-duty dual-insulated high-power motors and gearboxes, featuring low failure rates and long service life, thereby saving maintenance costs. A mechanical clutch protector device effectively prevents damage to the machine and personnel due to improper operation. In addition to enhancing construction quality, it also accelerates construction speed, while also significantly reducing...Reduce the labor intensity for the operator.
