Coal silo鄂式gate, Discharge port control gate, DEZ-600 electro-hydraulic discharge valve
Brand:Anyuan Model:DSZ Material: Carbon Steel Connection Type: Flanged Applicable Medium: Crystalline solids, granular materials, powdered materials Pressure Environment: Atmospheric Pressure Standard: National Standard Drive Type: Electro-hydraulic push rod Working Temperature: Ambient Specification: See table below Type (Channel Position): Straight-through Outlook: Medium-sized

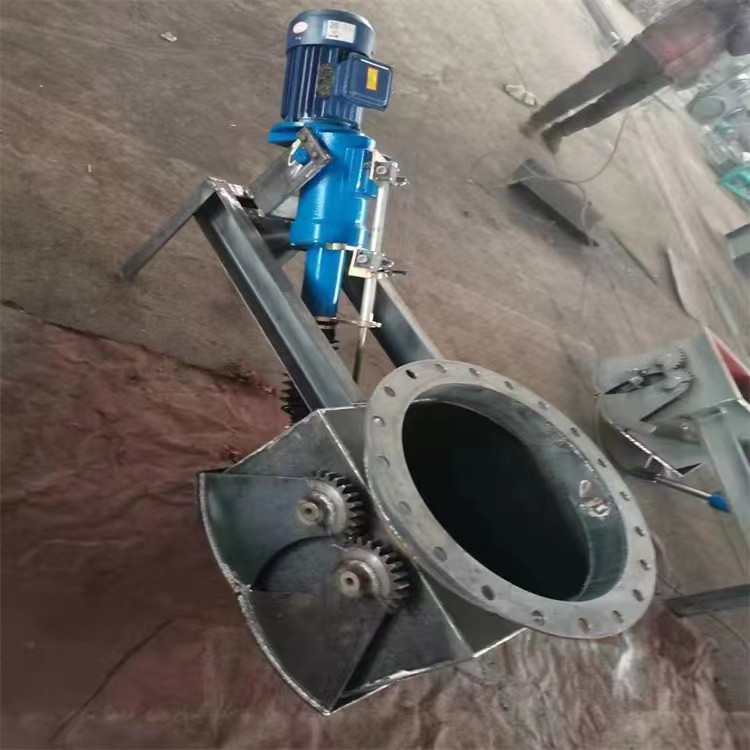

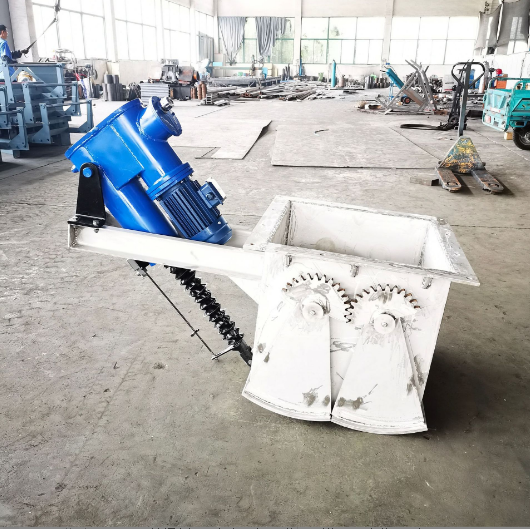

Working PrincipleElectro-hydraulic sector gates are composed of the main body, sector gate plate, shaft, seals, and electro-hydraulic push rods, among other components. The electro-hydraulic push rod drives the gears, which in turn rotate the sector gate plate around the shaft axis, enabling the sector The gate opens to one side, allowing the material to fall. Once the receiving device is fully loaded, the electric-hydraulic actuator drives the sector gate back to its original position, closing off the falling material.
Standard models and hydraulic/electric push rods accessories
1. DEZ-A Type Electro-Hydraulic Actuated Butterfly Valve
Model | Electro-hydraulic Push Rod Model |
DSZ-20A | DYT700-200 |
DSZ-30A | DYT700-260 |
DSZ-40A | DYT700-280 |
DSZ-50A | DYT1000-210 |
DSZ-60A | DYT1000-230 |
DSZ-70A | DYT1000-350 |
2. Parameter of DEZ-B Type Electro-hydraulic Butterfly Gate
Model | Electro-hydraulic Push Rod Model |
DSZ-20B45° | DYTZ700-130 |
DSZ-20B60° | DYTZ700-150 |
DSZ-30B45° | DYTZ700-150 |
DSZ-30B60° | DYTZ700-180 |
DSZ-40B45° | DYTZ700-180 |
DSZ-40B60° | DYTZ700-240 |
DSZ-50B45° | DYTZ1000-230 |
DSZ-50B60° | DYTZ1000-270 |
DSZ-60B45° | DYTZ1000-260 |
DSZ-60B60° | DYTZ1000-360 |
Structural Features
1. Simple structure
2. Smooth operation;
3. Low failure rate
4. Quick disconnection available.
The DSZ type electro-hydraulic sector gate is more convenient than the manual sector gate and more durable than the electric sector gate.
