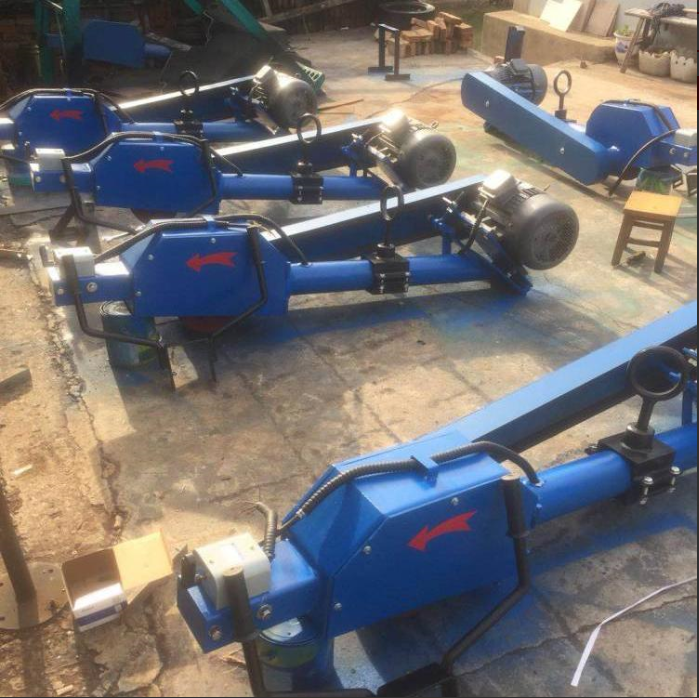

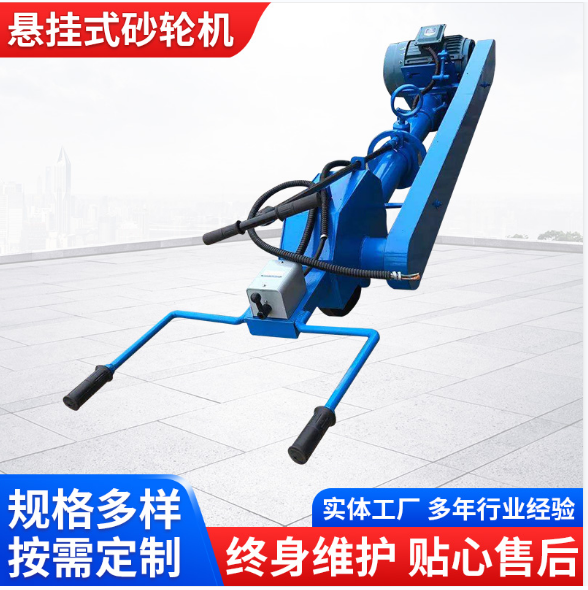

M3140 suspended grinding wheel machine for ingot casting parts, electric grinding wheel machine

The product is a specialized grinding equipment for steel mills and forging and casting industries. It is used for grinding cracks, carbide inclusions, burrs, and risers in stainless steel, titanium ingots, alloy steel, special steel, ingots, and various metals. This product features advanced domestic technology, with waterproof, dustproof, easy operation, and low failure rate. Particularly, its grinding capabilities for materials like titanium and stainless steel highlight the advantages of low maintenance rates and high production efficiency.

1. Check the stability of the suspended items before use.

  2、 First, observe if the motor is reversing. Normally, the grinding sparks should be ejected towards the motor. If not, shut down the machine immediately to check if the circuit is functioning properly.

3. After the grinding wheel machine is started, grinding should only be performed once the machine has reached a stable rotation. If the machine exhibits significant vibration, it should be immediately shut down for adjustment.

Do not apply excessive force during grinding.

5. Select a grinding wheel that matches the spindle speed of the grinding machine, as per the manufacturer's instructions.

6. New grinding wheels must have a factory-certified quality certificate or a test mark. Do not use the wheel if defects such as quality issues, hardness, grain size, or cracks are found before installation.

7. When installing the grinding wheel, the clearance between the inner hole of the grinding wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally between 0.05 and 0.10 millimeters.
