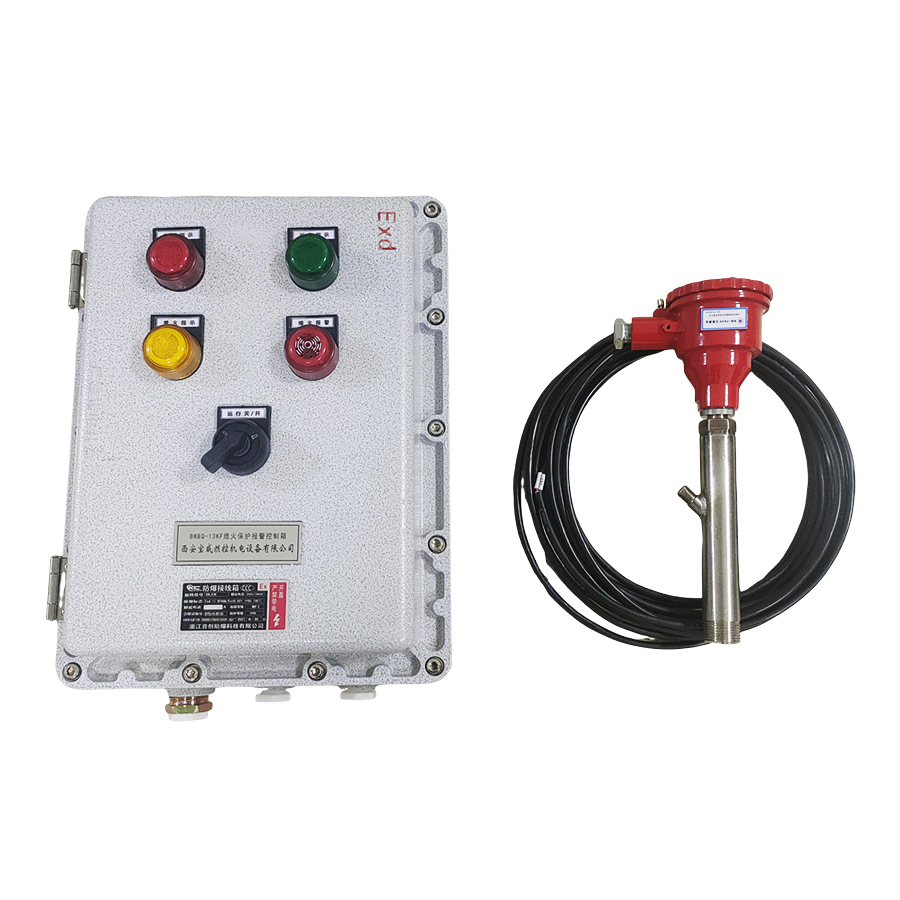

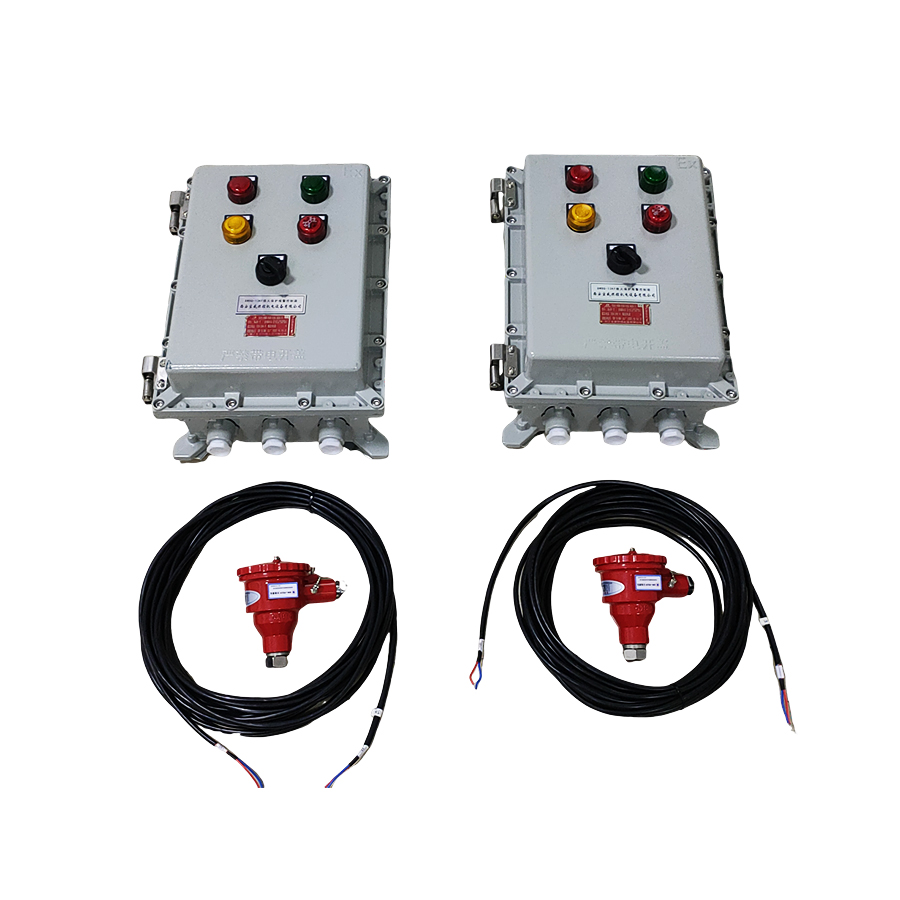

The BWBQ-13KF Flameout Protection Alarm Control Box is a specially designed and developed flame monitoring alarm system for industries such as petrochemical, metallurgy, coal chemical, and ceramics. Equipped with a flame monitor, it features simplicity, reliability, and ease of use and maintenance, making it suitable for flame monitoring and flameout alarms in various gas and oil burners, as well as oven loaders.

Key Technical Parameters:

■ Power Supply: 220VAC/50Hz

■ Power Consumption: 100W

Flame Response Time: See Fire Response ≤1s

Shut-off response within 1~3 seconds

The power indicator light (red) illuminates when the control cabinet is powered on.

Turn the operating knob. The operating indicator light (green) illuminates.

The fire indicator light (yellow) extinguishes and the sound-and-light alarm light (red) sounds during the engine shutdown response.

The fire indicator light (yellow) illuminates upon seeing fire.

Output:

Fuel Solenoid Valve Power Supply AC220V ( Normally Closed )

2. A set of fuel valve interlock signals (relay passive normally open contacts, capacity 220VAC·5A)

3. A set of normally closed and normally open passive contacts for flame real-time signal relays, rated for 220VAC·5A

The normally closed contact closes and the normally open contact opens during engine shutdown response.

The normally closed contact opens upon seeing fire, and the normally open contact closes.

■ Operating Environment Temperature: Monitor and UV Probe: -20℃ to 80℃

■ Dimensions: 400×300×200mm

Mounting Hole Size: Probe Mounting Thread M20*1.5

Fire Detection Probe: Imported Photoelectric Tube BW-FKUV

■ Monitoring Distance: Up to 8 meters, optimal distance ≤ 4 meters

■ Explosion-proof grade of control box: Ex db eb IIB T4
