One, PanelHeat Exchanger SetIntroduction
BJ High-Efficiency IntelligentPlate Heat Exchanger PackageThis is an all-in-one, fully automated, high-efficiency, energy-saving product that integrates heat exchange systems with thermal control, temperature regulation, and heat measurement. It adapts to operational requirements and weather conditions, utilizing a central controller for intelligent control of the primary and secondary heating networks, achieving a balance between the heat supply and actual heat load. It is an ideal heat exchange equipment for urban centralized heating (heating, air conditioning, domestic hot water). The unit consists of plate heat exchangers, circulating pumps, make-up pumps, filter separators, pipes, valves, instruments, and variable frequency control systems. Optional accessories include electronic descaling instruments and fully automatic programming systems, as per user needs. This unit boasts high heat transfer efficiency, low resistance, compact structure, reliable operation, and simple, intuitive operation, making it an efficient and energy-saving product.

Section 2: Plate Heat Exchanger Unit Features

Water supply temperature is intelligently controlled using industrial control computing or an intelligent temperature regulator. The water supply temperature can change according to the programmed settings in response to the outdoor environment temperature, standard room temperature, and time. This results in high heating quality and energy-saving.

Industrial control computers display, store, and print various operating parameters, including: heat medium flow, heat medium temperature, heat medium pressure, heat supply, outdoor temperature, standard room temperature, water supply temperature, condensate temperature, water supply pressure, etc.

During gas exchange, incorporate a condensate heat exchanger section and condensate temperature control to maximize the use of condensate heat.

The system employs variable frequency control for water replenishment, featuring automatic water addition and pressure stabilization.

Utilizing high-performance stainless steel plate heat exchangers, the unit has a compact size and minimal footprint.

The circulating pump can operate with variable frequency and variable flow.

Standard modular design, allowing flexible selection of control content based on user needs, reducing investment.

The operating parameters are displayed numerically in a centralized manner, offering convenience and reliability.

Compact structure of BJ plate heat exchanger unitChoose our company's designed and manufactured models with high energy efficiency and compact size.Plate Heat ExchangerPumps are used, either imported or domestic vertical pumps, resulting in a compact structure, requiring minimal installation and operating space, simple operation, and easy installation and maintenance. The control and regulation of the heat exchanger units utilize imported or domestically produced high-quality brand control components and systems, ensuring reliable operation and excellent performance with a high degree of automation. With only basic training, one can master the operation of the heat exchanger units.

The BJ Plate Heat Exchanger Units are a series of products, offering a variety of types and models for selection based on user needs. Our company also produces units with composite functions (heating + domestic hot water, heating + air conditioning, cooling + domestic hot water, heating + domestic hot water + air conditioning), utilizing the same heat source. In a single unit, multiple plate heat exchangers are used to produce hot water of different temperatures and purposes. Therefore, the BJ Plate Heat Exchanger Units are versatile and flexible, capable of meeting users' heat exchange requirements.

Section 3:Principle of Operation for Plate Heat Exchanger Unit

1. Unit Operation Process (Illustrated by Heating System)

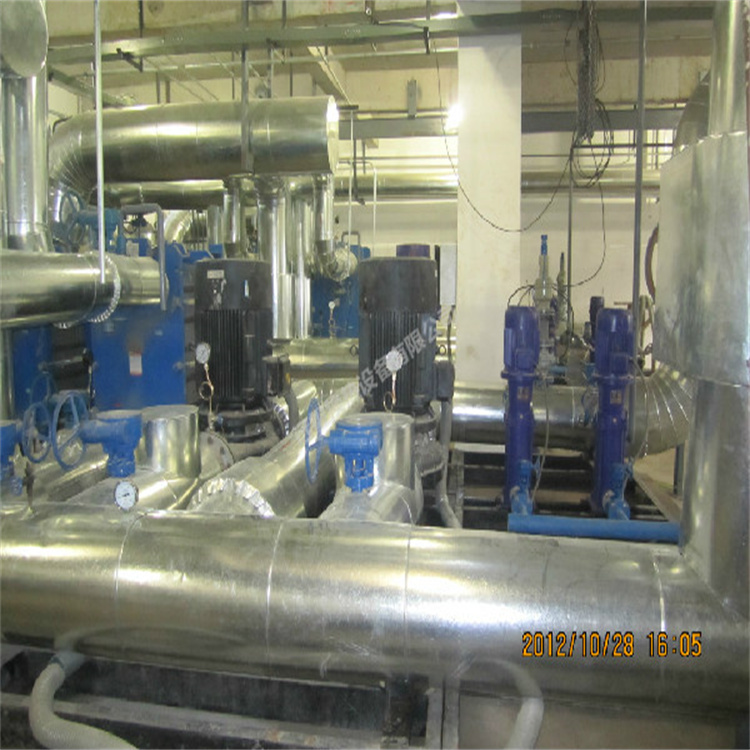

The heat exchanger unit consists of three parts: primary side, secondary side, and makeup water system. The primary side serves as the heat source, while the secondary side is for heat application. The heat source on the primary side transfers heat to the secondary side through a plate-type heat exchanger. The secondary side is equipped with a circulating pump, which continuously supplies heat to the users. The makeup water system is connected to the returned water of the secondary side, used for: replenishing the water lost in the secondary side circulation and maintaining the stability of the system pressure.

2. Water Supply Temperature Control Principle
The unit is equipped with an independent control system, capable of fulfilling functions from flow regulation to data collection and analysis, catering to users' specific requirements. This allows for adjusting the supply water temperature to meet the needs of heating and comfort.

Four. Application of Plate Heat Exchanger Unit

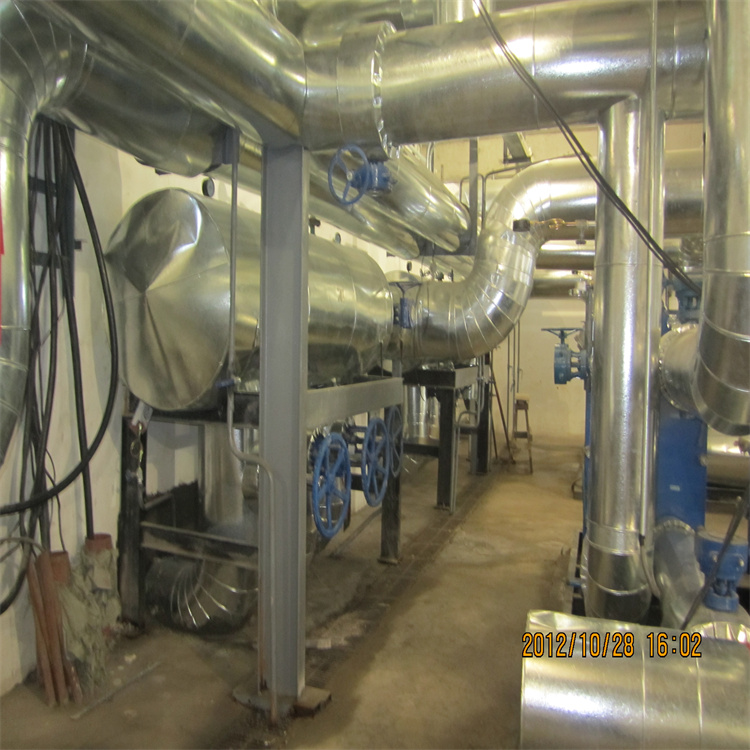

Ideal for heat exchange in situations such as car-to-water and water-to-water heat exchange. It is an ideal heat exchange equipment for centralized heating in thermal power plants and boiler areas, utilizing industrial waste heat for heating systems. Widely applicable for heating and air conditioning systems in hotels, restaurants, shopping malls, office buildings, residential communities, enterprises, and institutions, etc. It provides heating for heating systems, air conditioning systems, and hot water supply, ensuring a comfortable and warm working and living environment that meets production requirements.

Five, Plate-type Heat Exchanger Manufacturer
冷却器厂家: Yuanwang Heat Exchange Equipment Co., Ltd., a professional manufacturer of plate heat exchangers. Located in Jiangyan City, central Jiangsu province. The company produces "Lengwei" brand plate heat exchangers and coolers. Main products:Plate Heat Exchanger，Cooler，Condenser，Diverting valve，Heat Exchanger Unit，Evaporative Condenser，Shell and tube heat exchanger，Bell and tube heat exchanger，Volumetric heat exchanger"The 'Lengwei' brand is a well-known trademark in Jiangsu. The 'Lengwei' brand coolers have passed the ISO9001 international quality system certification and strictly adhere to the JB/T7356-94 'Tubular Oil Coolers' and GB16409-96 'Plate Heat Exchangers' standards. Yuanwang coolers are reliable in quality and widely applicable. Yuanwang Heat Exchanger Equipment Co., Ltd. is a professional manufacturer and supplier of plate heat exchangers and coolers!"
