One, High-Efficiency and IntelligentPlate-type Heat Exchanger SetIntroduction

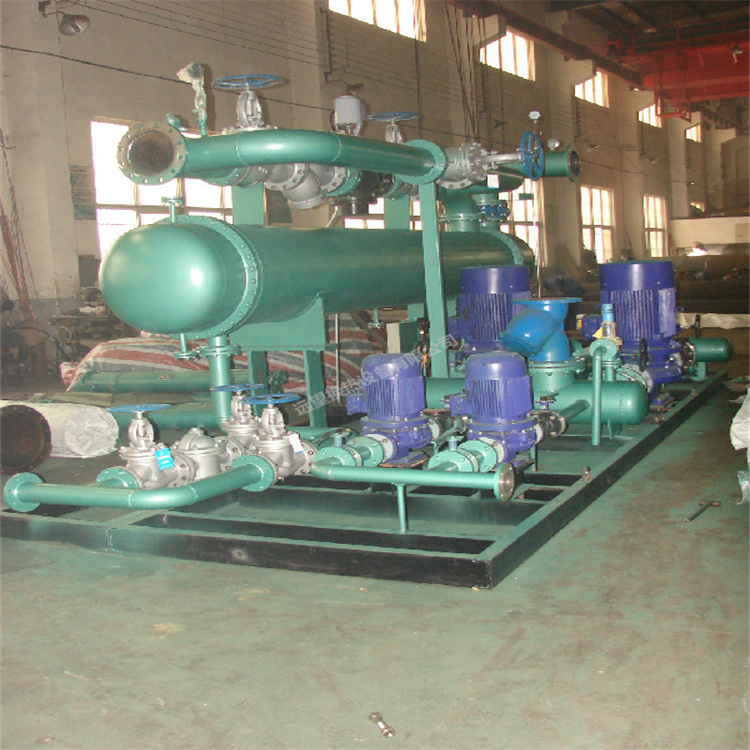

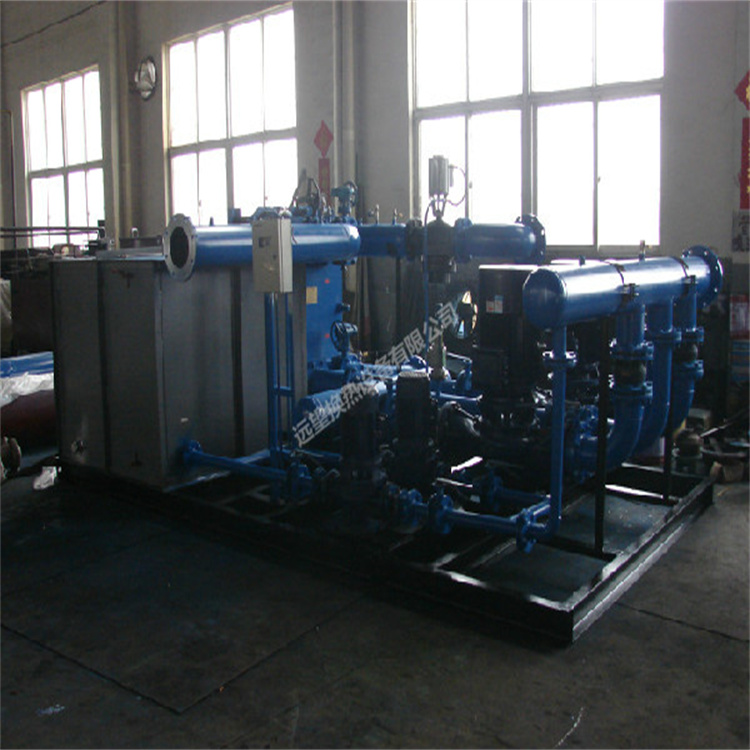

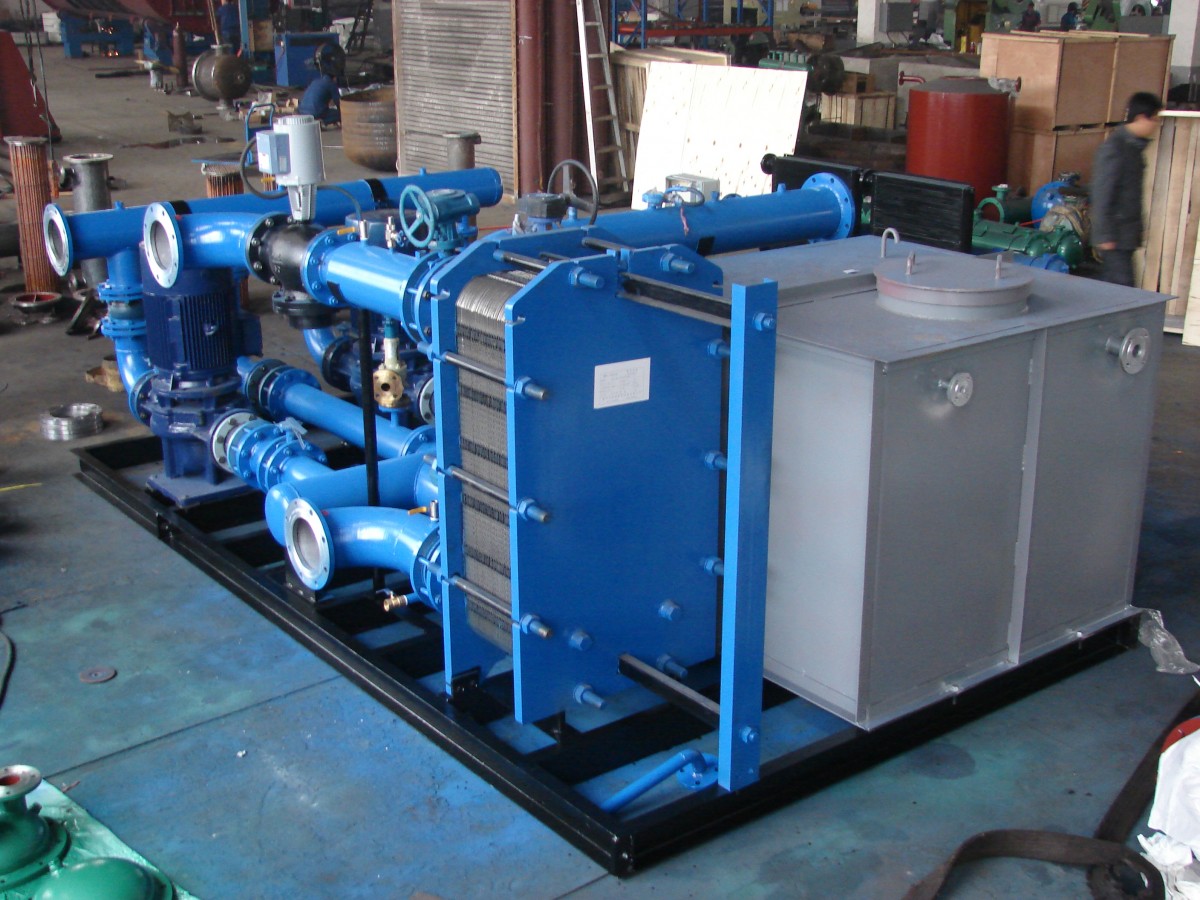

The BJ High-Efficiency Intelligent Plate Heat Exchanger Unit is an all-in-one, fully automated, energy-saving product integrating heat exchange systems, thermal control, secondary regulation, and thermal measurement. It adjusts to operational requirements and weather conditions, utilizing a central controller for intelligent control of the primary and secondary heat networks, achieving a balance between supply heat and actual thermal load. It is an ideal heat exchange equipment for urban centralized heating, air conditioning, and domestic hot water. The unit consists of plate heat exchangers, circulating pumps, make-up pumps, filter separators, pipes, valves, instruments, variable frequency control systems, and more. Optional extras include an electronic descaling instrument and an automatic programming system, as per customer needs. The unit boasts high heat transfer efficiency, low resistance, compact structure, reliable operation, and straightforward operation, making it an efficient and energy-saving product.
Section 2: Key Features of High-Efficiency Intelligent Plate Heat Exchanger Units
Water supply temperature is intelligently controlled using industrial control computing or intelligent temperature regulators. The water supply temperature can change according to the programmed settings, outdoor environmental temperature, standard room temperature, and time. It ensures high heating quality and energy-saving.
Industrial control computers display, store, and print various operating parameters, including: heat medium flow rate, heat medium temperature, heat medium pressure, heat supply, outdoor temperature, standard room temperature, supply water temperature, condensate water temperature, and supply water pressure.
During the carbonated beverage heat exchange process, install condensate heat exchanger sections and condensate temperature control to fully utilize the heat from condensate.
The system employs variable frequency control for water replenishment, featuring automatic refilling and pressure stabilization.
Utilizing high-performance stainless steel plate heat exchangers, the unit is compact in size and occupies minimal floor space.
The circulating pump can operate with variable frequency and variable speed.
Standard modular design, allowing flexible selection of control content based on user needs, reducing investment.
The operating parameters are displayed numerically in a centralized manner, offering convenience and reliability.
The BJ plate heat exchanger unit features a compact structure, utilizing high-efficiency and small-sized plate heat exchangers designed and manufactured by our company. The pumps are of imported or domestically produced vertical types. As a result, the unit is compact, requiring minimal installation space, and is easy to operate and maintain. The control and regulation of the heat exchanger unit are handled by imported or domestically produced top-brand control components and systems, ensuring reliable operation and excellent performance with high automation. With only basic training, users can master the operation of the heat exchanger unit.
The BJ plate heat exchanger series offers a variety of models to choose from, catering to diverse needs. Our company also produces units with combined functions (heating + domestic hot water, heating + air conditioning, cooling + domestic hot water, heating + domestic hot water + air conditioning), utilizing a single heat source. Within a single unit, multiple plate heat exchangers are used to produce hot water of different temperatures and purposes. Therefore, the SBJ plate heat exchanger series boasts versatility and flexibility, fully meeting the thermal exchange requirements of users.
III. Working Principle of High-Efficiency Intelligent Plate Heat Exchanger Assembly
1. Unit Operation Process (Illustrated by Heating System)
Heat exchanger units include primary side, secondary side, and make-up water system.Three sections. The primary side is the heat source, while the secondary side is for heat usage. The heat source on the primary side transfers heat to the secondary side through a plate-type heat exchanger. The secondary side is equipped with a circulating pump, which continuously supplies heat to the users. The water supply system is connected to the return water of the secondary side's factory, used to replenish the water lost in the secondary side circulation and maintain the stability of the system pressure.
2. Water Supply Temperature Control Principle
The unit is equipped with an independent control system, which can fulfill functions ranging from flow regulation to data collection and analysis, according to the user's specific requirements. This enables the adjustment of the water supply temperature to meet the needs of internal heating and comfort.
4. High-Efficiency Intelligent Plate Heat Exchanger Unit Applications
Ideal heat exchanger for car-to-water heat exchange, water-to-water heat exchange, and other conditions. Perfect for centralized heating and boiler district heating, utilizing industrial waste heat. Widely applicable for heating and air conditioning systems in hotels, restaurants, shopping malls, office buildings, residential communities, enterprises, and institutions. Offers heating, warm and comfortable working and living environments, and meets production process requirements.
V. Description of High-Efficiency Intelligent Plate Heat Exchanger Models
Description: B J stands forPlate Heat ExchangerWith the crew
Two sides indicate the application scope of the secondary side: domestic hot water system - "S"; air conditioning system - "K"; heating and cooling system - "C".
Floor heating system type "F"; when there are two or more scope options on the secondary side, the letters are separated by a period ". ".
Three indicates heat load.
Four digits represent the medium of the side heat medium: Hot water - "R"; Steam - "Q"; Cold water - "L".
Five denotes the design pressure of both primary and secondary sides.
Six digits represent the control level, divided into two levels as per the table.
Section 6: Ordering Instructions for High-Efficiency Intelligent Plate Heat Exchanger Units
The allowable high temperature for the unit is ≤300°C, and the working pressure is ≤2.0 MPa.
Users can select the unit model based on heating source, heat supply (or heating area), flow rate, and other operating conditions according to performance parameters, or entrust our company with the selection. We can also provide customized design and manufacturing based on your specific operating conditions and requirements.
Please provide the full model number of the complete unit during ordering, and specify the heat exchange capacity, flow rate, head, and pump start-up method to ensure the optimal performance of the unit.
If the user has specific requirements for the technical performance, configuration,外形尺寸, and direction of the connections of the unit, please indicate them in the contract.
All units undergo hydrostatic testing before shipment, with test pressure customizable according to design and customer requirements.
Our company offers free consultation and selection solutions to users and design units.
Section 7:High-Efficiency Intelligent Plate Heat Exchanger Manufacturer
Cooler ManufacturerYuanwang Heat Exchange Equipment Co., Ltd., a professional manufacturer of plate heat exchangers. Located in Jiangyan City, central Jiangsu Province. The company produces "Lengwei" brand plate heat exchangers and coolers. Main products:Plate Heat Exchanger，Cooler，Condenser，Diverting manifold，Heat Exchanger Unit，Evaporative Condenser，Shell and Tube Heat Exchanger，Baffled heat exchanger，Volumetric heat exchangers"The 'Lengwei' brand is a well-known trademark in Jiangsu. The 'Lengwei' brand coolers have passed the ISO9001 international quality system certification and strictly adhere to the standards of JB/T7356-94 'Tubular Oil Coolers' and GB16409-96 'Plate Heat Exchangers'. Yuanwang coolers are of reliable quality and widely used. Yuanwang Heat Exchanger Equipment Co., Ltd. is a professional manufacturer and supplier of plate heat exchangers and coolers!"
Address: Advanced Industrial Zone, Louzhuang Town, Jiangyan City, Jiangsu Province
Phone: 0523-88691628, 88699968
Fax: 0523-88696288
