Key Features:

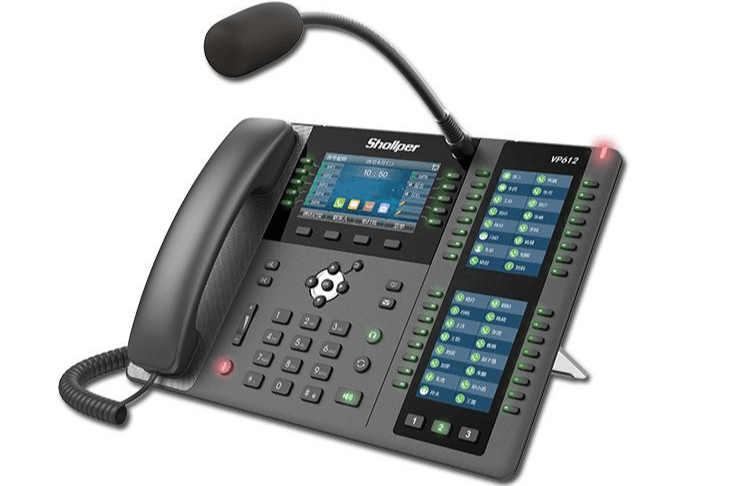

3 high-resolution TFT color displays: main screen (4.3-inch color screen) + 2 DSS screens (3.5-inch color screens), offering a rich visual experience.
Smart DSS button corresponds to display screen — capable of dynamically displaying 3 pages, each page can be set to show the status of 32 DSS buttons, plus the 10 DSS buttons on the main screen, totaling support for custom configuration of 106 DSS buttons. Each DSS button can be set to Line/BLF/Speed Dial Extension, etc.
20 SIP Lines.
Support video calls.
Gooseneck microphone — A movable directional external microphone.
Gigabit Ethernet — Adaptive 10/100/1000Mbps network port, offering high-speed network transmission, and supporting PoE power supply.
Built-in Bluetooth 2.1 module: Connects with Bluetooth headphones.
Supports external Wi-Fi connectionngle 。
Handle / Hands-free / Headphone mode.
Supports H.264 video decoding, camera binding, video access control, accepts video calls, view access control footage on the paging console's main screen, and enables remote unlocking and interconnectivity.
High compatibility — compatible with mainstream SIP-based IPPBX/softswitch/IMS platforms, etc.
Local phone directory (2000 entries), network phone directory (supports XML/LDAP, 2000 entries).
Call Records (Unanswered Calls/Incoming Calls/Outgoing Calls, 1000 Entries).
Blacklist / Whitelist.
Screen Saver on Standby.
Automated deployment and configuration (Auto-Provisioning) via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069.
Voice Mail Waiting Indicator (VMWI).
User-defined DSS key/soft button.
Network Time Synchronization.
Supports recording (local recording via sound card, server, or USB flash drive).
Action URL / Active URI。
uaCSTA。
Supports EHS headphones, compatible with Plantronics and Jabra wireless headsets.
Web Management Interface.
Calling Function
Dialing/Answering/Rejecting Calls, Mute/Unmute (Microphone), Call Hold/Resume, Call Waiting, Intercom Function, Caller ID, Speed Dial, Anonymous Call, Call Forwarding (Unconditional/Busy/No Answer), Call Transfer (In/Out of Office), Call Park/Grab (Server Coordination), Redial, Do Not Disturb, Auto-Answer, Voice Mail (Server Coordination), Conference Call, Hotline, Shared Phone (Hot Desking).
Video Features
Video Decoding: H.264
Video Call Resolution: QCIF / CIF / VGA.
Audio Features
High-Definition Handle/Hold (Handle/Hold, 0 ~ 7KHz Frequency Response).
HAC Handle.
16KHz sampling for Broadband ADC/DAC.
Narrowband Encoding: G.711a/u, G.723.1, G.726-32K, G.729A/B, AMR, iLBC.
Broadband Coding: G.722, AMR-WB, Opus; Full-duplex hands-free calling; Supports Acoustic Echo Cancellation (AEC).
Voice Activity Detection (VAD) / Comfortable Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC).
Packet Loss Compensationncealment )。
Dynamic adaptive jitter buffer up to 300ms.
DTMF: In-band audio, out-of-band - DTMF relay (RFC2833)/SIP INFO.
Network Features
10/100/1000Mbps Ethernet (bridging mode).
IP Mode: IPv4/IPv6/IPv4 & IPv6.
IP Acquisition Methods: Static IP Configuration / DHCP / PPPoE.
Supports 802.1x network access authentication.
Virtual Private Network (VPN): L2TP / OpenVPN.
Virtual Local Area Network (VLAN)
Link Layer Discovery Protocol (LLDP)
Quality of Service Assurance (QoS)
RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)。
Relevant agreements
SIP2.0 over UDP/TCP/TLS、RTP/RTCP/SRTP、STUN、DHCP、IPv6、 PPPoE、LLDP、802.1x L2TP、OpenVPN、SNTP、FTP/TFTP、HTTP/HTTPS、TR-069、AES128 & AES256。
Physical Specifications:
Screen:
Main Screen: 1 x 4.3 inches (480)272) Color screen.
DSS Display: 2 x 3.5 inches (320)480) Color Screen.
Keyboard:77 keys, including:
4 Dynamic Soft-Keys
6 function keys (hold/transfer/phonebook/voice message/earphone/redial)
4 directional keys
1 OK Button
1 Return Key
12 Standard Telephone Numeric Keys
3 voice control keys: increase/decrease/mute (microphone)
1 hands-free key
42 DSS Keys (with tri-color LED indicator lights)
3 page buttons
RJ9 Connector: 2 pieces.
RJ45 connector2 pieces.
Gooseneck microphone connector:1 piece.
Gooseneck microphone1. Single directional microphone, frequency response: 20Hz~20KHz, signal-to-noise ratio: ≥60 dB at 1 kHz, 1 Pa.
USB 2.0 Interface:1, USB Wi-Fi adapter or a USB flash drive.
Technical Specifications:
Power Supply: PoE
Power Consumption (PoE)2.6~9W
DC Input:5V/2A (Power adapter required, sold separately)
Power Consumption (Power Adapter): 2.4~8W
Operating Temperature: 0~45℃
Relative Humidity:10~95%
Installation Method:Desktop
Color:Dark gray
Product Dimensions
Desk-top model (Angle 1): 309 x 214 x 187mm
Desk-top Model (Angle 2): 309 x 226 x 167mm
Packaging Dimensions:323 x 301 x 71mm
