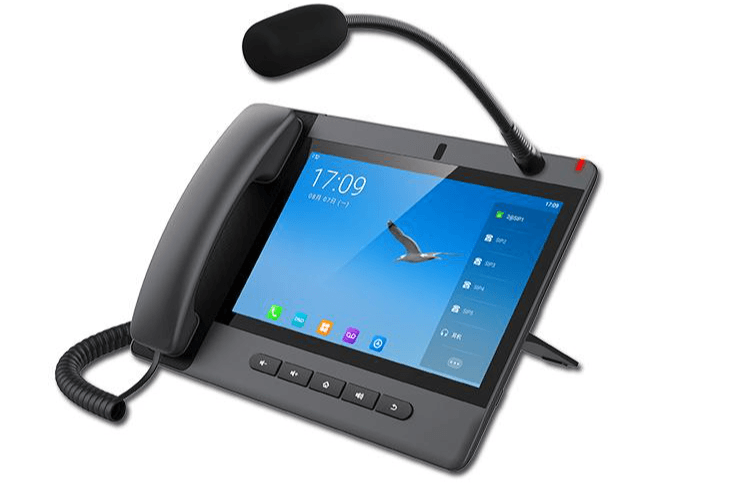

Key Features:
10.1-inch 1280800-color touch screen, offering an enhanced experience.
20 SIP lines, supporting ten-party voice conferences and three-party video conferences.
User-defined DSS keys, supporting 112 programmable buttons.
Equipped with PTM mute button handle, optional standard/PTT button talk handle.
Built-in 8 million pixel camera (with privacy cover), adjustable angle.
Supports wideband audio decoding: G.722, Opus.
Built-in 2.4G/5G Wi-Fi and Bluetooth 5.0 (connects to Bluetooth earphones/phone's Bluetooth).
Supports H.264 video encoding and decoding, compatible with video calls. Capable of binding cameras and video intercoms, allowing real-time monitoring of access control scenes and remote unlocking.
Gigabit dual network ports—adaptive 10/100/1000Mbps network ports, offering high-speed network transmission, and supporting PoE power supply.
Supports video calls.
Handle / Hands-free / Headphone mode.
Local phone directory (2000 entries), network phone directory (supports XML/LDAP, 2000 entries).
Contact/Call Smart Search.
Call Records (Unanswered Calls/Incoming Calls/Outgoing Calls, 1000 Entries).
Blacklist / Whitelist.
Screen Saver on Standby.
Voice Message (VM)
Automated deployment and configuration (Auto-Provisioning) via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069.
Network Time Synchronization.
Audio/Video Recording Feature
Action URL / Active URI。
uaCSTA。
Dialing rules.
SIP Hotspot.
Distinguish between ringtones and custom alerts.
Multicast.
Web Management Interface, supports web page upgrades
Supports encrypted download of configuration files (AES).
Supports third-party apps.
Android System Features
Android OS 9.0, Enhanced Security and Compatibility
Built-in Apps: File Explorer, Calendar, Camera, Gallery, Web Browser, Email, Calculator, Notebook, Recorder, Clock, Video Player, Music.
Supports third-party applications.
二次开发 API:二次开发 Application Programming Interface
Call Function
Dial/Answer/Reject, Mute/Unmute (Microphone), Call Hold/Resume, Call Waiting, Intercom Function, Call Display, Speed Dial, Anonymous Call, Call Forwarding (Unconditional/Busy/No Answer), Call Transfer (In/Out of Office), BLF, Call Park/Grab (Server Required), Redial, Do Not Disturb, Auto-Answer, Call Back, Ten-Way Voice Conference, Three-Way Video Conference, Hotline/Warm Line, IP Direct Dial, Shared Phone (Hot Desking).
Video Features
Video Decoding: H.264 / H.265 (optional).
Video Call Resolution: CIF / VGA / 4CIF / 720P / 1080P.
Image Format: JPEG/PNG/BMP
Video Format: MP4
Broadband Range: 64kbps to 4Mbps
Video Frame Rate: 5~30 fps
Remote video full-screen display mode
Video Call
Video Preview
Camera: 8MP (adjustable angle), features privacy cover.
Audio Features
High-Definition Handle/Hold (Handle/Hold, 0 ~ 7kHz Frequency Response)
HAC Handle
Broadband ADC/DAC 16kHz Sampling
Narrowband Encoding: G.711a/u, G.729AB, iLBC
Broadband Coding: G.722, Opus
Full-duplex hands-free calling, with Acoustic Echo Cancellation (AEC) support
Noise Reduction (NR)
Packet Loss Compensationncealment )
Dynamic Adaptive Jitter Buffer
DTMF: In-band audio, Out-of-band – DTMF Forwarding (RFC2833)/SIP INFO
Network Features
10/100/1000Mbps Ethernet (Bridge Mode)
IP Mode: IPv4
IP Acquisition Method: Static IP Configuration / DHCP
Supports 802.1x network access permission authentication
Virtual Private Network (VPN): OpenVPN (requires third-party app support)
Virtual Local Area Network (VLAN)
Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Quality of Service Assurance (QoS)
Primary Backup SIP Server
Relevant agreements
SIP2.0 over UDP/TCP/TLS, DNS A/SRV/NAPTR, RTP/RTCP/SRTP, STUN, DHCP, LLDP, CDP, 802.1x, OpenVPN (requires third-party app support), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069.
Physical Specifications:
Screen:10.1 inches (1280)800) Color Touch Screen.
Keyboard:5 buttons: Volume-/Volume+/Home/Hands-free/Back.
High-definition Handle:1. Standard PTM mute handle with optional standard handle/PTT talk handle.
Standard Handle: No Button
PTT Handle: Press the button to speak
RJ9 Connector: 2 pieces.
RJ45 interface: 2 pieces.
Gooseneck microphone jack:1 piece.
Gooseneck MicrophoneSingle-directional microphone, frequency response: 20Hz~20KHz, signal-to-noise ratio: ≥60 dB at 1 kHz, 1 Pa.
USB 2.0 Interface:1 unit, USB drive connection.
Safety Lock Hole1 piece
Technical Specifications:
Power Supply: PoE
Power Consumption (PoE)2W ~ 9.77W
DC Input:5V/2A (Power adapter not included)
Power Consumption (Power Adapter): 1.2W ~ 7.75W
Operating Temperature: 0~45℃
Relative Humidity:10~95%
Installation Method:Desk-top
Color:Gunmetal gray, white
Product Dimensions
Desktop (Angle 1): 309 x 214 x 187mm
Desktop (Angle 2): 309 x 226 x 167mm
Packaging Size: 323 x 301 x 71mm
