The HATSP-A4 Amplified Communication Station is the latest generation industrial intercom developed by Xiaobeng Technology, tailored to meet the needs of industry users and compliant with the new era's industry engineering standards. From the outset of its design, the impact of the wireless coverage system on communication terminals was considered. Through full-circuit digital transformation and the addition of an automatic microphone muting feature, it boasts excellent anti-interference performance. Compared to the previous generation, it offers clearer sound quality, lower background noise, and noise-free amplification, providing an equivalent user experience to public broadcasting products.

Product Features:

● The phone case is made of high-strength reinforced ABS engineering plastic.

● Sealed structural design for dust, rain, moisture, and corrosion resistance.

● Protection rating up to IP66, suitable for harsher environments.

● This unit can be used in conjunction with systems such as programmable scheduling switches and voice gateways.

● Digital circuit design with strong anti-interference capability.

● The ringer signal is indicated by both sound and light.

● Equipped with automatic pick-up and hang-up control, capable of automatically switching into and out of loudspeaker call status.

● Digital Noise Reduction

● Features busy tone detection.

● zuiRedial function for the subsequent group of phone numbers.

● Numbered dial with luminescent indicators.

● The number of incoming ring tones is adjustable.

● Phone and housing integrated design for anti-theft function.

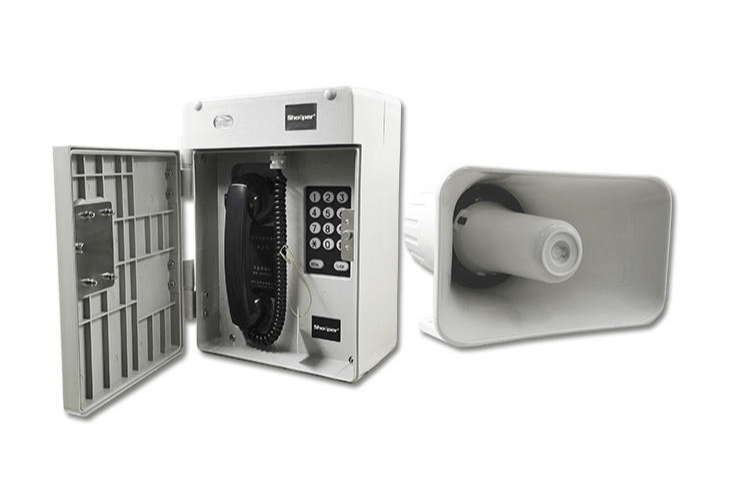

Function descriptions for all parts (see figure)

1. Door Cover 2. Handle 3. Ring Signal Indicator Light 4. Handle Hanger 5. Numeric Keypad 6. Redial Button 7. Quick Disconnect Key (Flash) 8. Door Lock 9. Front and Rear Cover Mounting Screws 10. Ringing Speaker 11. Wires, Speaker, Power Supply, Telephone Line 12. Installation Backplate 13. Door Knob

Product Specifications:

Transmission Cables:2-core telephone wire, 2-core audio cable

Communication Standards:Standard Simulation

Equipment Type:Outdoor Wall-Mounted

Protection Level:IP66

Body Material:ABS Glass Fiber Reinforced

Equipment dimensions:335*235*170mm

Equipment Weight:5kg

Power Input:220VAC 50Hz

Total Power Consumption:50W

Ambient Temperature:-30℃~+60℃

Ambient Humidity:0%~95%
