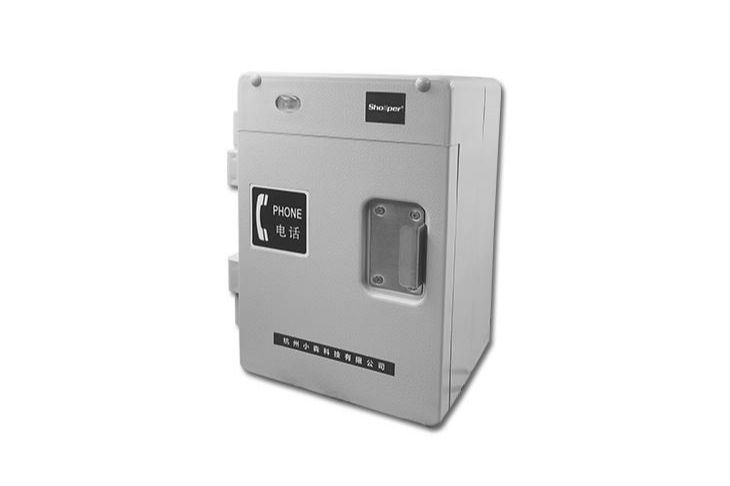

The HATSP-A5 model is a digital anti-noise industrial telephone developed by Xiaobeng Technology to meet the needs of industry users and adapt to the new era's industry engineering standards. It features advanced functions, reliable operation, excellent anti-noise performance, clear sound quality, and lower background noise. It is widely used in environments with high noise levels, such as tunnels, power plants, docks, factory production sites, and more.

Product Features:

● The phone case is made of high-strength reinforced ABS engineering plastic, featuring a sealed structure design for dust, water, and corrosion resistance. The protection level reaches IP66, suitable for harsh environments.

● This unit can be used with any 48V-60V switchmode power supply.

● zuiRedial function for the subsequent group of phone numbers.

● The electronic circuit employs a contactless structural design to prevent the formation of electric sparks, thereby serving as an explosion-proof measure.

● The ringer signal is indicated by both audio and visual means.

● Phone and shell integrated design.

● The cabinet door features a stainless steel pull handle and a novel, sturdy rare earth strong magnetic door seal.

● Utilizes advanced anti-noise technology, boasts strong anti-noise capabilities.

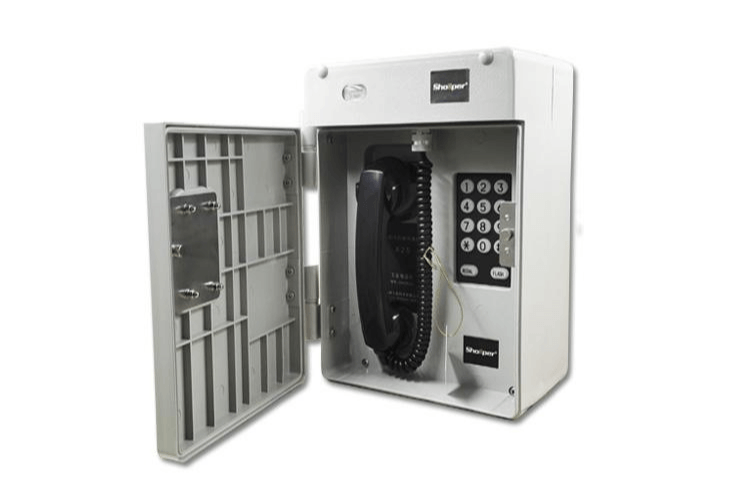

Description of each part (see illustration)

1. Door Cover 2. Handle 3. Ring Signal Indicator Light 4. Handle Hanger 5. Numeric Key 6. Redial Button 7. Quick Disconnect Button (Flash) 8. Door Lock 9. Front and Rear Cover Mounting Screws 10. Ringing Horn 11. Lead Wire, Phone Line In 12. Installation Backplate 13. Door Knob

Product Specifications:

Transmission Cables:2-core telephone wire

Communication Standard:Standard Simulation

Equipment Type:Outdoor wall-mounted

Ingress Protection Rating:IP66

Body Material:ABS Glass Fiber Reinforced

Equipment Dimensions:335*235*170mm

Equipment Weight:5kg

Total Power Consumption:0/10W

Ambient Temperature:-30℃~+60℃

Ambient Humidity:0%~95%
