The HATSP-B1 industrial telephone is the latest generation of industrial telephones launched by Xiaobeng Technology, tailored to meet the needs of industry users and compliant with the new era's industry engineering standards. It supports SIP 2.0 session protocol and can be matched with any SIP voice communication system. It features an ultra-wide voltage input range, offering both 12V DC and 220V AC power inputs. Designed specifically for special application scenarios such as industrial production sites, urban underground tunnels, and highway tunnels, it utilizes a high-strength reinforced ABS shell, fanless design, low power consumption, strong anti-interference capability, and supports remote WEB debugging and unified network management, making it particularly suitable for large-scale deployment.

Product Features:

● The phone case is made of high-strength reinforced ABS engineering plastic.

● Call-in ringtone frequency adjustable.

● Sealed structural design for dust, water, and moisture resistance.

● Phone and shell integrated design for anti-theft function.

● Protection rating up to IP66, suitable for harsh environments.

● Interface with联动functionality.

● Digital circuit design with strong anti-interference capability.

● Supports ultra-wide sampling rate of 20-8KHz.

● The ringer signal is indicated through both audio and visual means.

● Supports G.723, G.711, and G.729 audio codecs.

● Features busy tone detection.

● Wide Operating Voltage: DC 12V (9-18V) or AC 220V (100-240V).

● zuiRedial function for the subsequent phone number set.

● Numbered disk with luminescent indicators.

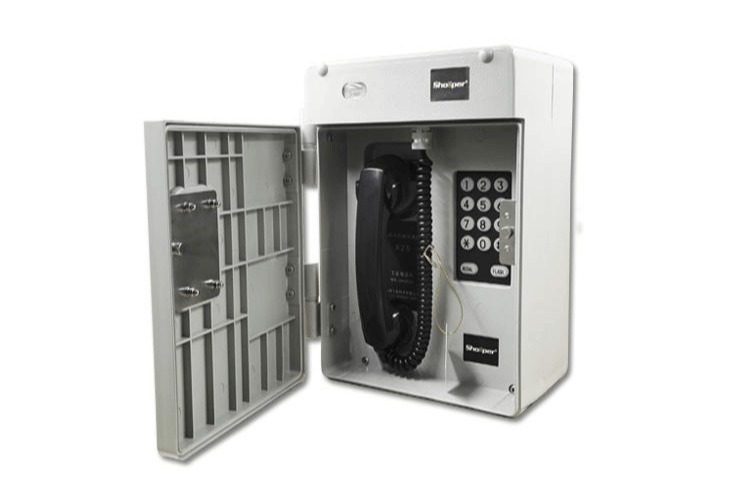

Description of each part (see Figure)

1. Door Cover 2. Handle 3. Ringer Signal Indicator Light 4. Handle Hanger 5. Numeric Keypad 6. Redial Key 7. Quick Disconnect Key (Flash) 8. Door Lock 9. Front and Rear Cover Mounting Screws 10. Ringing Speaker 11. Lead Wire, Phone In-line 12. Installation Backplate 13. Door Knob

Product Specifications:

Transmission Distance:100 meters radius

Transmission Cables:8-core network cable

Communication Standard:VoIP

Equipment Type:Outdoor wall-mounted

Ingress Protection (IP) Rating:IP66

Body Material:ABS Glass Fiber Reinforced

Equipment dimensions:335*235*170mm

Equipment Weight:5kg

Power Input:220VAC 50HZ

Overall Power Consumption:0/10W

Ambient Temperature:-30℃~+60℃

Environmental Humidity:0%~95%
