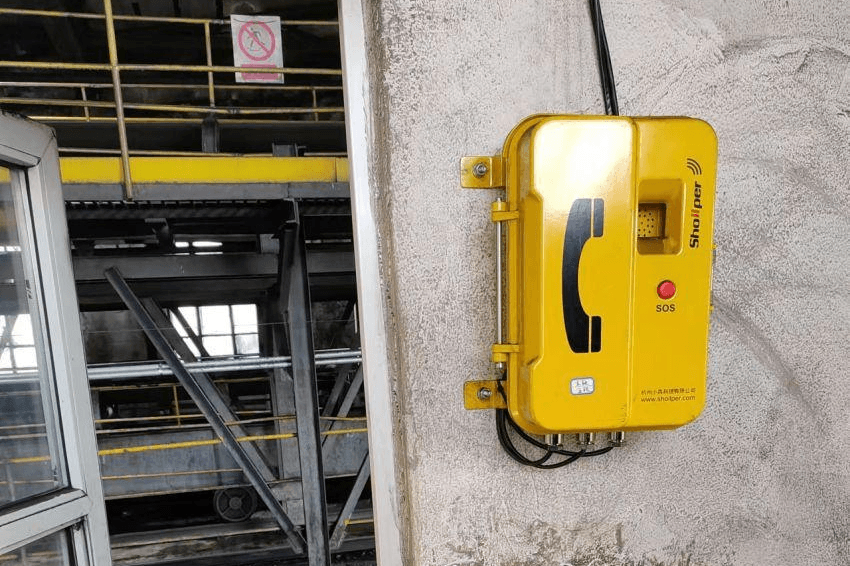

The SPHJ-D-A1 explosion-proof telephone is a new generation of explosion-proof communication system developed by Xiaobeng Technology based on the needs of industry users and in compliance with the new era's industry engineering standards. It is designed for hazardous areas with explosive gases or flammable dust, such as comprehensive pipeline corridors, petrochemicals, ports, docks, warehouses, stations, metallurgy, power plants, and oil drilling platforms, as well as harsh operational areas. It features reliable operation, excellent noise resistance, and clear sound quality.

Advantages and Features:

● The phone case is made of high-strength aluminum alloy material, anti-static.

● Sealed structural design for dust, rain, moisture, and corrosion protection.

● Protection rating IP67, suitable for harsh environments.

● This unit can be used in conjunction with systems such as programmable switches and voice gateways.

● zuiRedial function for the subsequent phone number group.

● Numbered dial with luminescent indicators.

● Phone and shell integrated design for anti-theft function.

● Ex d ib IIB T6 Gb

User Instructions

Upon hearing the phone ring, open the phone's cover, lift the handle, and you can talk to the other party.

When you need to make a call, open the phone's door cover, lift the handle, and dial after hearing the dial tone. Wait for the ringback when you hear it. If you hear a busy signal (beep... beep... beep), hang up and try again later.

Redial Key (RD) Usage

(1) For redialing: After picking up and hearing the dial tone, press this key. It is used for the redial function, which redials the last dialed phone number.

(2) Single-key Redial: After dialing is complete, if you encounter a busy signal, press this button. The phone will automatically perform the following actions: "Hang up", "Pick up", and "Redial the last number dialed."

Flash Disconnect Key (FL) Usage: Press the Flash Disconnect Key (FL) quickly when you hear a busy signal after dialing to hang up immediately, and you will hear the dial tone without needing to hang up and redial.

After each call, please ensure the handset is returned to its original position (the indicator light will be off when the phone is on hook), and securely close the door cover for normal operation of the phone.

The emergency call button and system emergency call number are set to match. Pressing the emergency call button on the handset can immediately dial the main switchboard. The default emergency call number is 7.

Function descriptions of all parts (see figure)

1. Door Cover 2. Handle 3. SOS Emergency Call Button 4. Handle Bracket 5. Numeric Keypad 6. Redial Key (RD) 7. Flash Disconnect Key (FL) 8. Door Lock 9. Middle Frame Fixing Screw 10. Ringing Speaker 11. Telephone Lead 12. Installation Backplate

Product Specifications:

Transmission Cables:2-core telephone wire

Communication Standard:Standard Simulation

Equipment Type:Outdoor wall-mounted

Ingress Protection (IP) Rating:IP67

Body Material:Aluminum alloy

Equipment dimensions:366*237*145mm

Equipment Weight:9.5 kg with packaging and bracket

Total Power Consumption:0/10W

Ambient Temperature:-30℃~+60℃

Ambient Humidity:0%~95%

Leader holeG1/2”
