Features and Benefits

1. Panels and buttons are made of high-quality SUS304 stainless steel, offering excellent resistance to damage. The product boasts great anti-vandalism, corrosion resistance, and waterproof properties. Particularly, it can be operated effectively in harsh environments.

2. Humanized key layout with surface characters and patterns created by chemical etching at an appropriate depth for better operation. The characters and patterns on the key surface can be customized according to customer requirements.

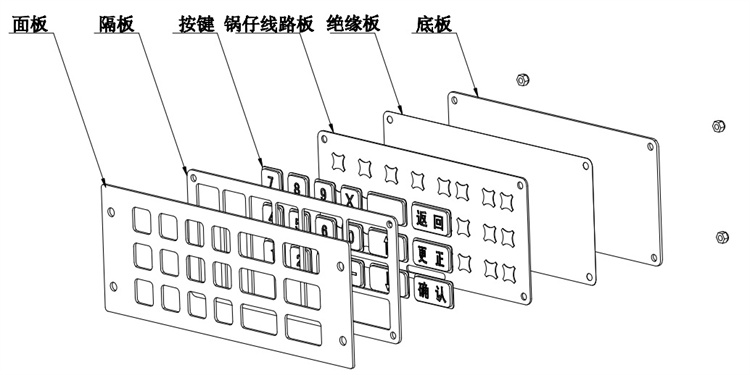

3. The keyboard features a unique enclosed film installation design, offering excellent waterproof and dustproof capabilities.

4. The keyboard PCB board is a double-sided gold plated board with metal potting lines, offering reliable contact.

5. High-quality SUS304 brushed stainless steel buttons with customizable painted characters and patterns.

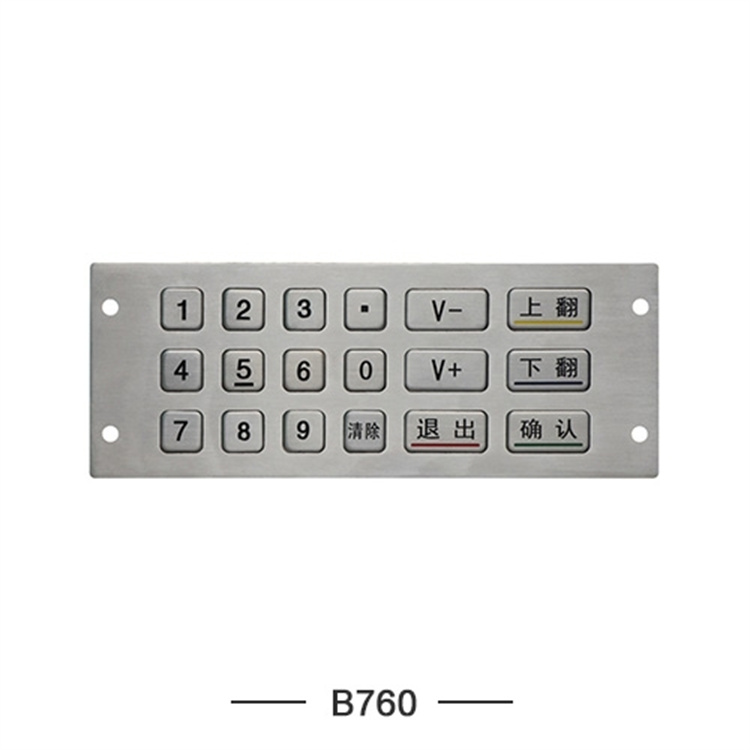

6.3x6 key layout, 10 numeric keys, 8 function keys. The key arrangement can be redesigned according to customer requirements.

7. Outputs include USB, PS/2, RS232, and XH connectors (optional).

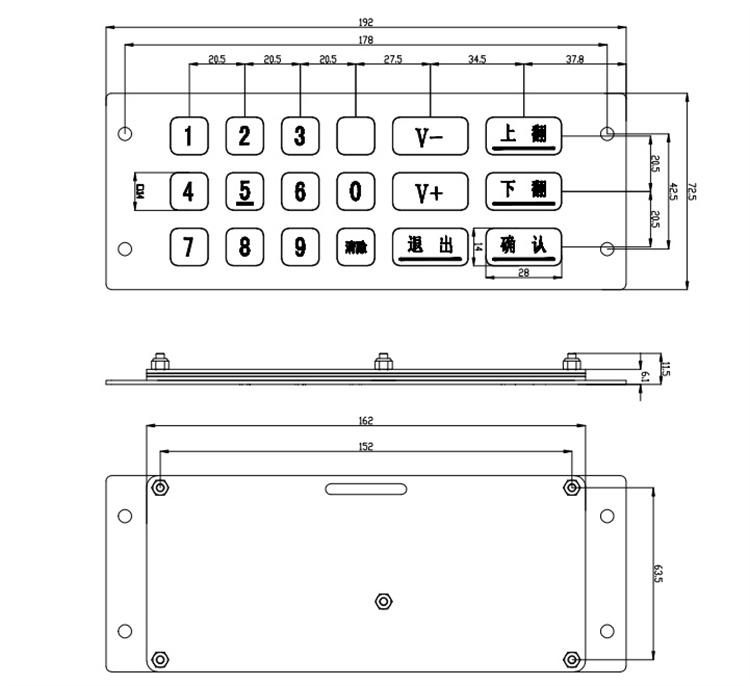

8. Easy and convenient embedded installation.

Packing Details

Outer Carton Dimensions: 51.5×31.5×12 cm

1 carton quantity: 20 PCS

After-sales service

In the absence of human damage, our company is responsible for free repairs within 1 year.
