4. Uniform and thorough heating sterilization.

5. Easy to control.

6. Simple equipment, advanced technology.

7. Enhance labor conditions and save on land area.

Microwave heating and sterilization processing objects:

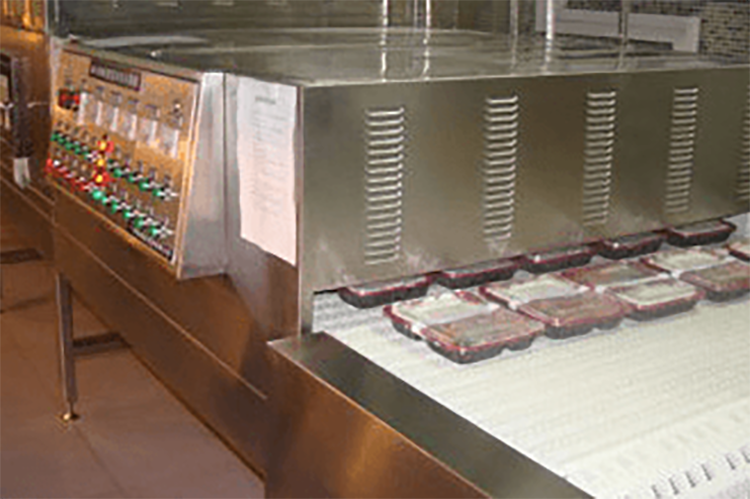

Microwave Lunch Box Heater is primarily used for warming up chilled box meals, and can also be used for heating items like buns and steamed buns.

Meal Box Microwave Heater Technical Specifications:

Model Number: HJ-60A

Input Power: 3-phase 5-wire 380V ±10% 50Hz ±1% (Neutral line must be the same size as the phase line)

Rated Input Power: 90 kW

Microwave Output Power: 60KW (Power segments adjustable)

Microwave Frequency: 2450MHz ± 50MHz

Dimensions: Length x Width x Height 13000 x 1400 x 1650 (mm)

Transmission Speed: 0.5-5M/min

Ambient Temperature: 0-40℃; Relative Humidity ≤80%

Quantity of Microwave Heating Boxes: 5

Designable according to yield, microwave feed-in method

Top Feed      Available for special design as per process requirements

Microwave Attenuator Opening Height: 80mm

Electric Cooling Method: Water Cooling

Equipment Microwave Leakage Standard - Complies with National GB10436-89 Standard

Equipment electrical safety standards comply with national GB5226 electrical safety standards

Transmission Power Rating: 1.5 kW

Variable Frequency Speed Control, Temperature Measurement Range and Accuracy: 0-350℃

Control Method        Button Control

Equipment Output: 1600 heated boxes of rice per hour.
