Advantages of Microwave Wood Drying and Shaping Equipment:

The product has good quality in drying and shaping without cracking.

2. Easy to control with convenient and flexible operation. Automatic control of heating time and drying temperature.

3. Time-saving with high yield.

4. Low energy consumption.

5. Low production intensity, minimal land usage.

6. Labor-saving, streamlining processes, especially easy to integrate with upstream and downstream operations into an automated line, reducing the number of handling times.

7. Environmentally friendly, clean and hygienic, with zero pollution and no issue of "three wastes."

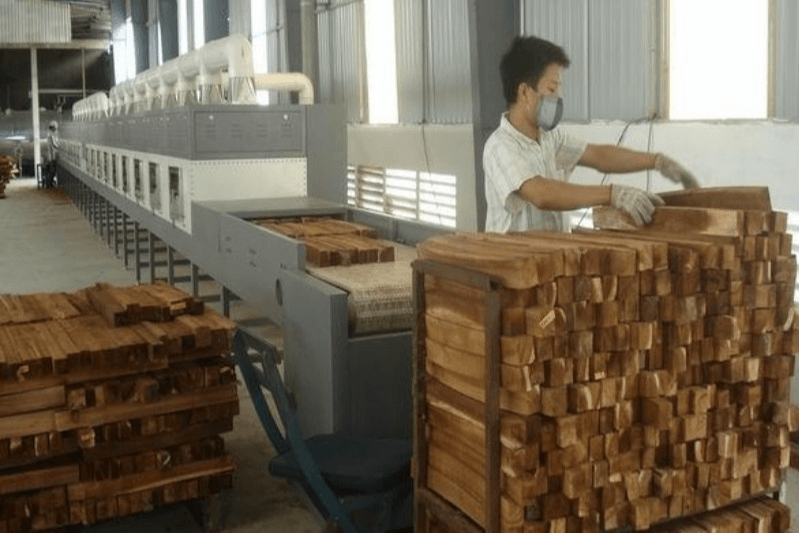

Wood microwave drying machine series, featuring an up-and-down energy feeding structure. Widely used in secondary drying treatment after wood processing, this equipment boasts high yield and continuous drying operations, making it an ideal device for modern enterprises to achieve quick wood drying and pest control; it is also suitable for drying after product assembly and for rapid curing of adhesives. (Such as solid wood doors, composite flooring, etc.) Applicable to medium and low density woods (such as Masson pine, cedar, birch, poplar, and furniture semi-finished products, solid wood doors, musical instruments, etc.) for secondary drying. If the moisture content is around 16% to 20%, using this equipment can dry it to below 12% in about 5 to 30 minutes. It is also suitable for pest control and mold prevention.

Technical specifications

Model: HJ-100A

Main Technical Parameters:

Input Voltage: AC380V ±10%. 50Hz

Frequency: 2450 ± 50 MHz

Microwave Output Power: 100 kW (adjustable)

Desiccation Rate: 80 kg/h

Ambient Temperature: 5-40°C

Relative Humidity: ≤80%

Transmission speed: 0.5-5m/min (adjustable) with automatic deviation adjustment structure

Approximate dimensions (length x width x height): 21,000 x 1,100 x 1,700 mm

Automatic temperature control, this equipment uses water-cooled microwave tube

Microwave Leakage: Complies with national standard GB10436-89 (≤5mw/cm²)
