Ceramic membranes are porous asymmetric membranes made by high-temperature sintering of materials such as alumina and zirconia through special processes.Ceramic membrane equipment is a "crossflow filtration" type of solid-liquid separation process. Under pressure, the feed liquid flows within the membrane tubes, with small molecules permeating the membrane while large molecules and solids are retained in the membrane to form a concentrated liquid, achieving the objectives of separation, concentration, and purification of fluids. The filtration precision of ceramic membranes encompasses microfiltration and ultrafiltration, with microfiltration membrane pore sizes ranging from 50nm to 1.4m, and ultrafiltration membrane precision ranging from 8KDa to 50KDa. Different pore-size membranes can be selected as needed to achieve clarification and separation. Ceramic membranes feature high-temperature resistance, chemical corrosion resistance, high mechanical strength, microbial resistance, high flux, good cleaning recovery, and long service life. They are currently used in fermentation liquid clarification, oil-containing wastewater treatment, MBR for waste leachate, oilfield water injection, juice, fruit wine, vinegar, and more.
I. Function and Application of the Experimental Machine

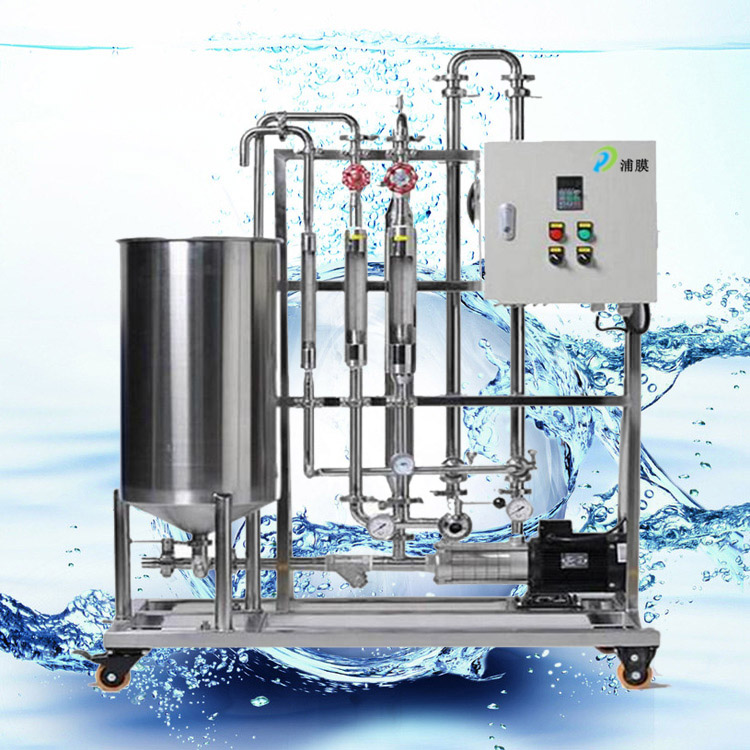

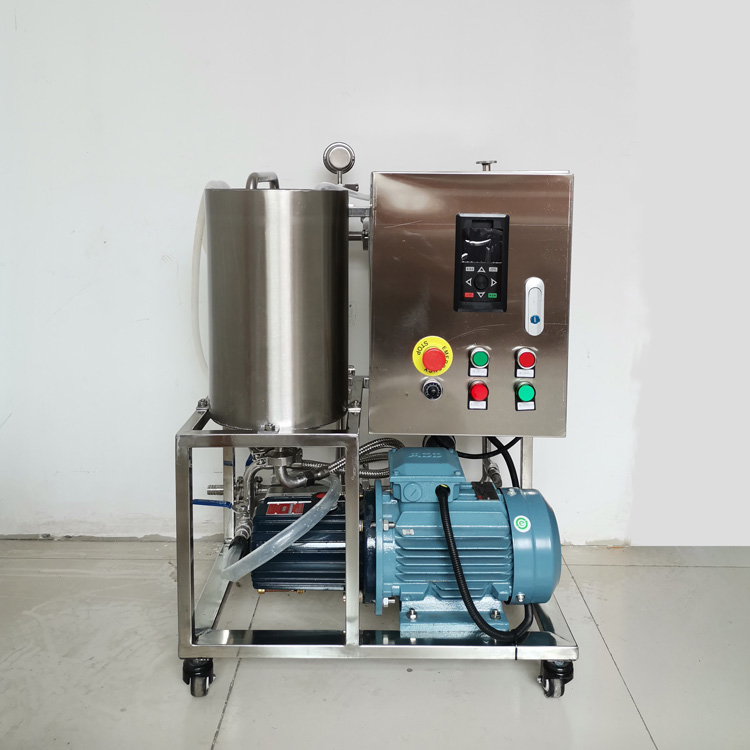

This unit is a small-scale membrane separation device for laboratory use, including ultrafiltration, nanofiltration, and reverse osmosis, and can be widely applied in the separation, concentration, and purification of substances; the industrialization concept runs through the design process of the equipment, suitable for researchers to explore various process parameters required for the industrial scaling-up of the equipment.
Two,Features of the Experimental Machine
The overall structure is compact, operation is simple, stability is excellent, the appearance is aesthetically pleasing, and the entire unit is made of stainless steel.
The power section utilizes a hydraulic diaphragm pump, offering high lift and stable pressure with reliable performance.
● The system high-pressure piping is made of sanitary-grade stainless steel, offering high pressure resistance and corrosion resistance. Connections are made with sanitary grade clamp-style fittings, ensuring convenient and reliable assembly.
The system includes pressure and temperature protection devices. The pressure protection device can automatically alarm and shut down when the pressure exceeds the safe limit; the temperature protection device can automatically alarm and shut down when the temperature goes beyond the limit; the safety filter device can prevent system damage caused by the entry of solid particles.
The equipment employs various technologies identical to production-line equipment in controlling parameters such as pressure, temperature, flow, and flow rate, making the separation work in the laboratory more akin to the actual industrial situation, which is conducive to the industrialization of the process.
● The equipment utilizes variable frequency control, effectively expanding its application range; the system's processing capacity is 0-150L/hour (which is related to the properties of the material), with a circulating volume of only 350-400ml, making it particularly suitable for laboratory use.
III.Test Machine Specifications
● Working Pressure: adjustable from 0-40bar, capable of meeting the separation requirements for ultrafiltration, nanofiltration, and reverse osmosis of materials.
● Operating Temperature: 0-50°C, equipped with a small tube bundle heat exchanger for easy temperature control and adjustment.
The system's circulation volume is approximately 350ml.
● Specialized imported diaphragm pump for material handling, with high head, stable pressure, and reliable performance.
● Membrane Core: Imported rolled or hollow membrane elements, specifically designed for material concentration and separation; features include acid and alkali resistance for cleaning, long service life, and anti-pollution capabilities.
● Narrow membrane core pore size distribution, high retention accuracy
Equipped with high-temperature and high-pressure automatic shutdown protection device.
● Cylindrical tank: Made of SS304 material, highly resistant to corrosion; conical bottom, significantly reduces the circulation volume.
Piping System: Utilizes SS316 stainless steel sanitary pipes for easy disassembly and maintenance.
● Instruments and Electrical Systems: Equipped with temperature, pressure, and flow display instruments for accurate and convenient readings; electrical components and pressure sensors are all selected from imported brands, ensuring safe, stable, and reliable operation of the equipment.
Four: Experimental Machine Specifications and Model:
Our series of equipment can be categorized into dozens of specifications and models, based on different filtration accuracy and types of membrane tubes (ceramic or ceramic composite membranes), catering to the varying needs of different customers, systems, technical requirements, and treatment volumes.
For detailed parameter information, please contact Quankun Pufilm Company's sales. Jiangsu Pufilm Environmental Protection Technology Co., Ltd. is professionally committed to the environmental protection industry. It boasts a team of highly qualified engineering and technical personnel. Our main products include laboratory wastewater treatment equipment, medical wastewater treatment equipment, membrane separation equipment, and pure water equipment manufacturing and engineering. In addition to selling various water treatment equipment, the company also has a group of engineering technicians specializing in the design, installation, and debugging of large-scale water treatment projects. We can provide solutions and implement engineering projects tailored to the requirements of customers from different industries, offering water treatment production lines and turnkey projects to meet various needs.
