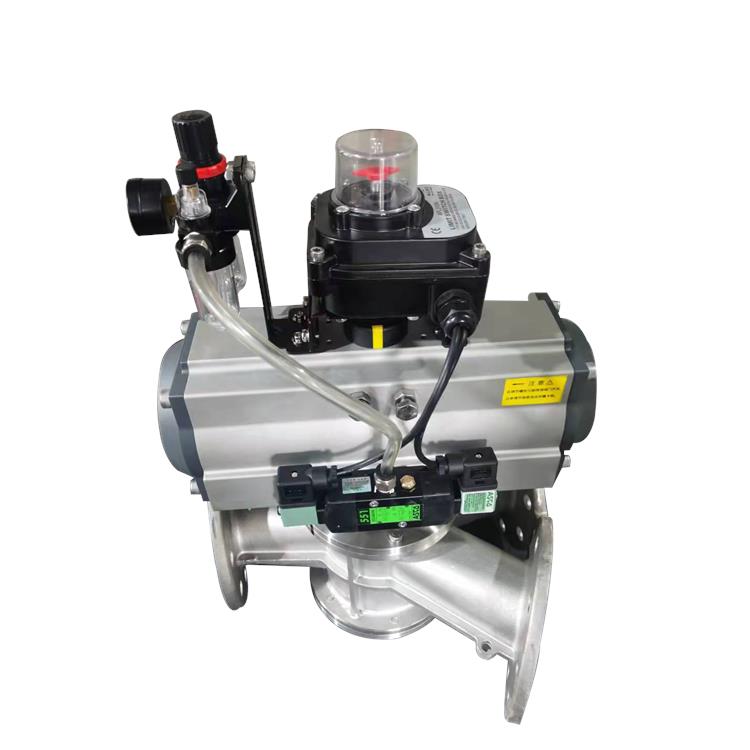

Three-way directional valves, also known as three-way changeover valves or directional valves, are devices used in the conveying systems of solid materials (powders, granular materials, powdery granules, sheet-like materials, etc.) to switch the flow direction of materials in pipes. Their completely sealed structure is suitable for outdoor environments.
Product Features:
Suitable for switching between powder and granule conveying.
The unique structure accommodates clients' requirements for material changeover.
The overall structure is robust and compact, exquisitely beautiful.
Multiple angle designs to meet the switching needs of angle piping.
The conveying channel is smooth and glossy, ensuring material flow.
Polishing accuracy up to 400#, suitable for conveying food-grade and pharmaceutical-grade materials.
Choose from a variety of base materials to meet customer needs: stainless steel (SS304, SS304L, SS316, 316L), carbon steel, etc.
Multiple drive methods are available: manual, pneumatic.
A robust pneumatic control system enhances automation levels and ensures operational reliability.
Key Parameters:
Working Pressure: Atmospheric Pressure/Low Pressure
Main Specifications: DN50~800
Pipe Fitting Angle: 22.30°, 30°, 45°, 60°, 90°
Drive Method: Pneumatic, Manual
Operating Temperature: -20℃ to 500℃
Structure Types: Ball plug, Rotating plate, Plunger, Swing plate
Applicable Medium: Solid Materials (Powders, Granular Materials, Pellets, Flakes, etc.)
Main Materials: SS304, SS304L, SS316, 316L, WCB, QT500, etc.
