Parameters
Model: WQZ400D
Quantitative Range: 0.2-7 grams
Quantitative Precision: ±1% per Gram
Repeatability Accuracy: ±1%
Pressure Resistance: 30 Mpa
Rated Pressure: 10-20 Mpa
Pressure Requirement: 4 ~ 6 kg/cm²
Tank Capacity: 40L
Pressure Ratio: 60:1
Output Rate: 300-500g per minute
Tube Length: 2 meters
Gas Source Pressure: 4-8 Kg/cm²
Butter output pressure: 180-480 Kg/cm²
Medium: 0-2#-3# lithium, calcium-based grease.
Marking Range: 0.2-7g
Long feeding distance up to 4M

Manual switch, foot switch, photoelectric sensor switch可选

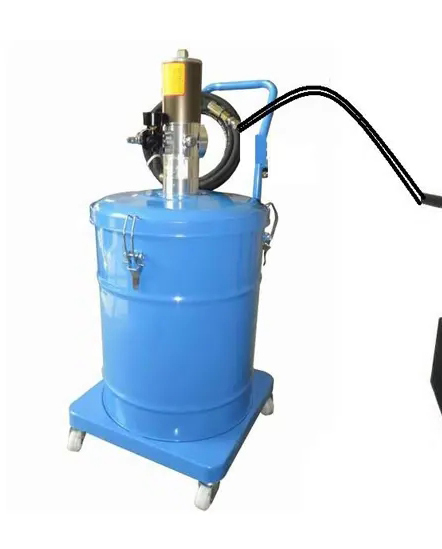

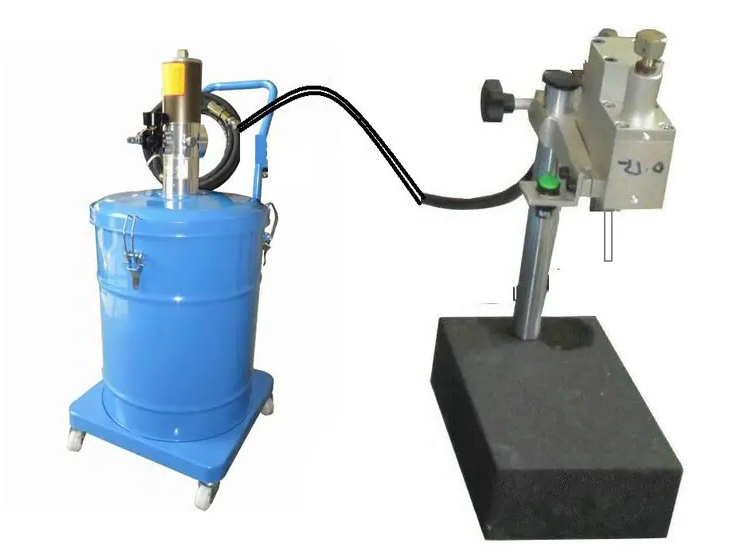

1. Portable pneumatic grease dosing kit, capable of fitting entire 10-30 kg oil drums inside or pouring loose oil into the drum.

2. Volumetric metering cylinder for precise filling, easy to operate. Adjustable metering cylinder.
3. The grease gun is equipped with a powerful 60:1 pump, 2-meter high-pressure oil hose, and a rotatable high-pressure grease applicator. Driven by an air source and controlled by pneumatic components, it boasts stable performance, fast lubrication, and a wide range of applications.

a. Bearing production line, grease is added to sealed bearings before the pressure cover.
b. Automotive half-axle production line, half-axle bearing grease filling. Electric tools, ports, construction and engineering machinery, industries requiring lubrication with precise grease dosing.
c. Lubrication of mechanical transmission systems. Quantitative application of grease to various types of machinery and equipment.
d. Quantitative topping during the conversion of large drums of oil into small packaged sizes.
e. Engine assembly, ball mill gears, universal joints, mechanical components
